I. Nerve-Nerve Synapses, cont. -- What determines if a nerve impulse will be passed on to the next neuron? For nice overall pictures see Sadava 44.13 or Becker fig. 13-19  & 13-21 (9-21 & 9-23). Some of this is review, but is included for clarity.

    A. Presynaptic Side -- Transmitters  -- See Sadava Table 44.1 & Becker fig. 13-20 (9-22).

1. One major type of transmitter per synapse (released from pre-synaptic side)

a. In CNS, many diff. transmitters. Usually amino acids or their derivatives. Major ones are glutamate (excitatory) & GABA (inhibitory).

b. In PNS usually norepinephrine (NE) or acetyl choline (AcCh).

2. One transmitter per Neuron. Usually only one major transmitter released by any neuron. Therefore one major transmitter released -- the same one -- at all synapses made by that neuron.

3. Release of Transmitter:

a. Location of Transmitter: Neurotransmitters are in vesicles (except for gaseous NTs)

b. Trigger for release: Action potential (AP) stimulates Ca++ channel opening in plasma membrane, raising intracellular Ca++;

c. Exocytosis: High intracellular Ca++ promotes exocytosis and release of transmitter.

4. Effects of transmitter (on target) can vary. Some transmitters are always excitatory or inhibitory; other transmitters vary in effect (depends on if you have one or more type of receptor for that transmitter -- see below.)

5. Getting rid of transmitters

a. Transmitter doesn't remain in synaptic cleft for long.

b. Different methods for getting rid of dif. transmitters

(1). Diffusion away from cleft

(2). Destruction by enzymes in cleft. For ex, acetyl choline esterase (AcChE) in cleft breaks up AcCh (Choline is reused). See Sadava fig.44.14

(3). Reuptake by transporters (secondary active transport) -- NE, serotonin removed from cleft by reuptake. (Endocytosis recovers membrane; transporters recover transmitters.)

c. Many drugs affect release/fate of transmitters; for ex.

(1). Prozac prevents serotonin reuptake -- transmitter stays around longer more stimulation.

(2). Malathion (insecticide) & nerve gas block AcChEsterase continuous stimulation spasms

    B. Post Synaptic Side -- PSP's = post synaptic potentials = small change in potential due to release of transmitter

1. Can be inhibitory (NT generates an IPSP) or excitatory (NT generates an EPSP)

a. Inhibitory -- causes hyperpolarization or stabilizes existing negative polarization due to opening of K+ or Cl- channels. Either K+ goes out or Cl- comes in.

b. Excitatory -- causes depolarization due to opening of cation channels; Na+  in>> K+ out.

c. Terminology -- a single IPSP or EPSP usually refers to the small change in potential due to release of transmitter caused by a single AP. The total PSP depends on the algebraic sum of multiple IPSP's and EPSP's as explained below.

2. Any given synapse is excitatory or inhibitory -- What determines it?

a. Receptor is crucial

(1). One type of receptor for neurotransmitter at each synapse.

(2). Receptor determines which kind of synapse it is -- excitatory or inhibitory.

(3). Same neurotransmitter can be excitatory or inhibitory at different synapses.

(4). Receptor can be

(a) ionotropic (direct) -- receptor is itself an ion channel. Faster response; Ligand binding always opens channel. For examples see Sadava 44.17 or Becker 13-23 (9-25). Also see many pictures in both books of neuromuscular junction, or handout 13.

(b) metabotropic (indirect) -- receptor uses GPCR & 2nd messenger.  Response is slower, but effects can be more varied & more extensive. Can be used to open or close ion channels. See Sadava 44.16.

(5) Agonists and antagonists are used as common tools to study receptors for both NTs and hormones. Some receptors named by their common ligand and most common agonist or antagonist. (For example, the nicotinic acetyl choline receptor. Ac Ch = NT; nicotine = agonist.) For more examples, see table at end of notes.

b. Overall: One receptor/neurotransmitter pair per synapse.

3. Features of Total PSP's (To compare to AP's)

a. Total PSP's are graded  -- size is proportional to stimulus (as with receptor potentials, see below). Size is not all or none. (Unlike action potentials.)

b. PSP's are local -- die out if don't reach threshold. (Not regenerated like AP's.)

c. PSP's are caused by opening/closing of ligand gated channels. (What kind of channel is needed for AP's?)

To review IPSP's and EPSP's try problem 8-10.

    C. Post Synaptic Side -- Summation  -- See Sadava fig. 44.15 or Becker 13-24 (9-26 & 9-27).

1. Inputs (IPSP's & EPSP's) to cell body/dendrites are summed -- changes spread around cell body to initial segment (or die out).

2. No AP in cell body. No voltage gated channels in cell body so no AP generated there

3. Axon Hillock. Voltage gated channels begin at  initial segment (also called the "trigger zone" or axon hillock) so AP starts there. See Becker fig. 13-14 (9-16) or Sadava 44.15.

4. Inputs summed over space and/or time -- need to depolarize past threshold at axon hillock to AP. See handout 15A, bottom.

a. Spatial summation: Multiple EPSP's delivered at different spots can add up AP

b. Temporal summation: Multiple EPSP's delivered close enough together in time can add up AP

c. Why you need summation:

    (1). A single EPSP is not enough to AP

    (2). IPSP's & EPSP's are summed: net effect depends on both inhibitory and excitatory input. Remember there are about 1000 synapses (inputs) on body & dendrites of average neuron. See Becker fig. 13-24 (9-27). (See circuits below for how you use this.)

Review Problem 8-8, parts A to H, and recitation problem 8-2.

II. Sensors See Handout 15A (top). Sadava has a whole chapter on Sensory Systems. (Chapter # depends on which edition of the text you have.) Only a few general principles discussed here. See Sadava for examples & details.

    A. The Problem: How does a small stimulus (from the environment) reach the nervous system?

1. The Question: Where does input come from, if not from another neuron? How do you get input from the environment -- from sight, sound, etc. -- and send it to the CNS?

2. The Short Ans:

Touch, hearing, etc., produce a small response = change in polarization by opening/closing channels in special cells (receptor cells or sensors).

Change in opening of channels (& therefore change in polarization) is proportional to stimulus.

The small change in polarization opens voltage gated channels which generates a big response -- an AP. (The 'big bang' or the 'toilet flush,' so to speak.)  See left-most case on the 'big bang' handout.

    B. Receptor Proteins

1. Special (Sensory) cells contain receptor proteins for stimuli (pressure, light, heat, chemicals, etc.).

2. How do protein receptors detect stimuli?

a. Stimuli Change in conformation of receptor   open or close channels in membrane   change in polarization of membrane.

b. How are channels opened or closed? See Sadava 45.1.

(1) Directly  -- receptor is part of a channel = an ionotropic receptor. Examples: receptors for mechanical stimuli (touch, hearing, balance), & temperature (heat/cold).  Receptor changes shape and channel opens.

(2) Indirectly -- receptor is not part of a channel = a metabotropic receptor. Change in conformation of receptor activates a G protein. G protein or 2nd messenger opens/closes channel.  Examples: receptors for chemicals (taste, smell, etc.), electromagnetic radiation (vision).

    C.  Receptor Potentials

1. Response to stimulus is graded. Stimulus local graded response. The more stimulus, the more channels open (or close), and the bigger the graded potential (bigger depolarization or bigger hyperpolarization) in the sensory/receptor cell.

2. Terminology -- graded response in receptor/sensory cell is called a generator potential or receptor potential.

    D. Receptor Cells. Two types of Sensory Cells (aka receptor cells) = special cells with molecular receptors for detecting stimuli

1. Modified neuron  -- sensory cell is a modified neuron capable of generating AP itself. (See Sadava 45.2 & below for an example.)

2. Cell that cannot generate an AP itself

a. How get an AP? Sensory cell releases transmitter and triggers AP in next cell (a neuron). See Sadava 45.5 for an example.

b. Type of cell. This type of sensory cell can be a modified neuron or epithelial cell.

Question to ask yourself: What type of channels does a cell need in order to generate an AP?

    E. How Does Graded response generate an AP?  --  Note there are two issues here: How many cells? (Either one or two) and whether receptor is ionotropic (direct) or metabotropic (indirect). See handout 15A.

1. AP is in modified neuron -- one cell system. Graded potential (generator potential*) triggers AP in same cell (if stimulus is over threshold) input to CNS.

a. Example #1 -- direct (ionotropic receptor) -- stretch.  Sadava 45.2 for example.

    Stimulus  = stretch on nerve endings   open channels   depolarize to threshhold   AP (in sensor cell itself).

b. Example #2  -- indirect (metabotropic receptor) -- smell (olfaction). See Sadava 45.4.

    Stimulus = Ligand (odorant) Receptor G protein adenyl cyclase cAMP up open cation channel (cyclic nucleotide gated channel) depolarize cell AP.

Question: Where will the action potential start? In what part of the cell? See Sadava 45.2

2. AP is in separate (post-synaptic) cell -- two cell system

a. Graded potential (receptor potential*) triggers release/inhibition of transmitter by receptor/sensory cell.

b. Amount of transmitter released by sensory cell is proportional to stimulus.

c. Transmitter generates IPSP or EPSP in neuron (next cell = post synaptic cell).

d. Transmitter triggers AP in post synaptic neuron if stimulus is over threshold input to CNS.

e. Examples: vision & taste (indirect); balance &  hearing (direct).

* In older editions of Sadava, the terms "generator potential" and "receptor potential" are used to refer to these two different cases respectively. Most texts stick to "receptor potential" or use the two terms interchangeably.

Which type of receptor cell are you dealing with in problem 8-16?

    F. All stimuli (whatever the modality) give same message to CNS (= AP's). If AP is all or nothing, how do you know which stimulus it was? And how much?

1. Number, frequency of AP's indicate length (duration) and strength (intensity) of stimulus.

2. Wiring (what part of brain is stimulated) = labeled lines = indicates location of stimulus and type (modality) of stimulus  -- taste, stretch, etc. If you get a punch in the eye, you set off light receptors. For a less violent example, take a very sharp pencil and tap your upper lip. What sensors did you trip off? (For contrast, tap your arm.)

To review sensors, try Problem 8-16 . To review electrical communication overall, try 8-15.

III. Circuits -- how nervous system is organized

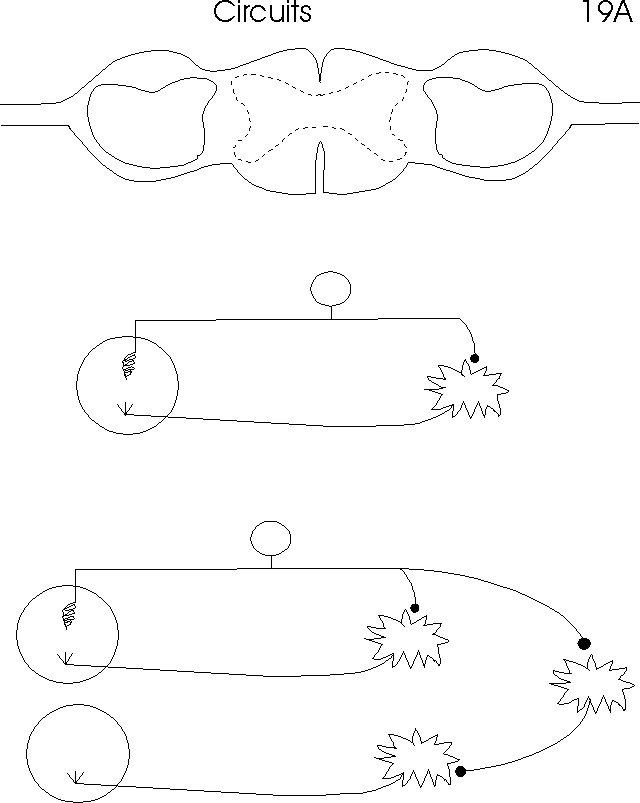

    A. Simple circuits  -- see handout 15B, bottom or Sadava 46.3

1. One synapse, 2 neurons -- monosynaptic circuit -- how sensory neuron signals an effector.

Live Lecture got to here. Rest will be covered next time.

2. Circuit with multiple synapses -- how antagonistic muscles are controlled. (Signal to skeletal muscle is always +; a signal (+) means contract; no signal means relax.)

3. Role of brain -- adds up/down (as vs. in/out) component

4. FYI: Where is all this located? see Sadava 46.3; will not be discussed in class.

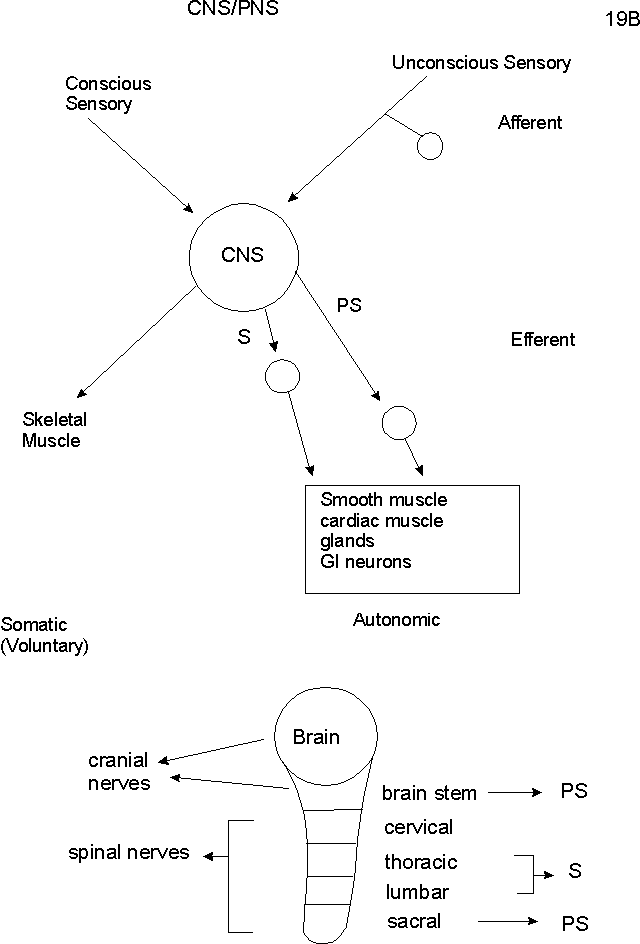

    B. How is NS organized overall? See handout 15 B, Becker 13-1 (9-1) or Sadava 46.1

1. CNS

a. CNS = brain + spinal cord

b. Interneurons. Most neurons of CNS are interneurons (99%)

c. White matter = axons

d. Grey matter = cell bodies, interneurons, and dendrites

2. PNS -- Names of Divisons

a. Afferent vs Efferent.

(1) Afferent = carrying info into the CNS
(2) Efferent
= carrying info away from the CNS

b. Efferent subdivided into: Somatic vs autonomic

(1) Somatic = controls skeletal muscle
(2). Autonomic = controls everything else

c. Autonomic subdivided into: Parasympathetic (PS) vs Sympathetic (S)

Try problem 8-8, part I.

    C. How do PS and S co-operate? (See Sadava 46.10) What do they do?

1. What do they innervate?

a. Many organs innervated by both

b. Some organs innervated (stimulated) by only one

(1). liver, sweat glands -- S only

(2). tears -- PS only

2. What results does stimulation produce?

a. Not always S excites; PS inhibits. Ex: salivation -- S inhibits; PS excites

b. Usually:

(1). S response needed in a crisis

(2). PS response needed in relaxed state.

c. Examples:

(1). S heart rate up; liver releases glucose; bladder relaxes (to hold more);

(2). PS heart rate down, digestion, salivation up.

    D. General Set up of wiring of efferent PNS -- see handout 15A (Any details not done today will be done next time.)

1. First neuron -- same in Somatic and Autonomic.

a. Location -- body in CNS

b. Neurotransmitter -- releases AcCh

c. Receptor -- AcCh receptor (on effector/next neuron) is nicotinic

2. Second neuron (post ganglionic) -- found in autonomic only

a. Location -- Body in ganglion

b. Neurotransmitter

(1). Parasympathetic -- releases AcCh

(2). Sympathetic -- usually releases NE

c. Receptor (on effector)

(1). AcCh (cholinergic) receptor is muscarinic;

(2). NE (adrenergic) receptor can be alpha or beta (see table below)

d. Adrenal medulla second neuron. Medulla composed of many neurons with short axons. Release neurotransmitter (mostly E) from end of short axons (within medulla). E goes into blood, so E acts as neuroendocrine instead of neurotransmitter.

Try problem 8-8 part J.

    E. Major Types of Receptors in the PNS -- Reference & summary

Basic Type of Receptor

Transmitter

Detailed Type of Receptor

Mechanism

Agonist

Antagonist

Typical effect

Cholinergic
**

Acetyl Choline

Nicotinic

Direct (It's a Na+/K+ channel)

Nicotine

Curare

Contract skeletal muscle

Cholinergic

AcCh

Muscarinic

Indirect; 2nd messenger & effect varies

Toxin from Amanita muscara (muscarine)

Atropine

Slow heart beat

Adrenergic

Epinephrine (adrenalin) & NE; NE> E

Alpha*

Indirect;  2nd messenger & effect varies





Contract smooth muscle

Adrenergic

Epi. & NE; E> NE

Beta*

Indirect; cAMP is 2nd messenger

Asthma drugs

Beta blocker

Relax smooth muscle (bronchodilates); increase heart beat

*Both alpha and beta have subtypes that differ in location, mechanism & effect; same receptors used for epinephrine acting as a hormone or neurotransmitter.

** This is the receptor at the neuromuscular junction. See Becker fig. 13-23 (9-25). This is the AcCh receptor people mean when they talk about "THE" acetyl choline receptor.

Look at problem 8-16, part C. Assume you are looking at a standard synapse between two nerves that uses AcCh as a transmitter. What are the answers to parts 1-5? What effects will you expect on transmission at a standard synapse? (Note -- this problem as written does not refer to a standard synapse between two nerves. However the answers in the back of the book are still okay except for part 4. What is the right answer to part 4 for a standard synapse?)

Next time: Wrap up of Nerves; How do nerves and muscles work to give contractions?
