Construction Documents
Level 1 Floor Plan, Document A1.04
-
-
Level One Floor Plan
-
-
Level 1 Floor Plan
Full Document: A1.04
0.4MB JPEG
-
-
Level 1 Floor Plan
Full Document: A1.04
0.7MB Compressed TIF
North Elevation, Document A2.1
-
-
North Elevation
-
-
North Elevation
Full Document: A2.1
0.2MB JPEG
-
-
North Elevation
Full Document: A2.1
0.4MB Compressed TIF
Drum Wall Elevation, Section, Details, Document A2.19
-
-
Detail - Ring
-
-
Detail @ Duct
-
-
Drum Wall Elevation
Full Document: A2.19
0.4MB JPEG
-
-
Drum Wall Elevation
Full Document: A2.19
0.9MB Compressed TIF
Low Roof Details, Document A2.22
-
-
Expansion Joint
-
-
Expansion Joint Curb
-
-
Vent thru Roof
-
-
Mech. Equipment Curb
-
-

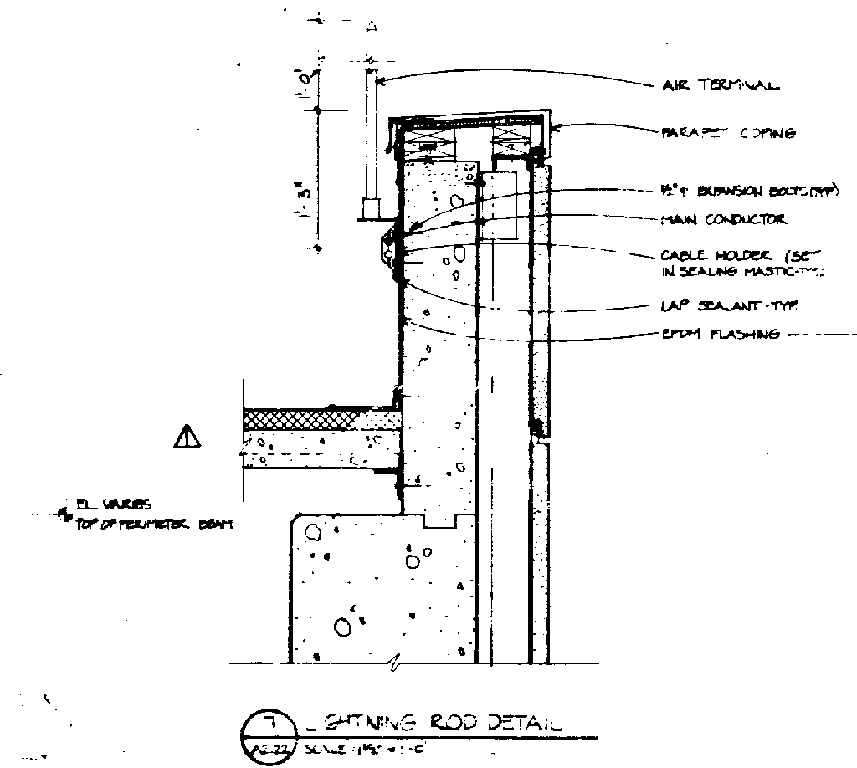

Lightning Rod Detail
-
-
Scupper @ Metal Panel Detail
-
-
Low Roof Details
Full Document: A2.22
0.4MB JPEG
-
-
Low Roof Details
Full Document: A2.22
0.8MB Compressed TIF

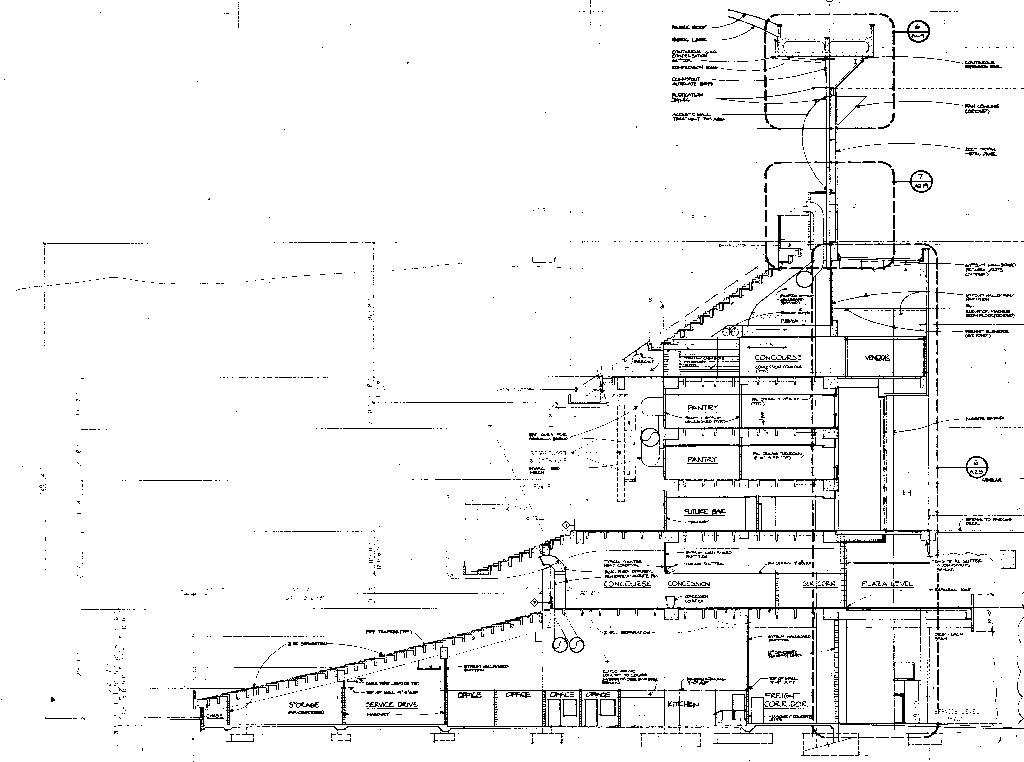

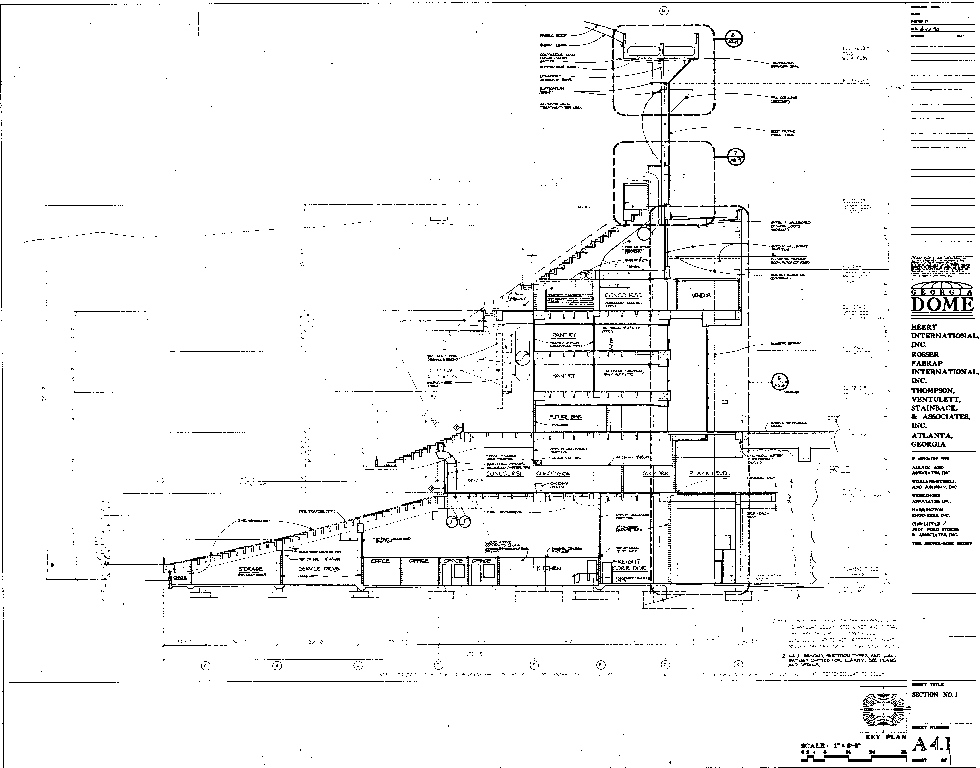

Section 1, Document A4.1
-
-
Section
-
-
Section 1
Full Document: A4.1
0.2MB JPEG
-
-
Section 1
Full Document: A4.1
0.5MB Compressed TIF

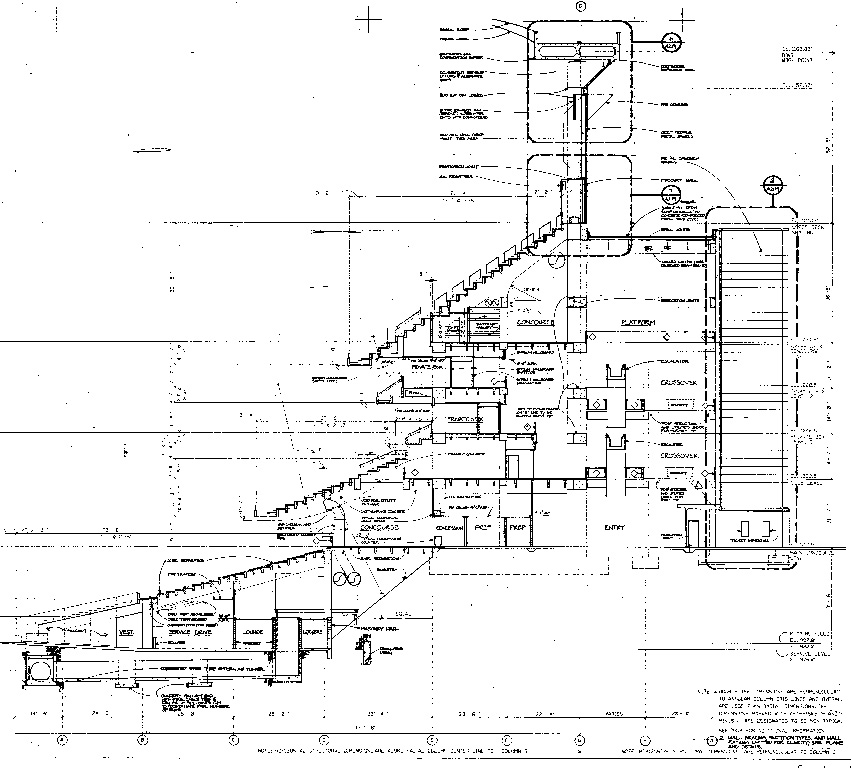

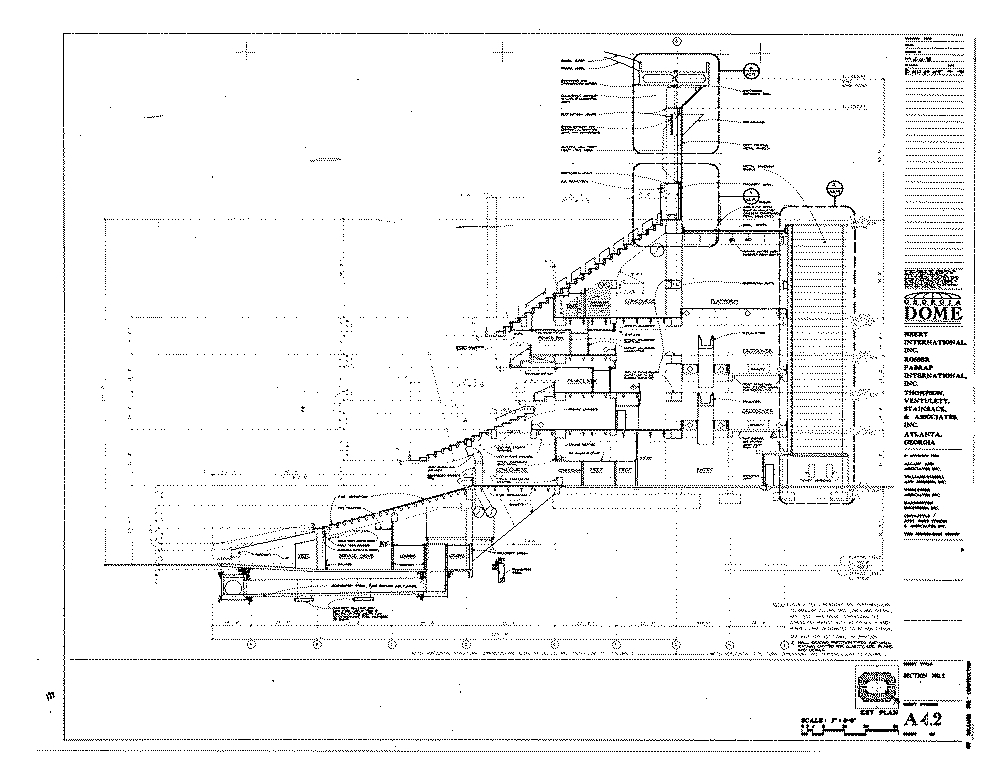

Section #2, Document A4.2
-
-
Section #2
-
-
Section #2
Full Document: A4.2
0.4MB JPEG
-
-
Section #2
Full Document: A4.2
0.6MB Compressed TIF
Ring Beam Section and Details, Drawing S-0903
-
-
Section 1
-
-
Section 2
-
-
Section 4
-
-
Ring Beam Section and Details
Full Document: S-0903
0.5MB JPEG
-
-
Ring Beam Section and Details
Full Document: S-0903
1.2MB Compressed TIF

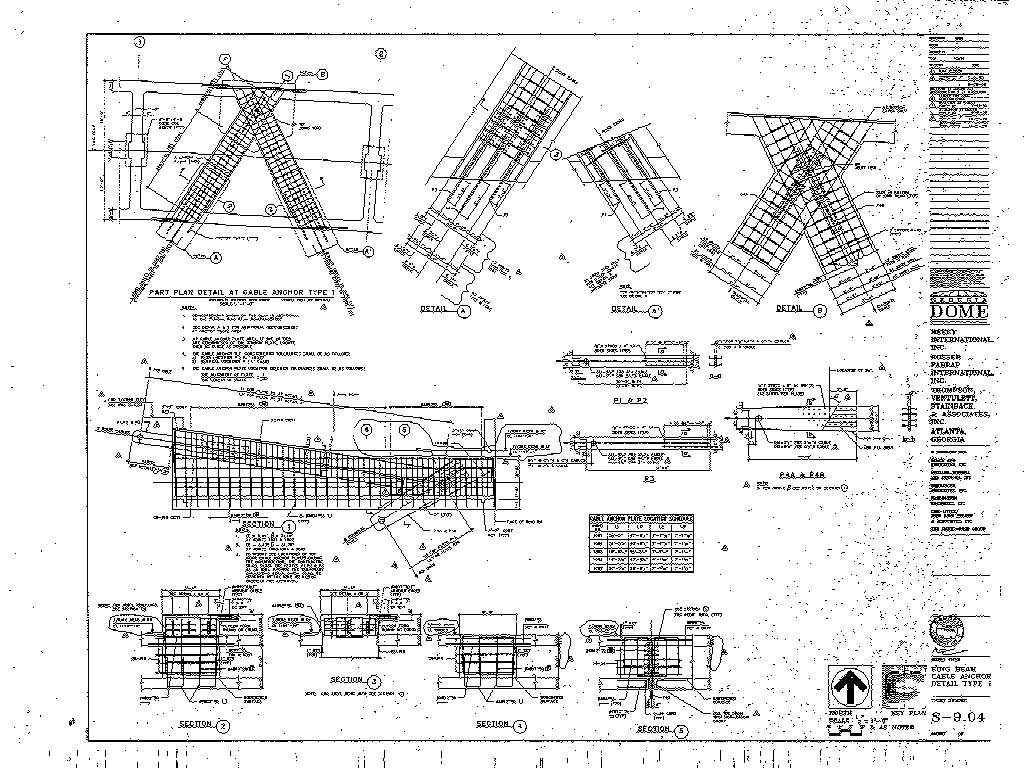

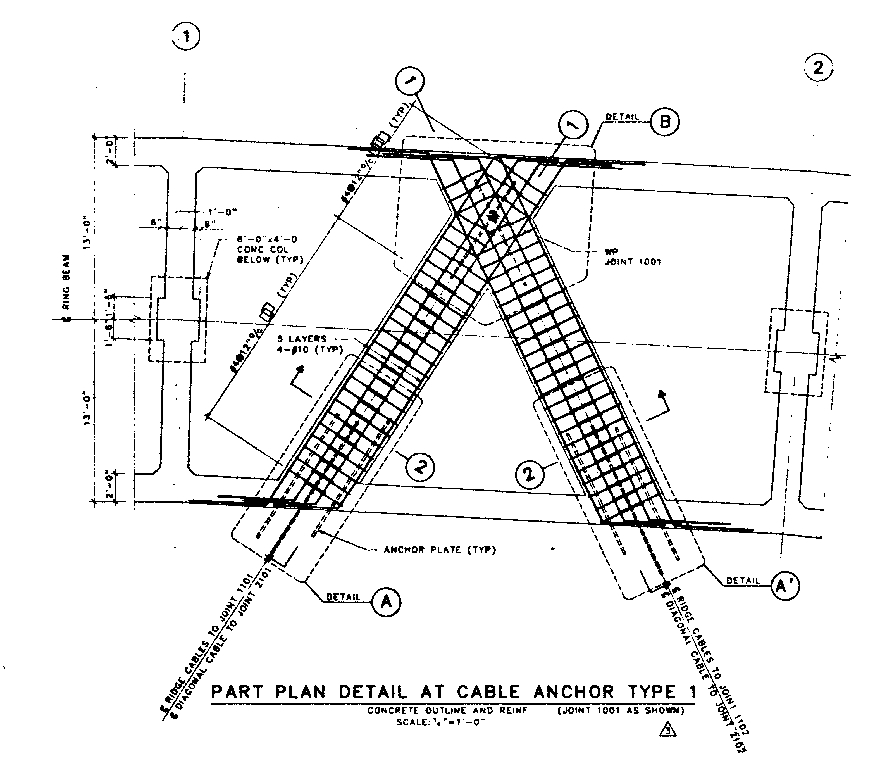

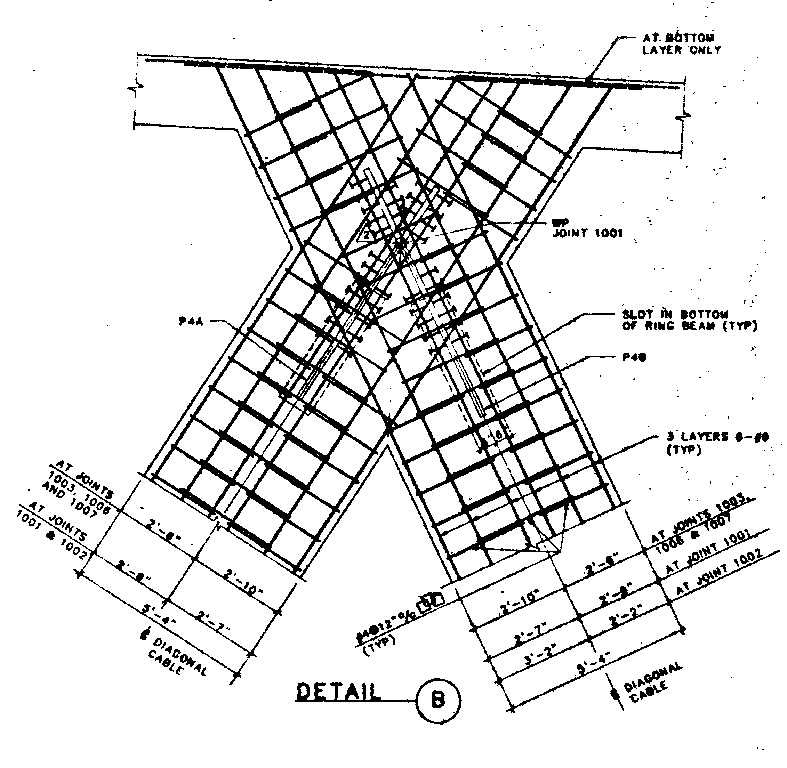

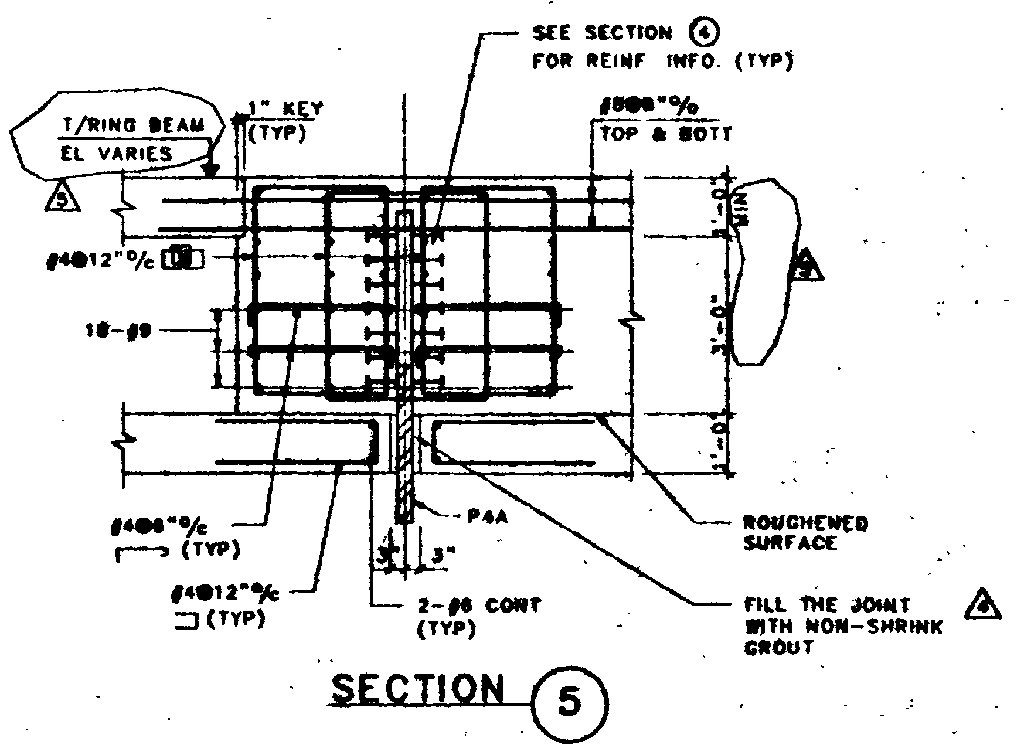

Ring Beam Cable Anchor Details - 1, Drawing S-0904
-
-
Part Plan Detail
-
-
Detail B
-
-

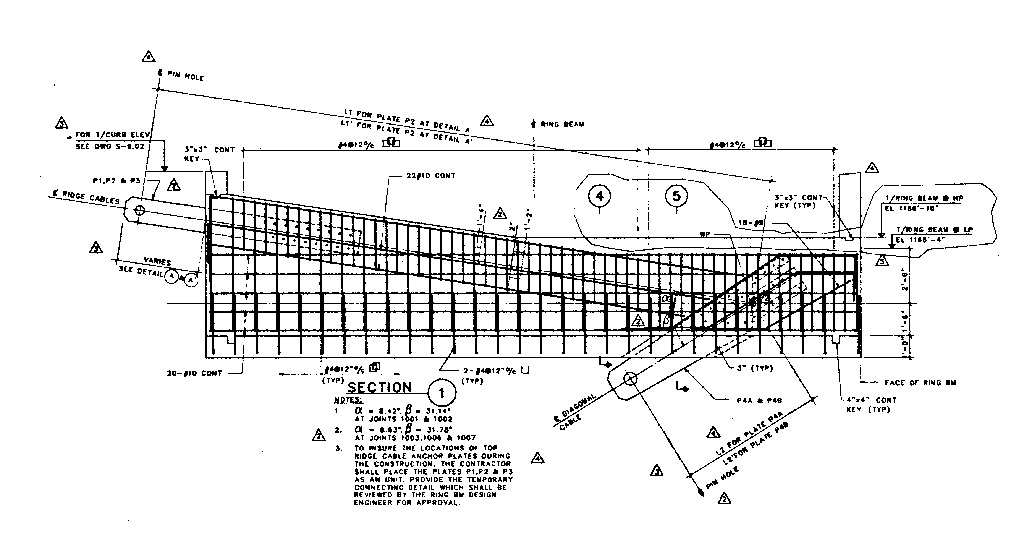

Section 1
-
-
Section 5
-
-
Ring Beam Cable Anchor Details - 1
Full Document: S-0904
0.5MB JPEG
-
-
Ring Beam Cable Anchor Details - 1
Full Document: S-0904
1.6MB Compressed TIF

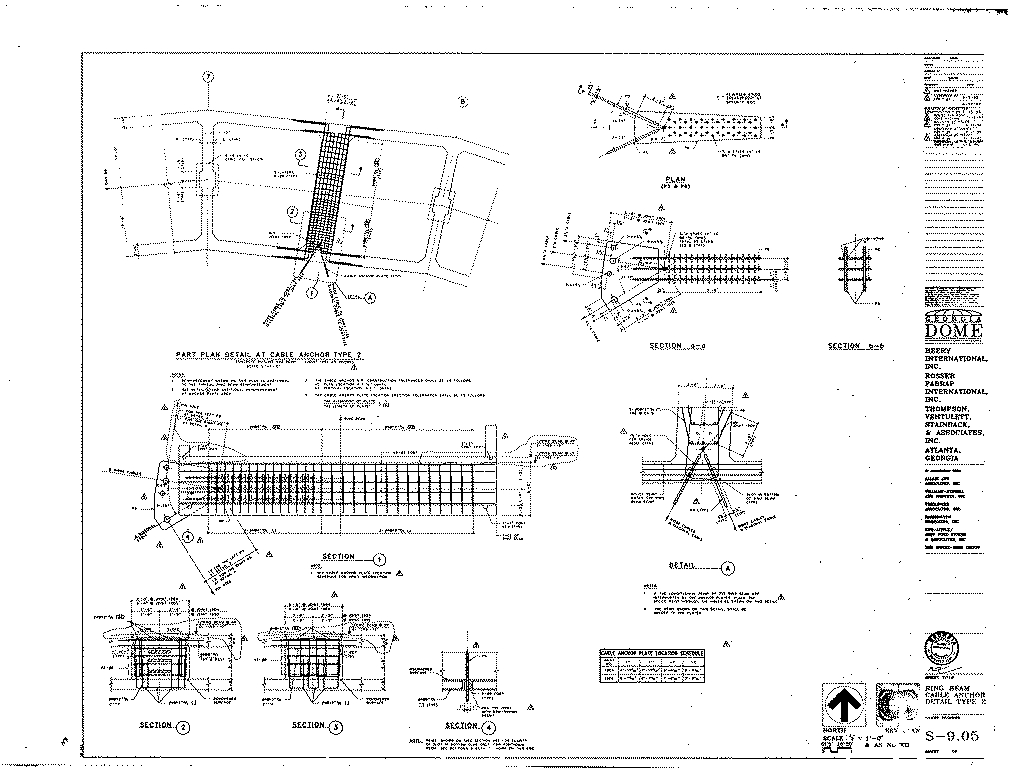

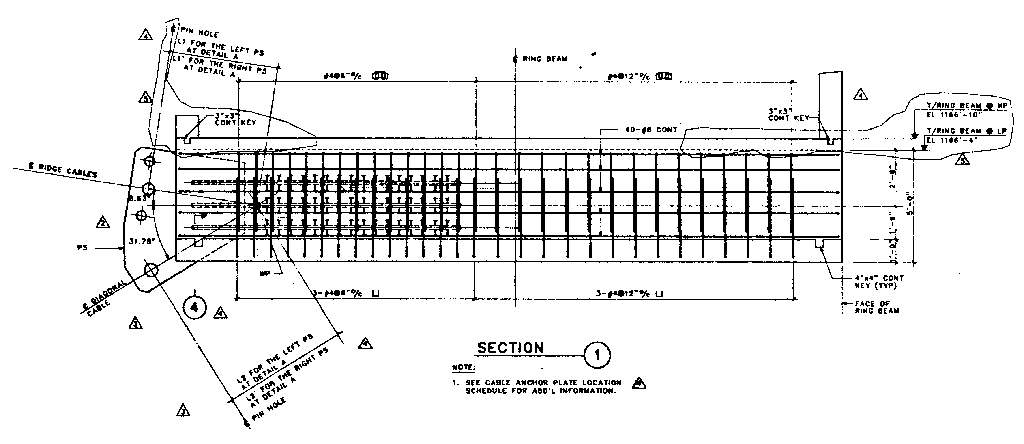

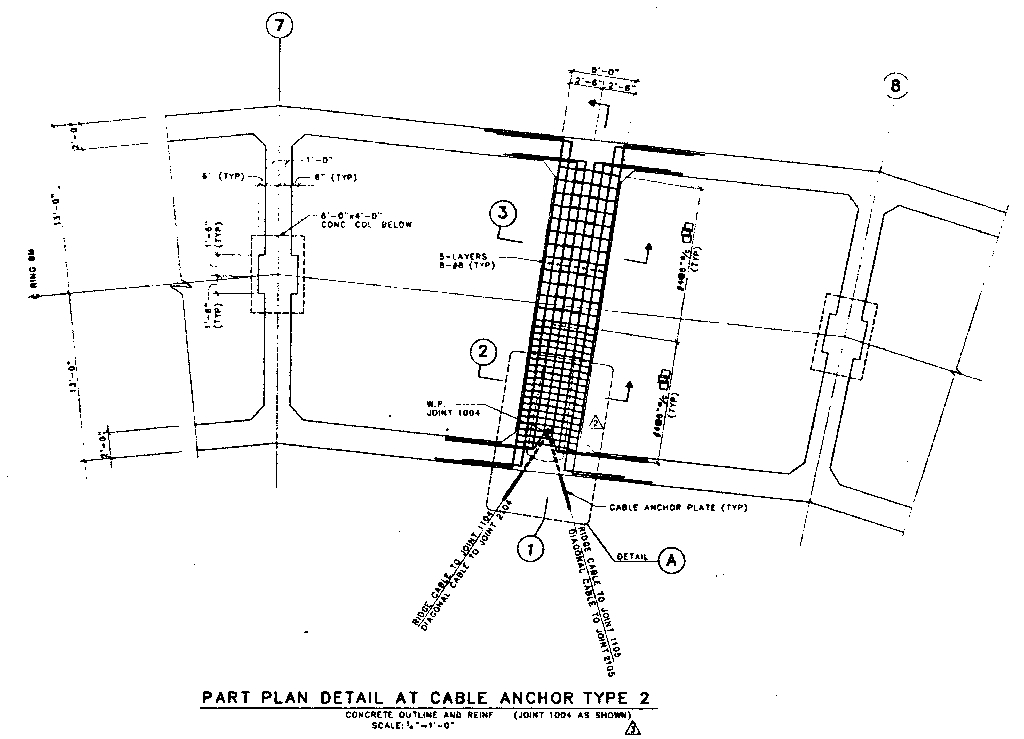

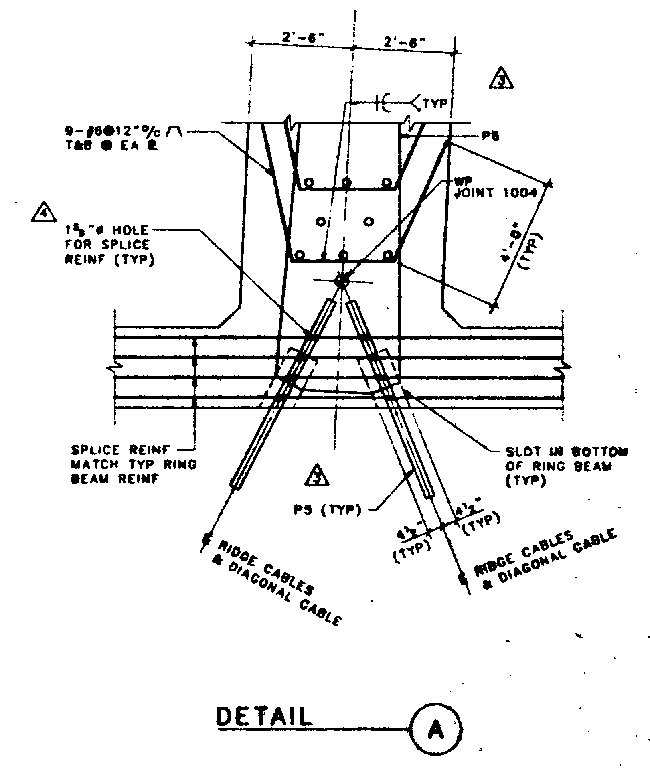

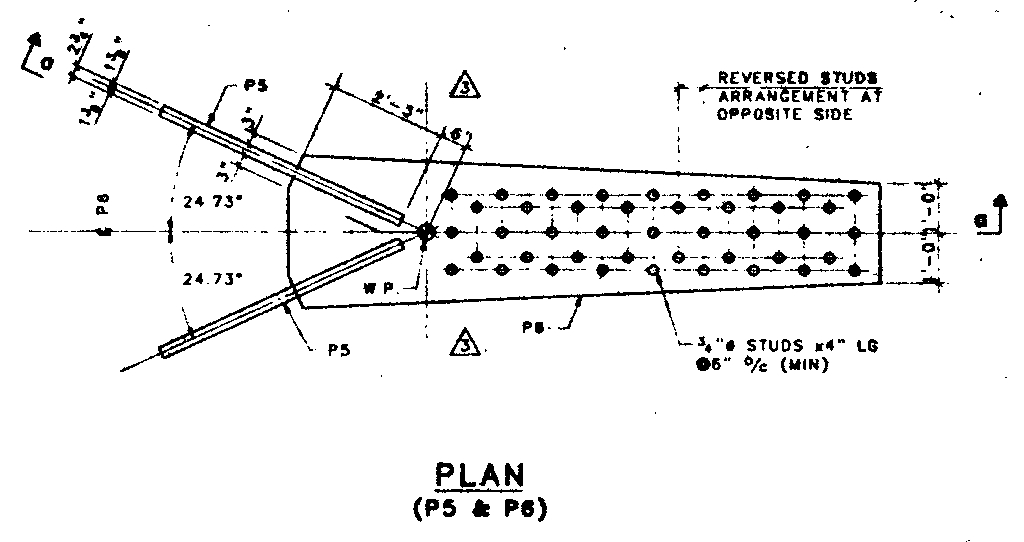

Ring Beam Cable Anchor Detail - 2, Document S-0905
-
-
Part Plan Detail
-
-
Section 1
-
-
Plan P5 & P6
-
-

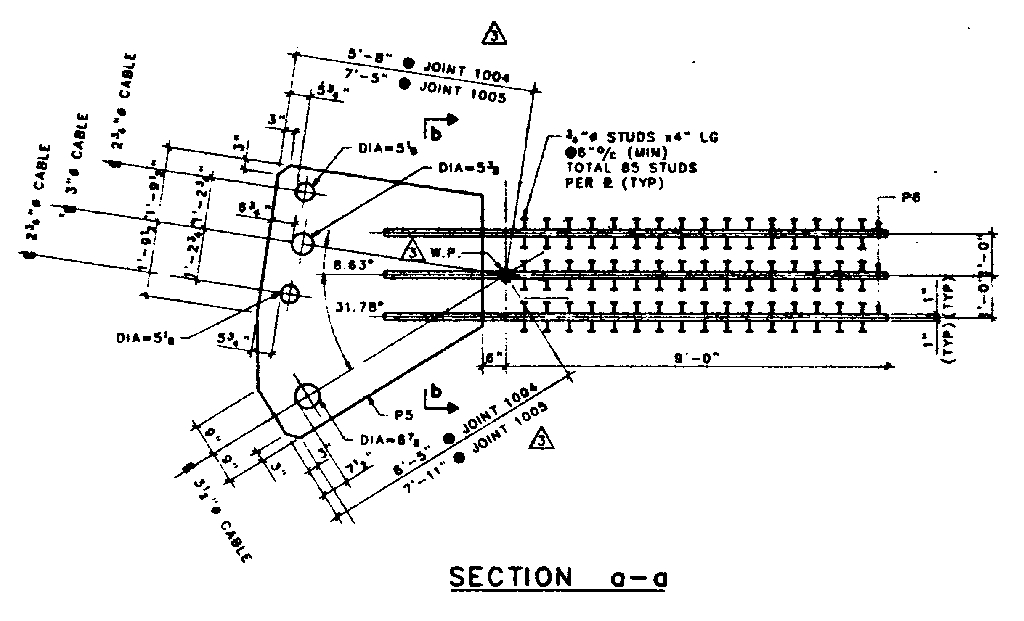

Section AA
-
-
Detail A
-
-
Ring Beam Cable Anchor Detail - 2
Full Document: S-0905
0.5MB JPEG
-
-
Ring Beam Cable Anchor Detail - 2
Full Document: S-0905
1.1MB Compressed TIF

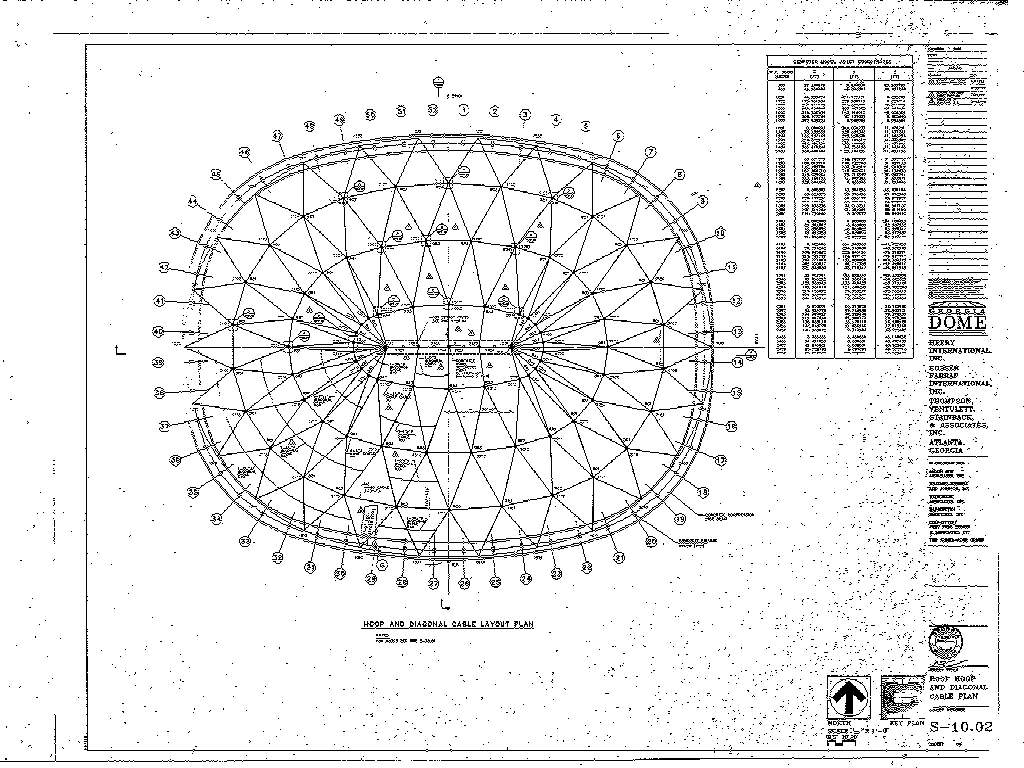

Roof Hoop and Diagonal Cable Plan, Document S-1002
-
-
Cable layout Plan
-
-
Roof Hoop and Diagonal Cable Plan
Full Document: S-1002
0.5MB JPEG
-
-
Roof Hoop and Diagonal Cable Plan
Full Document: S-1002
1.3MB Compressed TIF

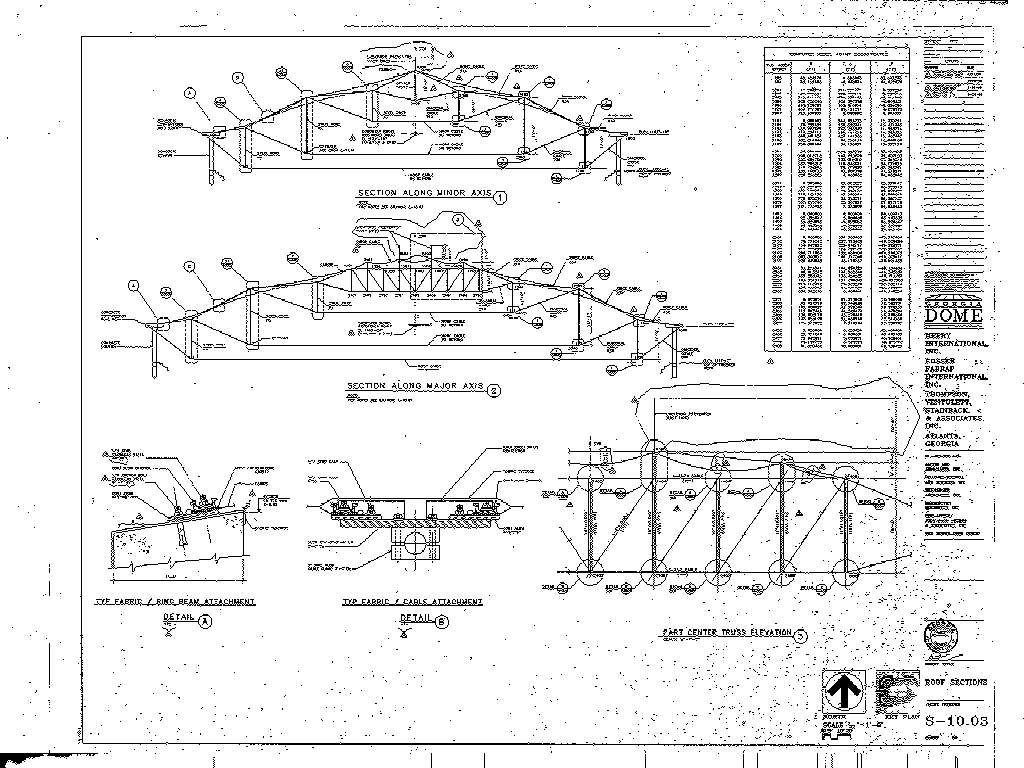

Roof Section, Document S-1003
-
-
Section Along Minor Axis
-
-
Section Along Major Axis
-
-

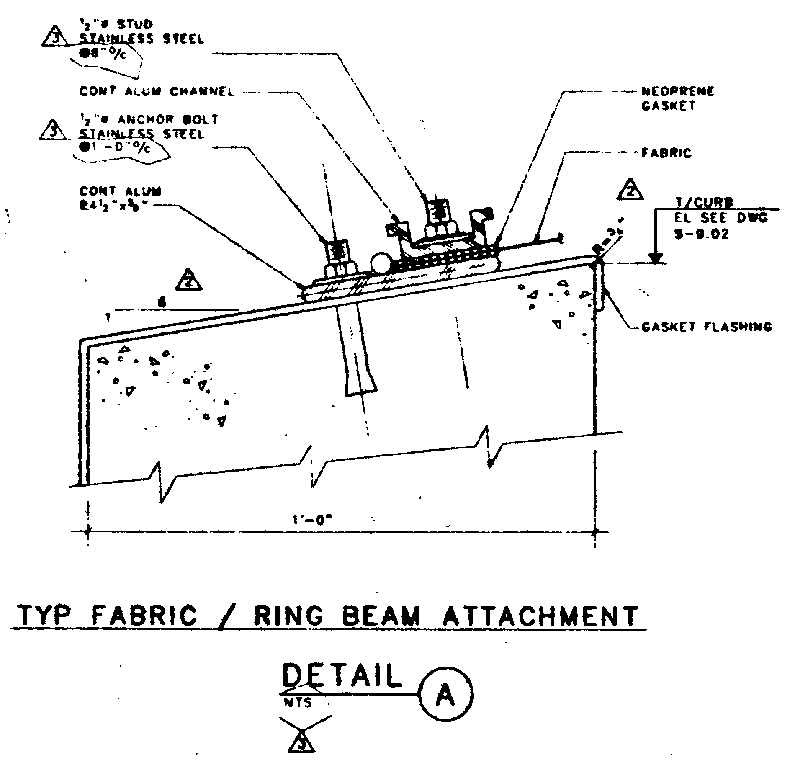

TYP Fabric / Ring Beam Attachment
Detail A
-
-

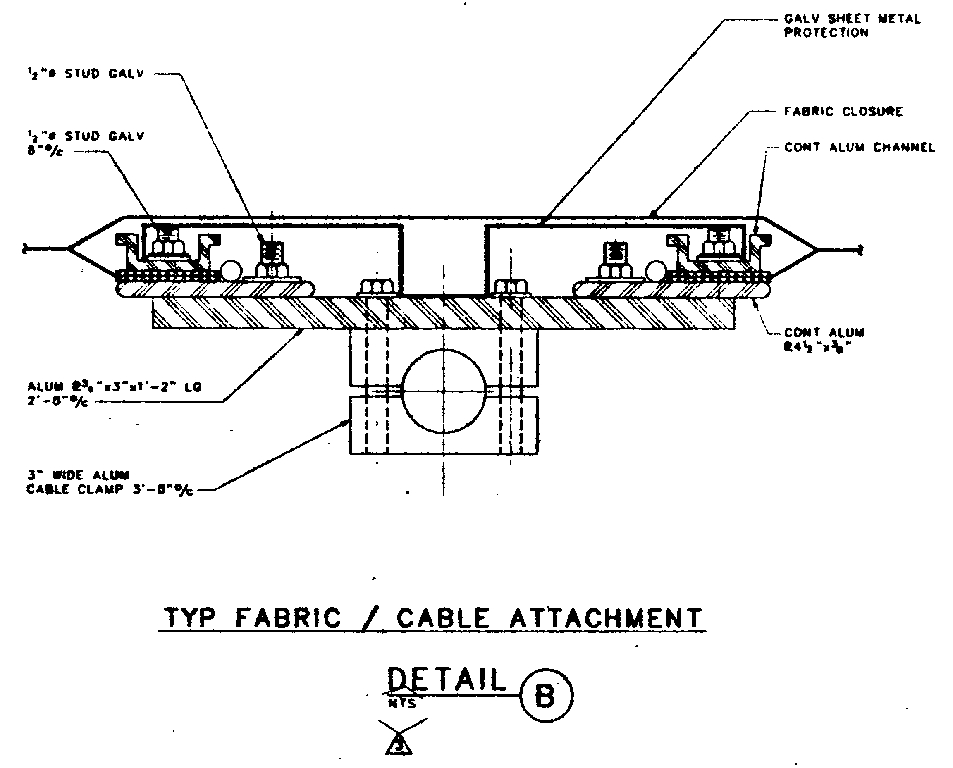

Typical Fabric / Cable Attachment
Detail B
-
-
Roof Section
Full Document: S-1003
0.5MB JPEG
-
-
Roof Section
Full Document: S-1003
1.2MB Compressed TIF

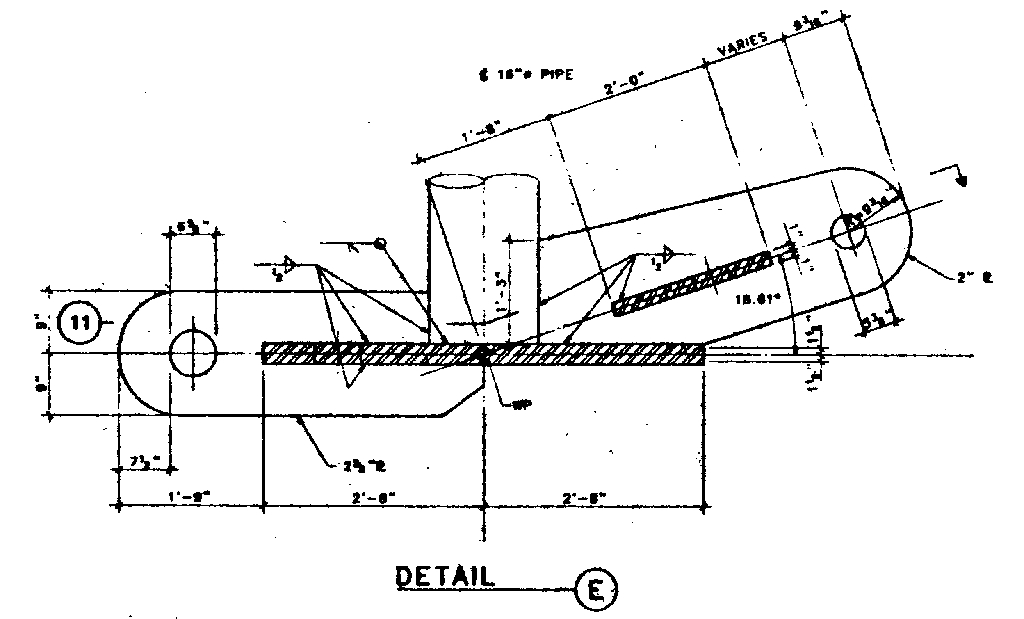

Center Truss Details, Document S-1004
-
-

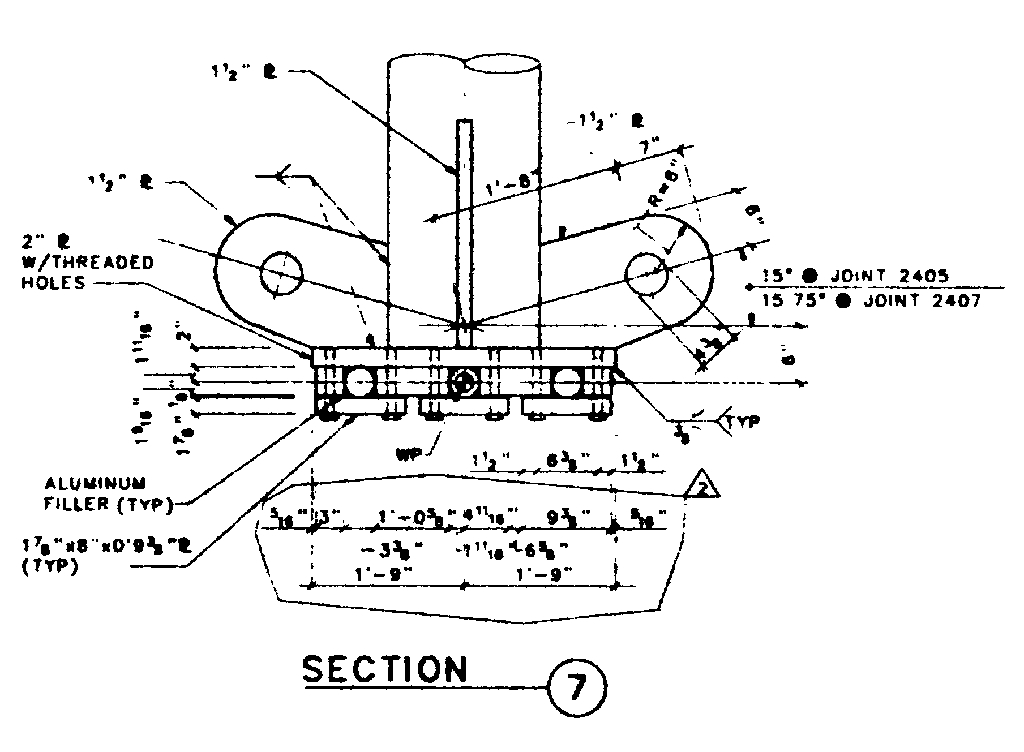

Section 7
-
-

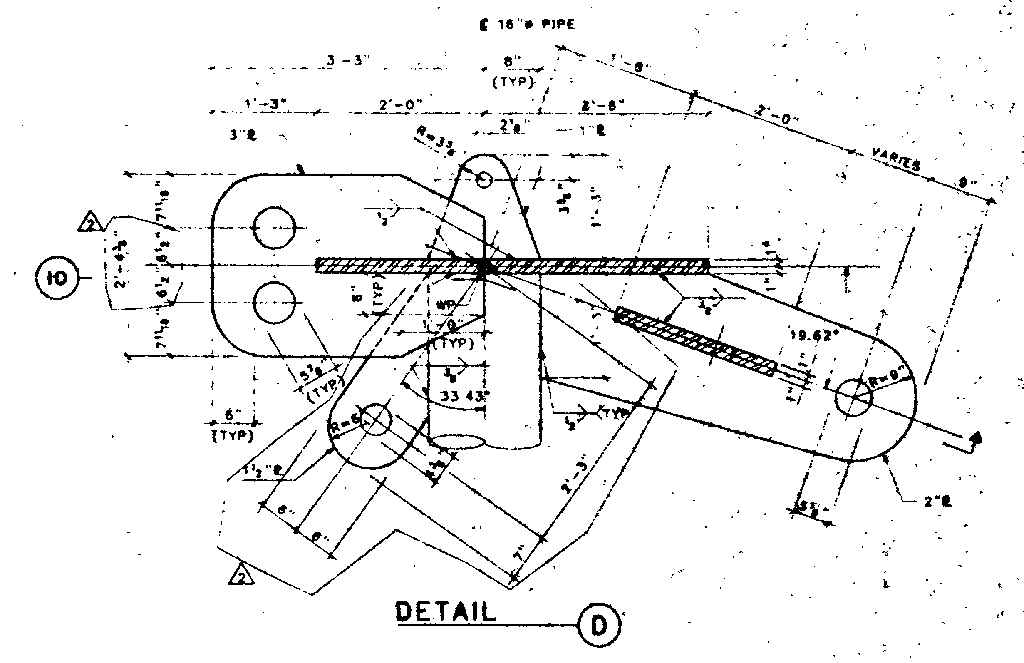

Detail D
-
-
Detail E
-
-
Center Truss Details
Full Document: S-1004
0.5MB JPEG
-
-
Center Truss Details
Full Document: S-1004
1.2MB Compressed TIF

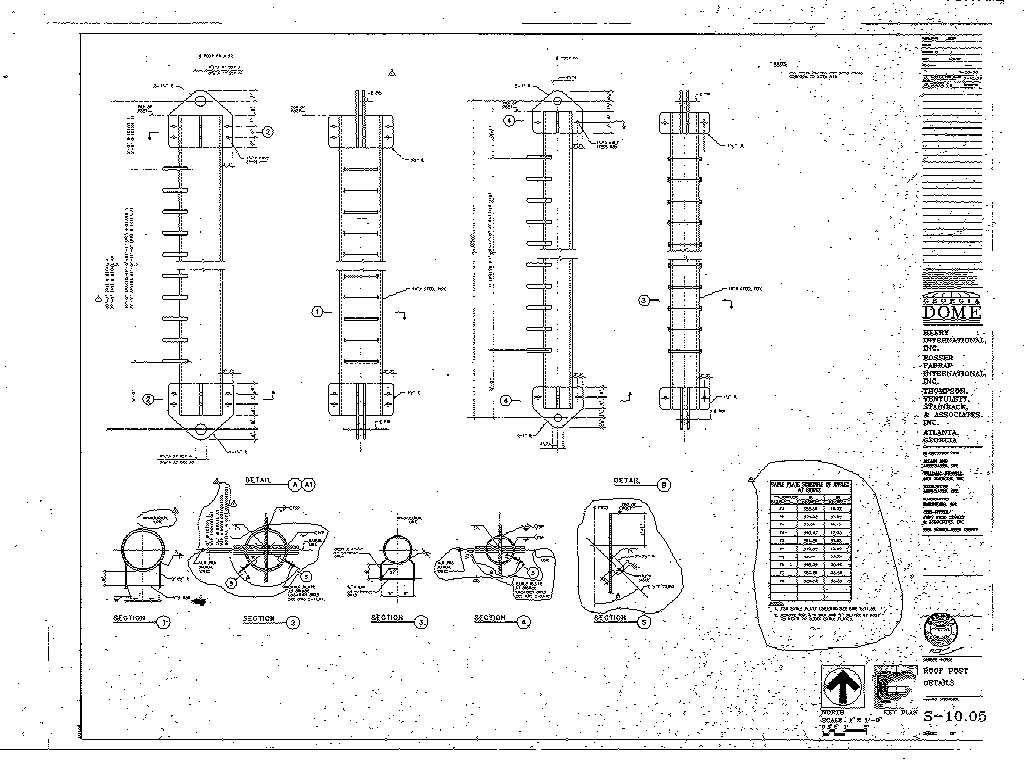

Roof Post Details, Document S-1005
-
-

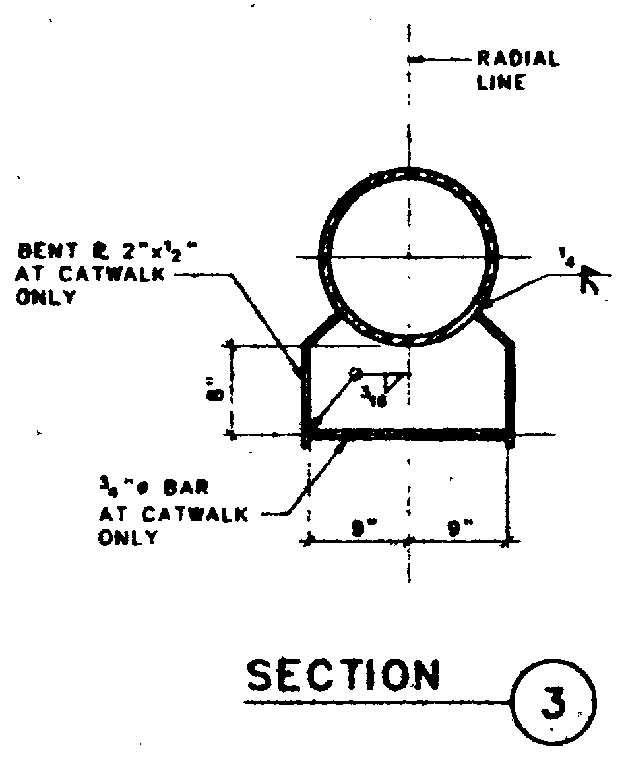

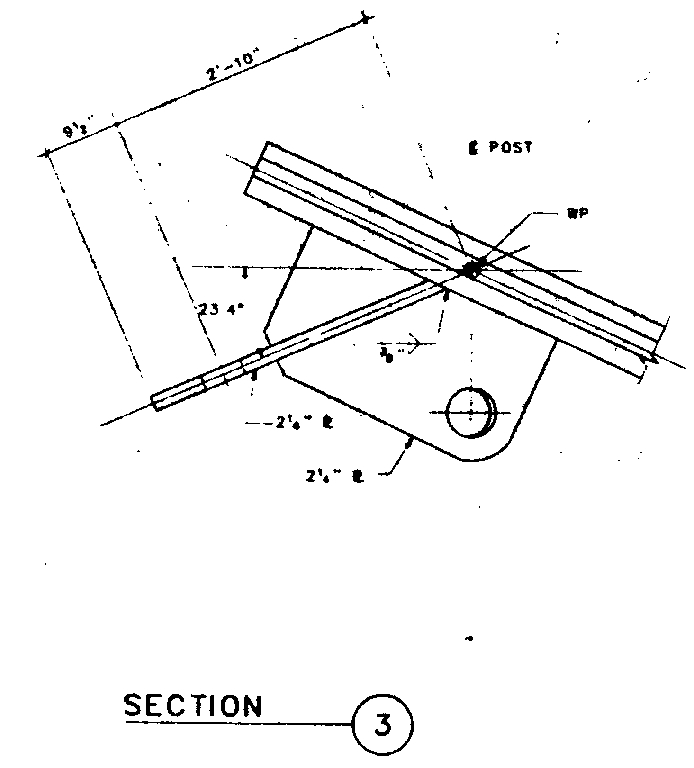

Section 3
-
-

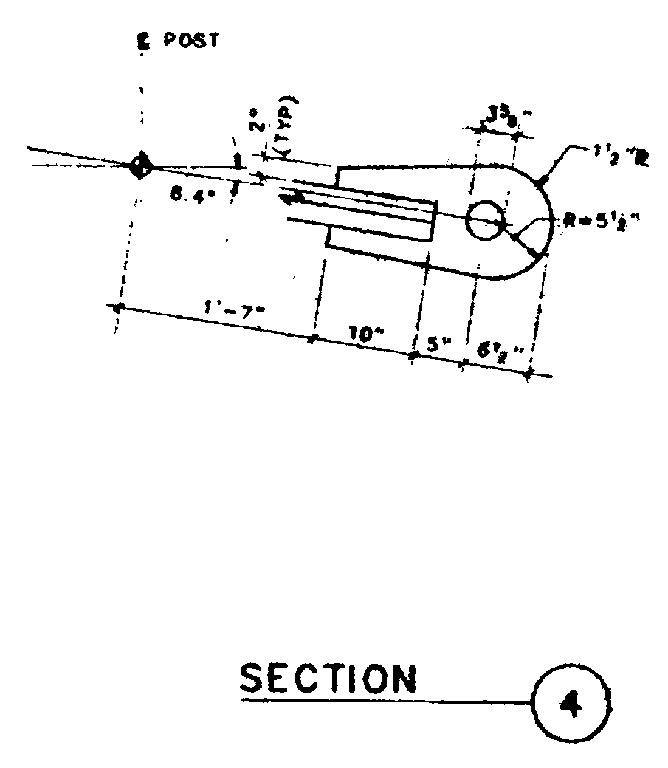

Section 4
-
-
Roof Post Details
Full Document: S-1005
0.4MB JPEG
-
-
Roof Post Details
Full Document: S-1005
0.9MB Compressed TIF

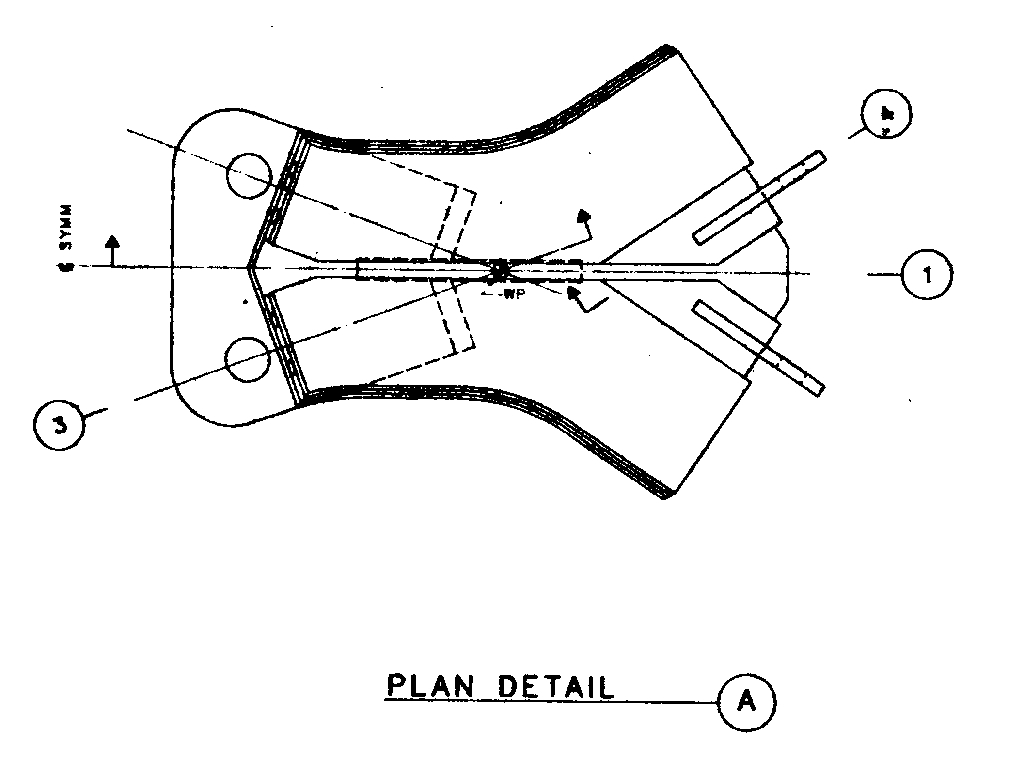

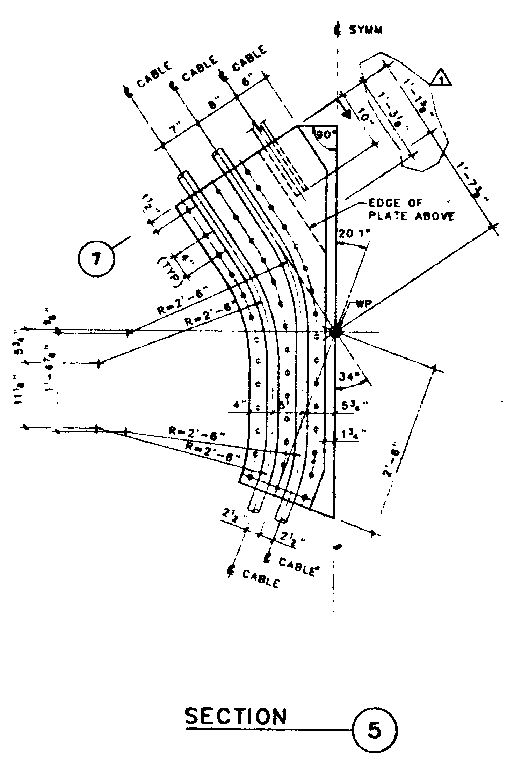

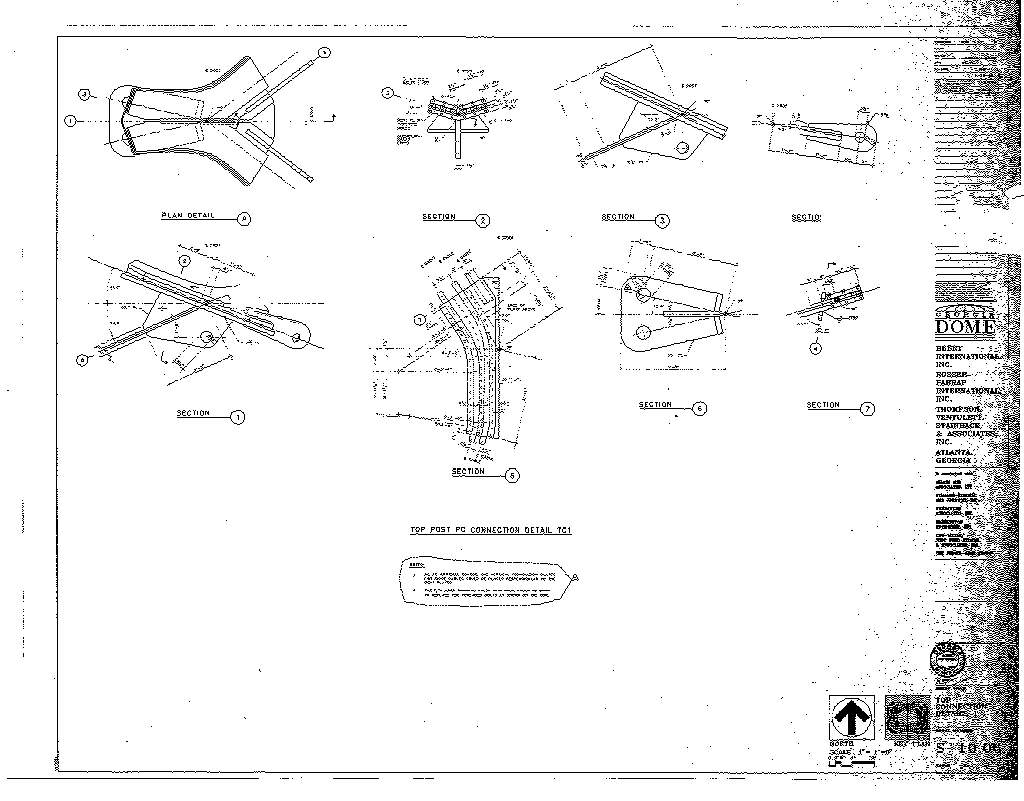

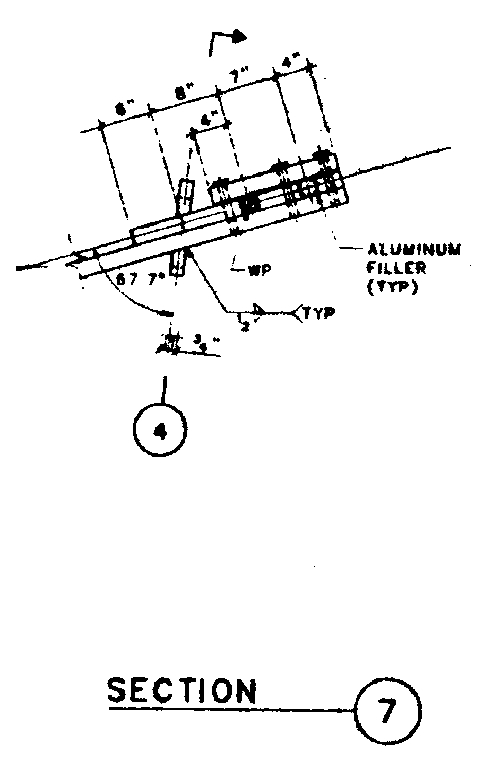

Top Connection Details, Document S-1006
-
-
Plan Detail A
-
-
Section 1
-
-
Section 2
-
-
Section 3
-
-
Section 4
-
-
Section 5
-
-

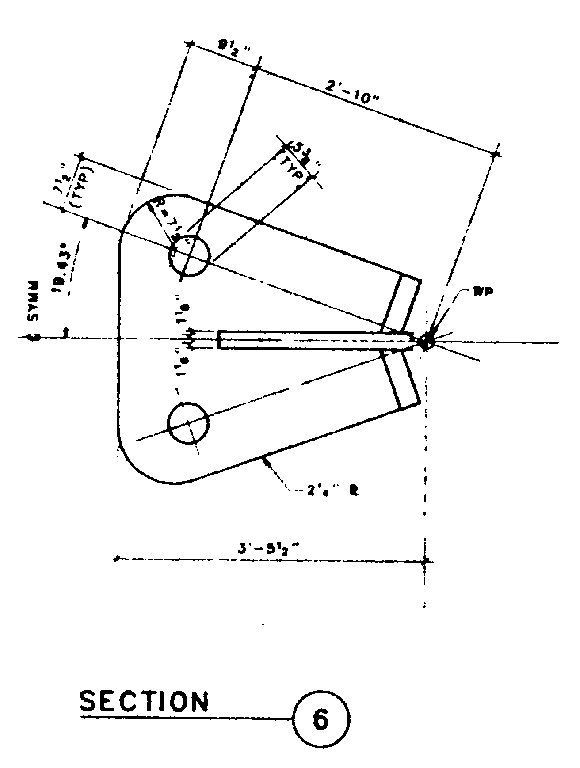

Section 6
-
-
Section 7
-
-
Top Connection Details
Full Document: S-1006
0.3MB JPEG
-
-
Top Connection Details
Full Document: S-1006
0.5MB Compressed TIF

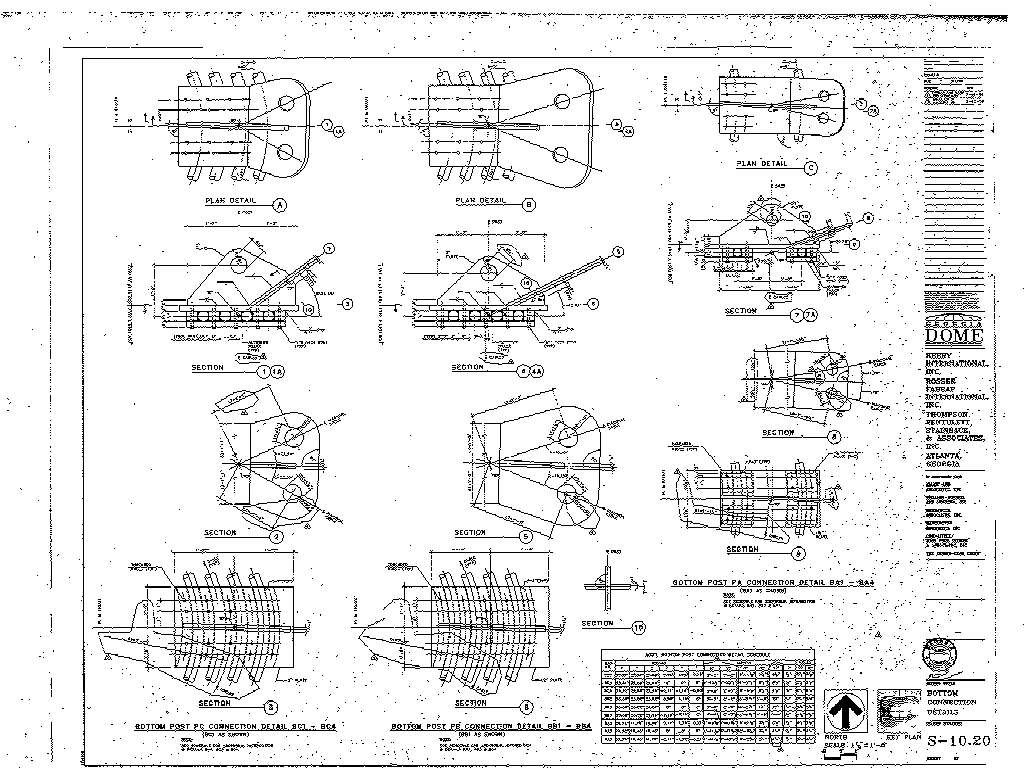

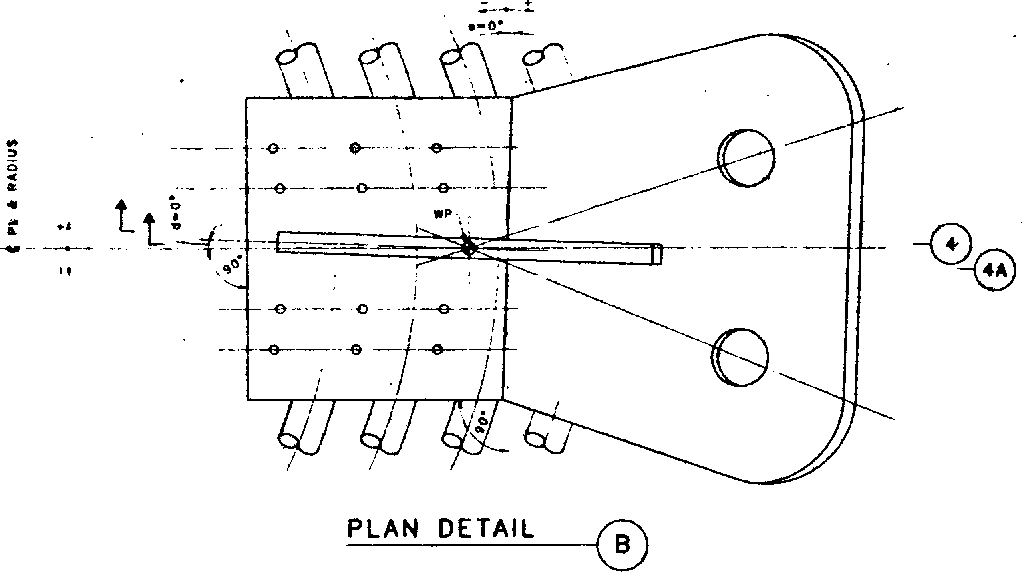

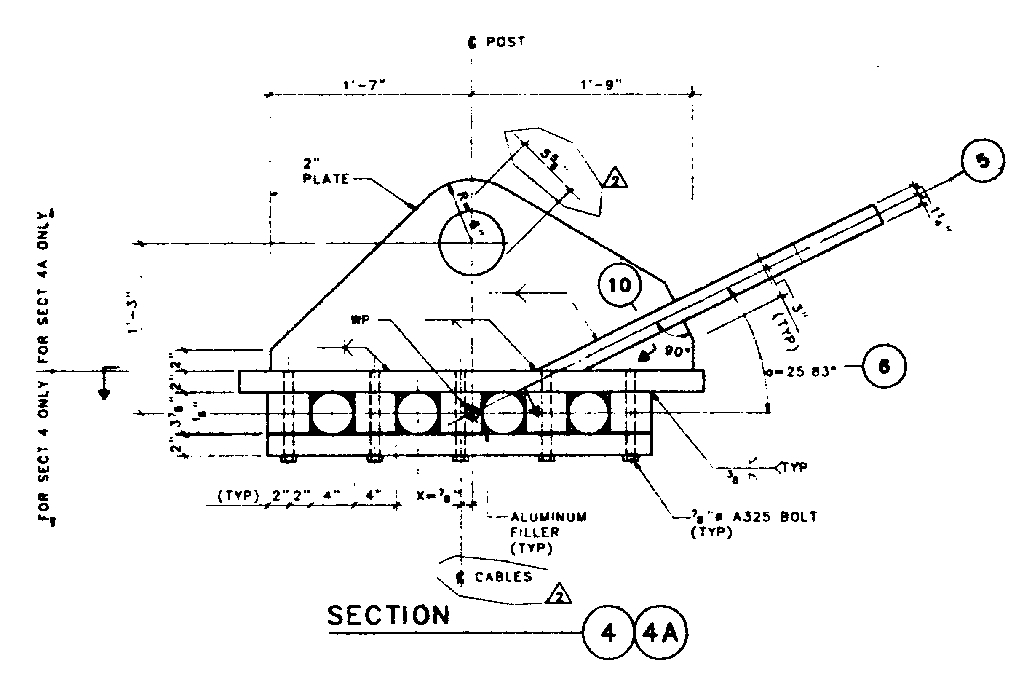

Bottom Connection Details, Document S-1020
-
-
Plan Detail B
-
-
Section 4, 4A
-
-
Bottom Connection Details
Full Document: S-1020
0.5MB JPEG
-
-
Bottom Connection Details
Full Document: S-1020
1.3MB Compressed TIF

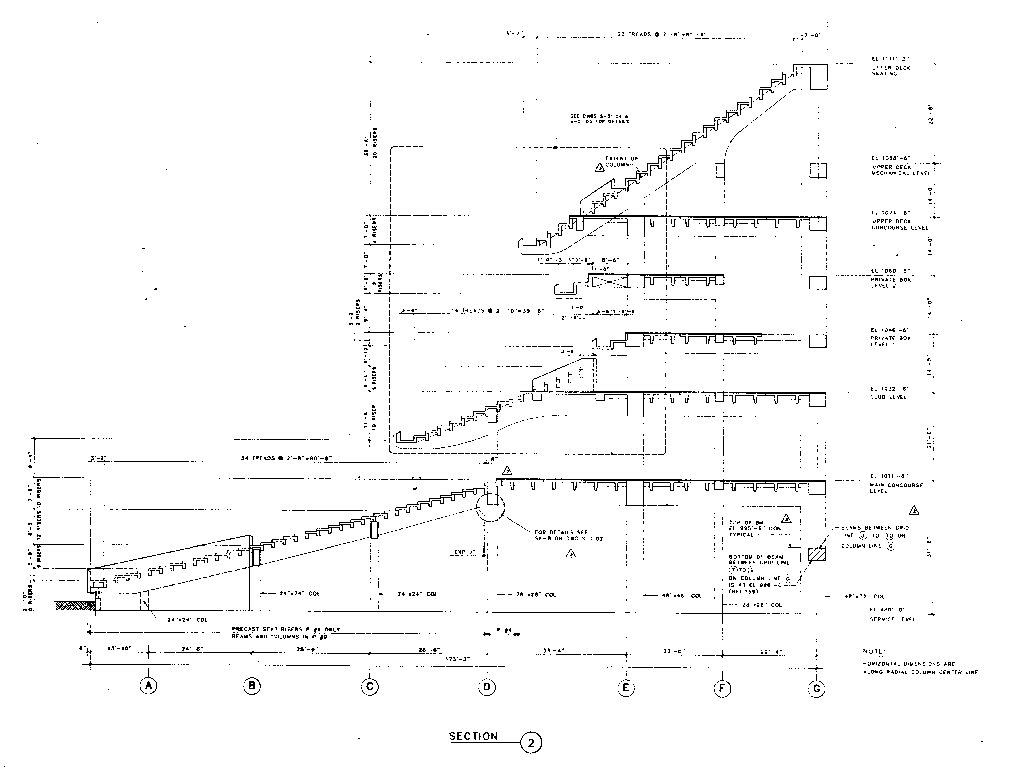

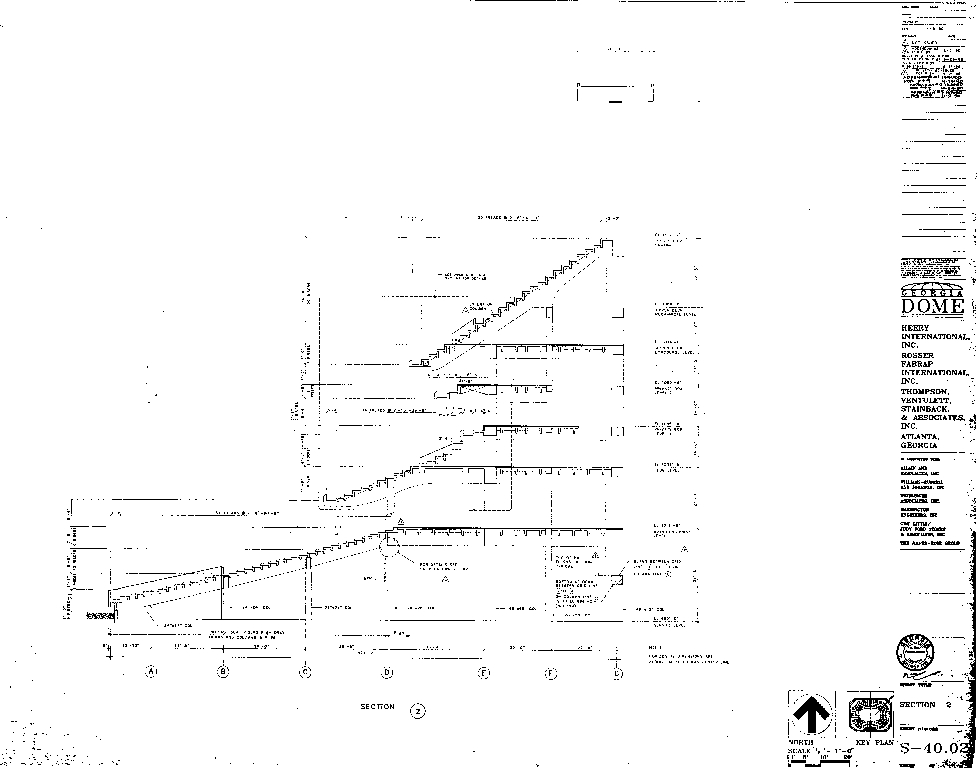

Section 2, Document S-4002
-
-
Section
-
-
Section 2
Full Document: S-4002
0.2MB JPEG
-
-
Section 2
Full Document: S-4002
0.4MB Compressed TIF
