Bearing Walls: Masonry Cavity and Platform Frame
-
-
Classification of Masonry Wall Types
-
-
Vapor Barrier on Warm Side
-
-
Dew Point Diagram
-
-
Monolithic Brick Wall
-
-
Cavity Wall with Insulation
-
-
Insulated Masonry Wall Assembly
-
-
Rainscreen Principle
-
-
Monolithic Wall vs. Cavity Wall
-
-
Sealants: Weather Degradation
-
-
Sealant at Joints: Two lines of defense
-
-
Improper Flashing Installation
-
-
Proper Flashing Installation
-
-

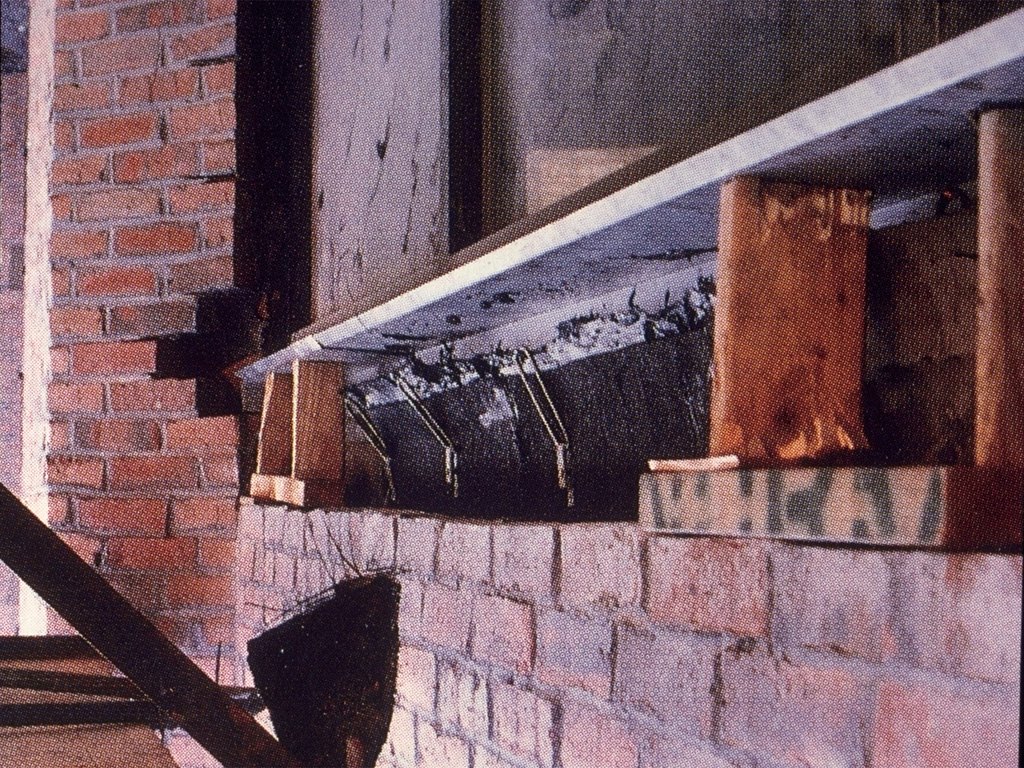

Lead Coated Copper Flashing
-
-
Frame and Exfill Remedial Flashing System
-
-

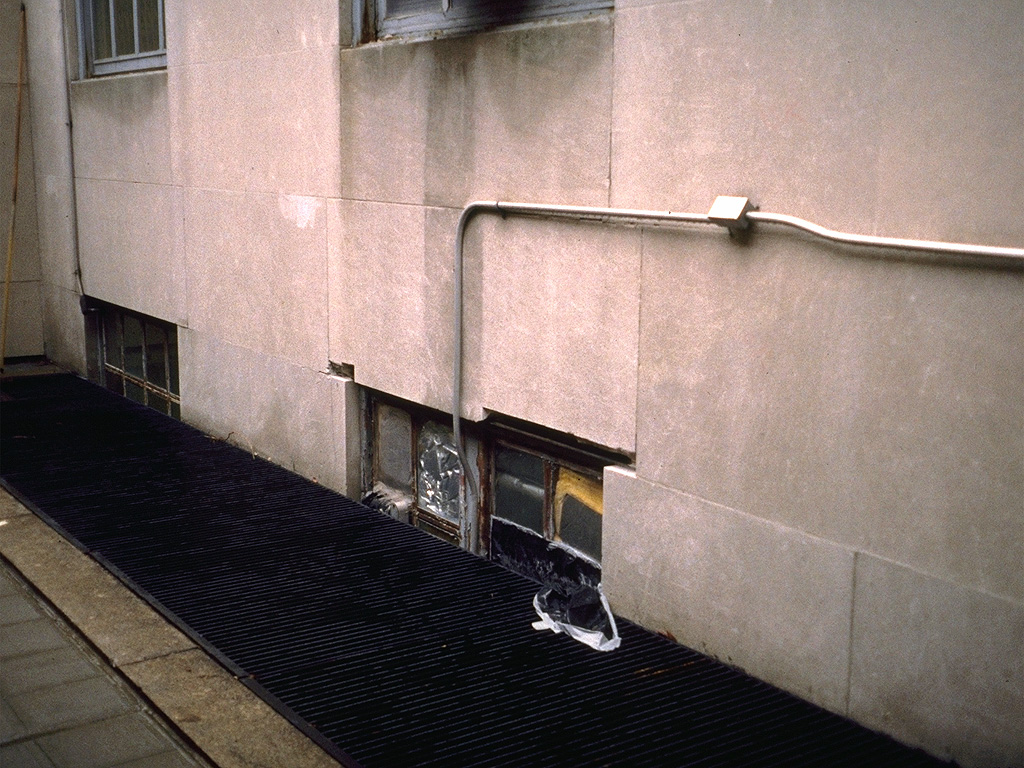

Water penetrates and isn't drained - Stone and mortar spalls
off
-
-

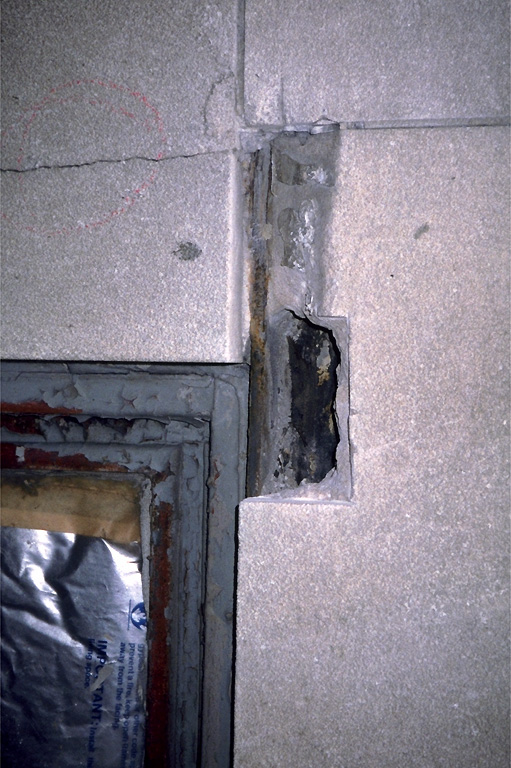

Investigation of Water Damage
-
-

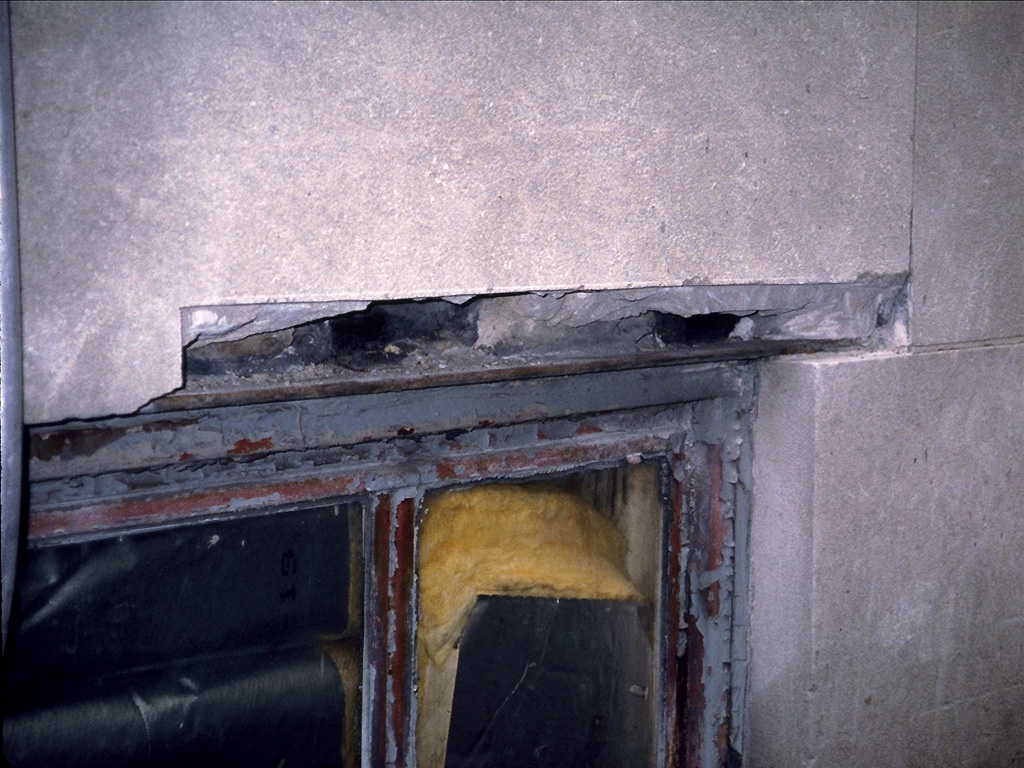

Investigation of Water Damage
-
-

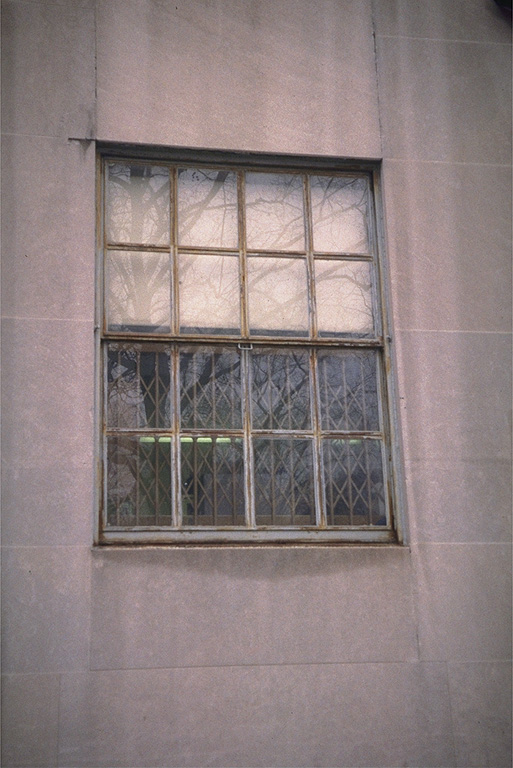

Steel Lintel
-
-
H. H. Richardson: Ames Library

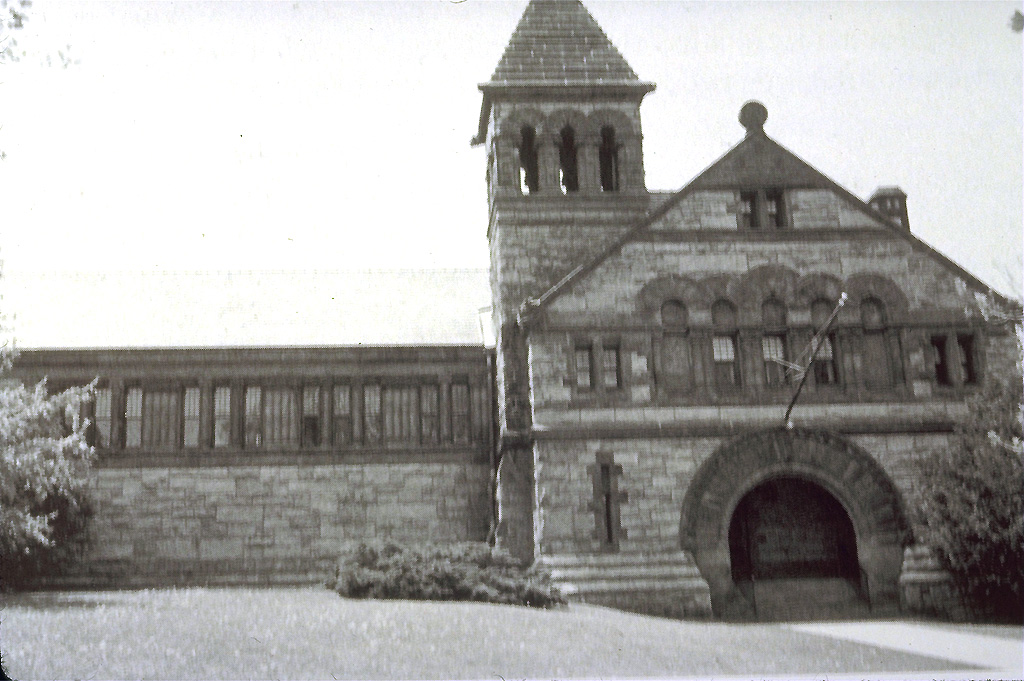

Exterior View
-
-
H. H. Richardson: Ames Library

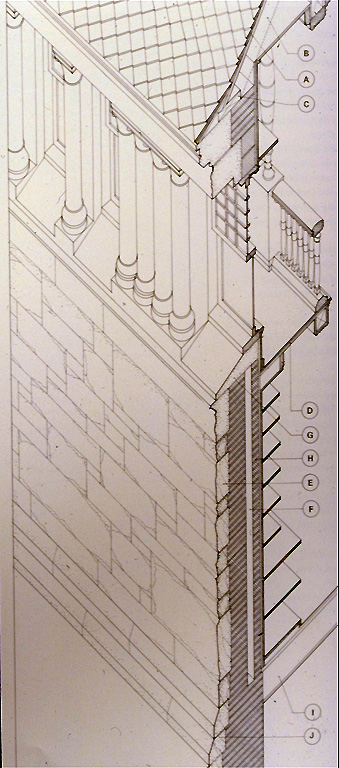

Section Through Envelope
-
-
H. H. Richardson: Winn Memorial Library

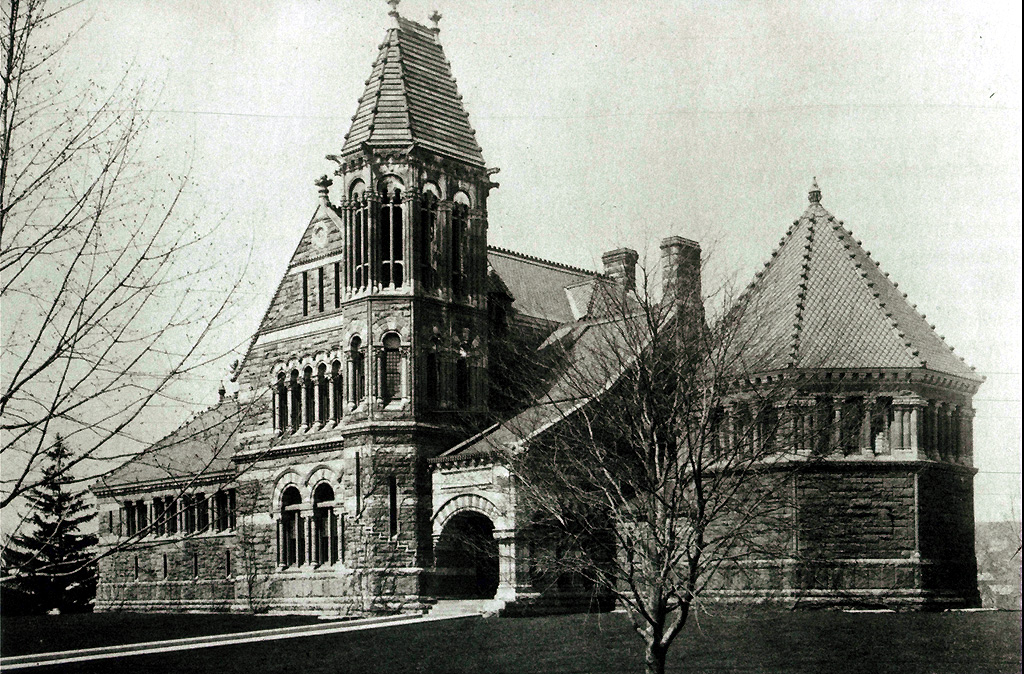

Exterior View
-
-
McKim, Mead and White: Morgan Library

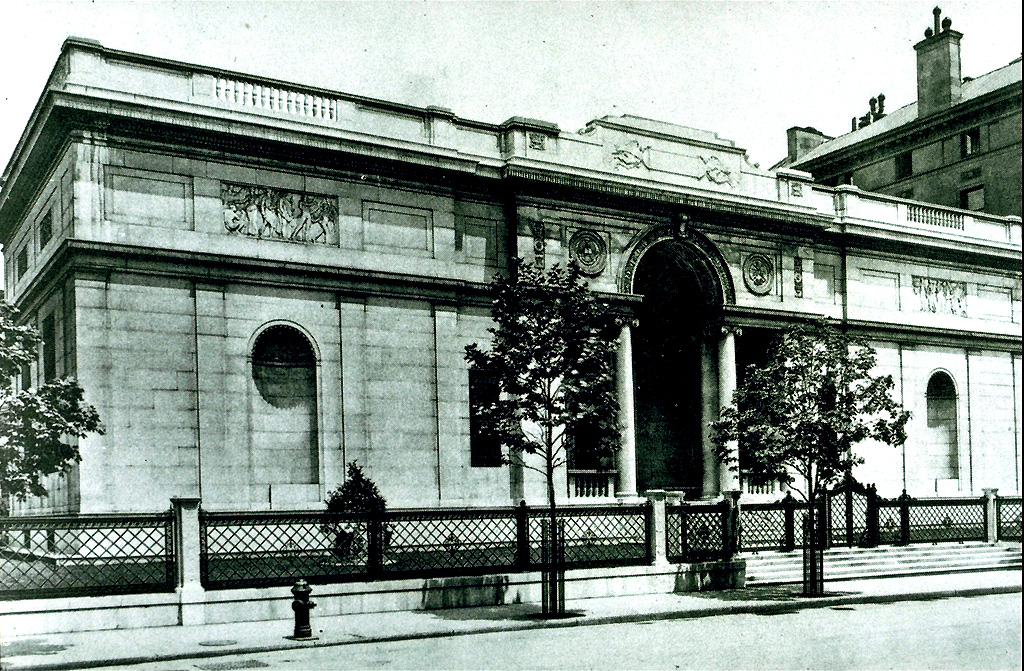

Exterior View
-
-
McKim, Mead and White: Morgan Library

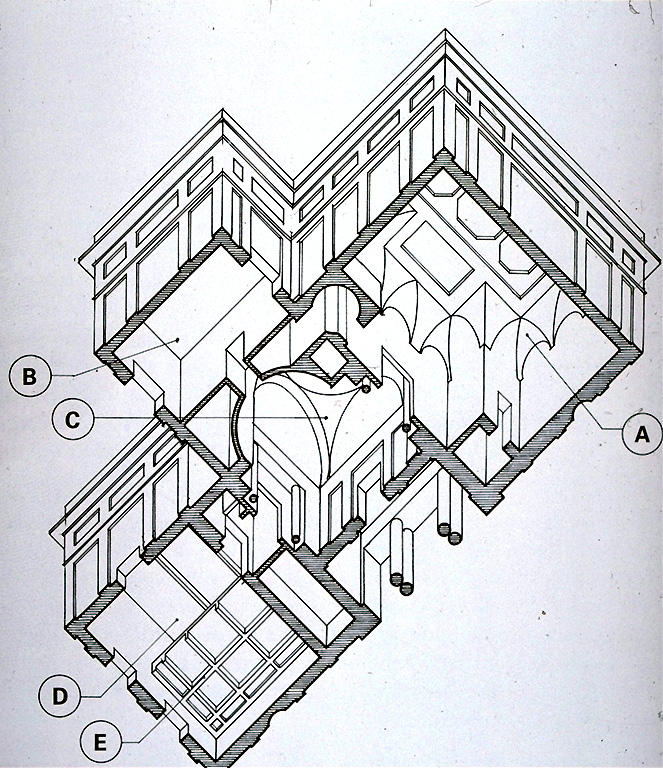

Axonometric of Masonry Vaults
-
-
McKim, Mead and White: Morgan Library
Section through Envelope
-
-
Lutyens: Ednaston Manor
Exterior View
-
-
Wright: Robie House
Exterior View
-
-
Wright: Robie House
Plan and Section
-
-
Wright: Robie House
Under Construction
-
-
Wright: Robie House
Section Through Envelope
-
-
Wright: Johnson Wax Building

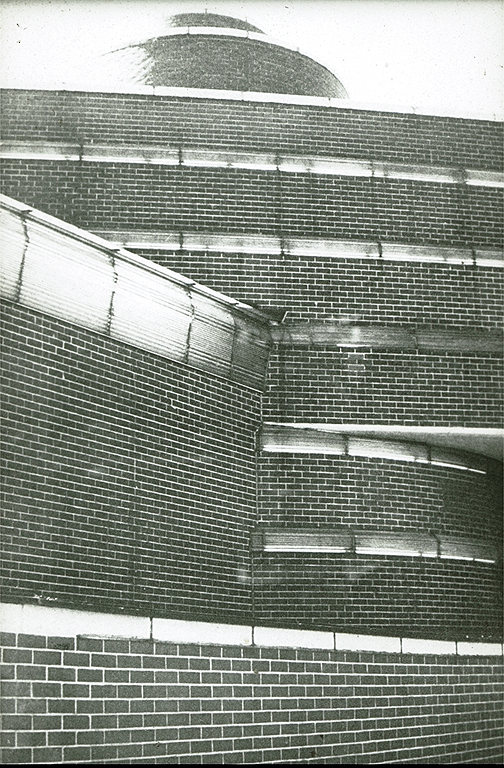

Exterior View
-
-
Wright: Johnson Wax Building

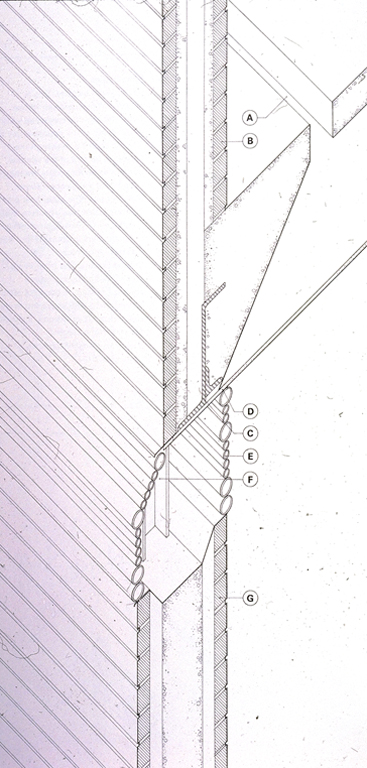

Section through Envelope
-
-
Wright: Johnson Wax Building
Masonry Cavity Wall filled with Cork
Insulation
-
-
Wright: Johnson Wax Building
Installation of Glass Tubing
Bearing Walls: Masonry Cavity and Platform
Frame Continues
