Construction Documents

Structruals

Foundation and Ground Floor Plan, Drawing S1

Detail of Floor Plan
typical detail

Foundation and Ground Floor Plan
Full Document: S1
1.5M JPEG

Foundation and Ground Floor Plan
Full Document: S1
1M TIF, LZW compressed

---

Roof Framing Plan, Drawing S2

Detail of Roof Framing Plan typical detail

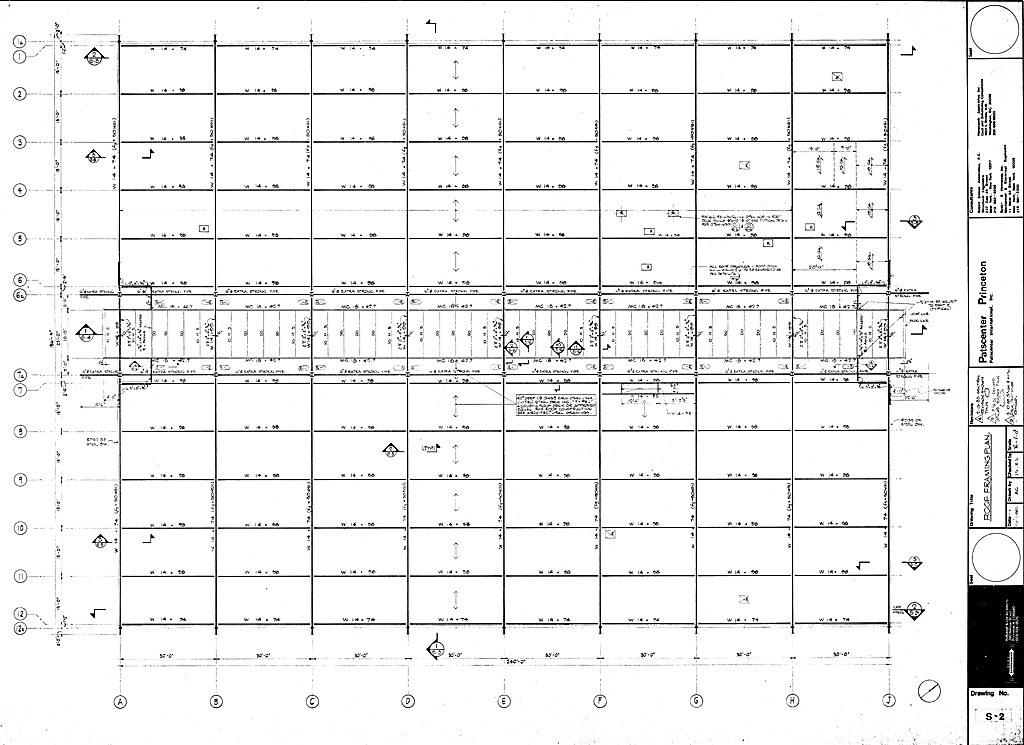

Roof Framing Plan
Full Document: 1M JPEG

Roof Framing Plan
Full Document: 1M TIFF, LZW compressed

---

Sections, Drawing S3

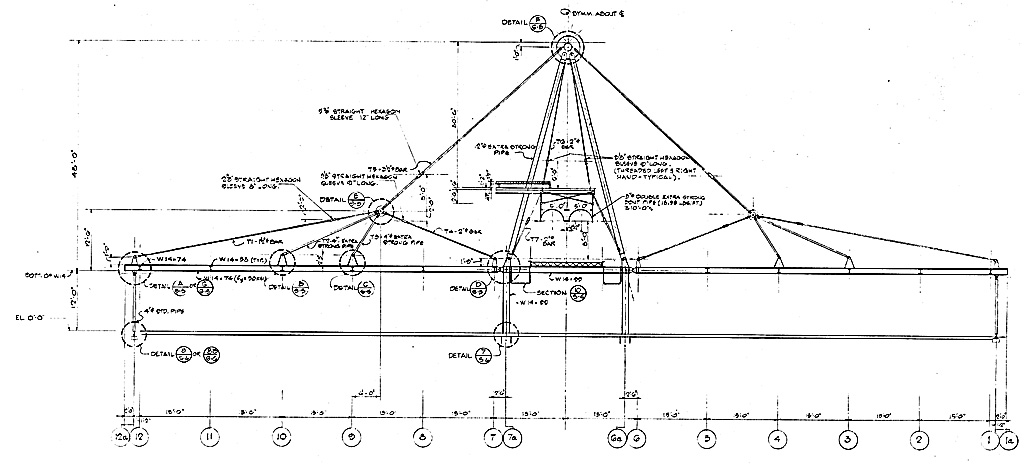

Cross Section
Drawing S3-1

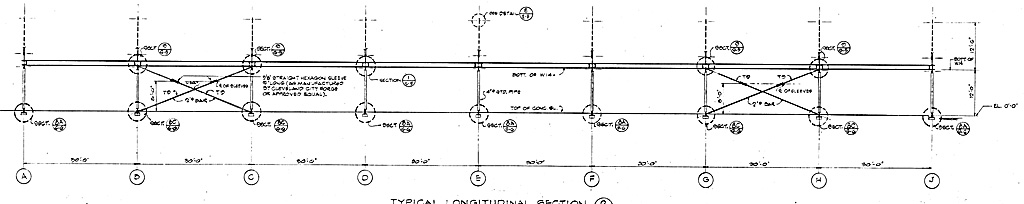

Typical Longitudinal Section
Drawing S3-2

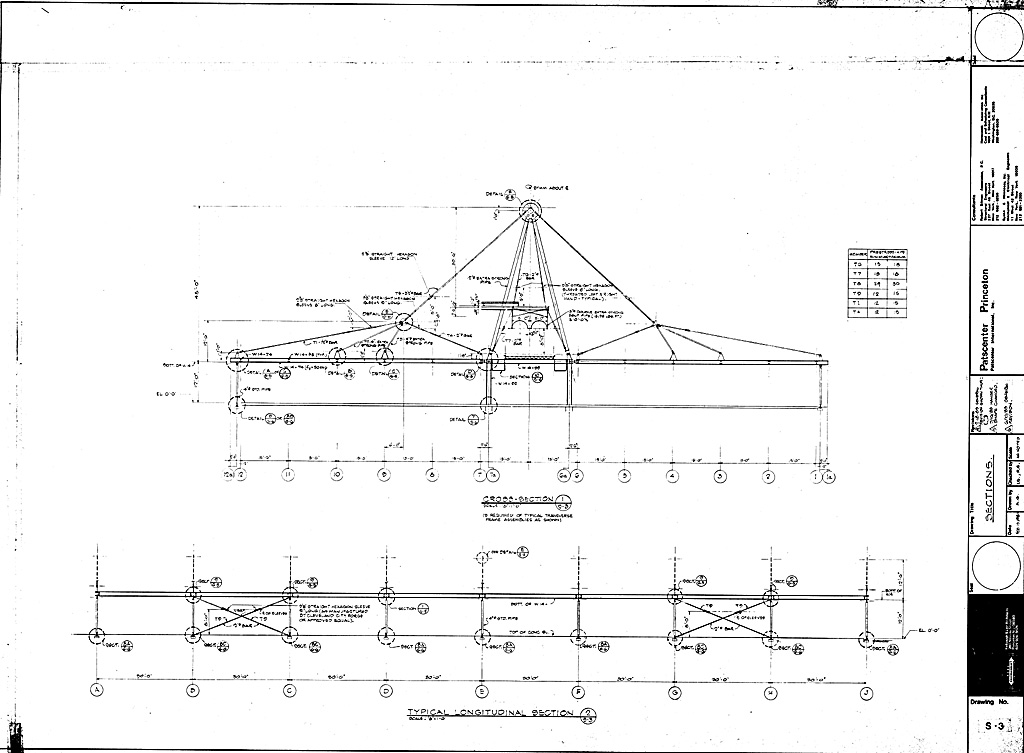

Sections
Full Document: 1M JPEG

Section
Full Document: 1M TIFF, LZW compressed

---

Longitudinal Section Thru Spine & Service Platform Plan, Drawing S4

Logitudinal Section Thru Spine
Drawing S4-1

Section
Drawing S4-2, clear span joists at spine

Section

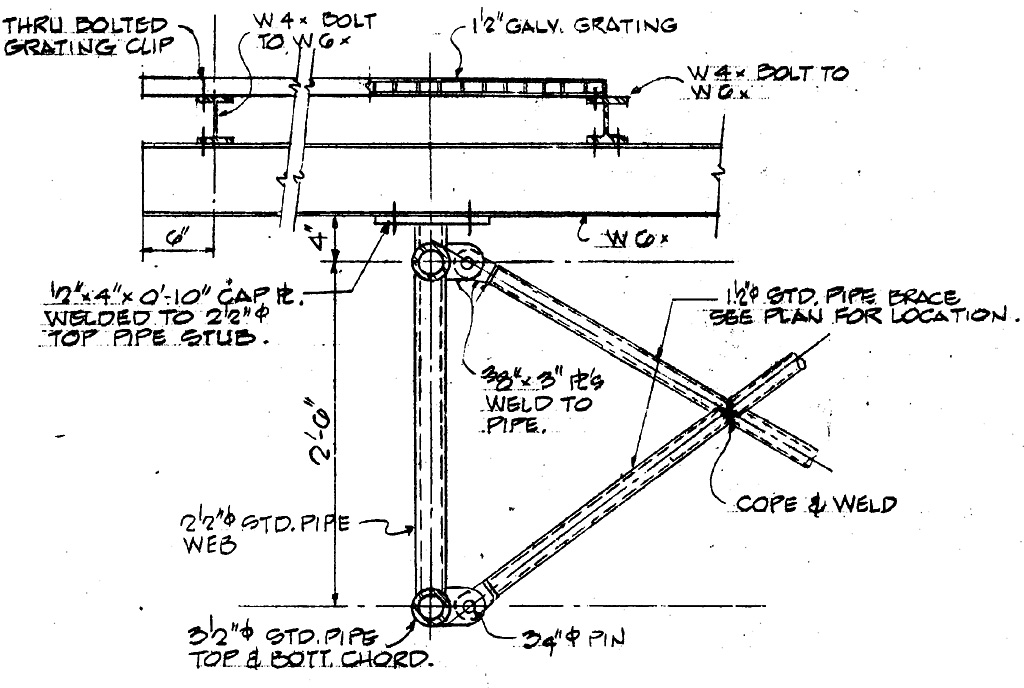

Drawing S4-3, cross section of clear span joists at spine

Longitudinal Section Thru Spine & Service Platform Plan
Full Document: 1M JPEG

Longitudinal Section Thru Spine & Service Platform Plan
Full Document: 1M TIFF, LZW compressed

---

Sections, Drawing S5

Detail (typical)

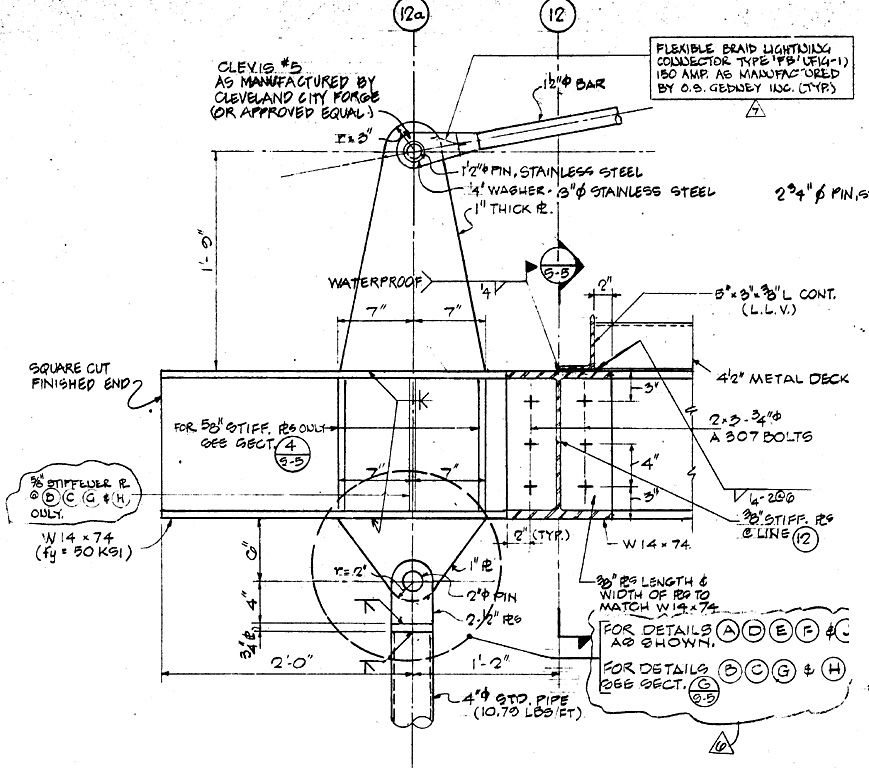

Drawing S5-A, detail at clevice

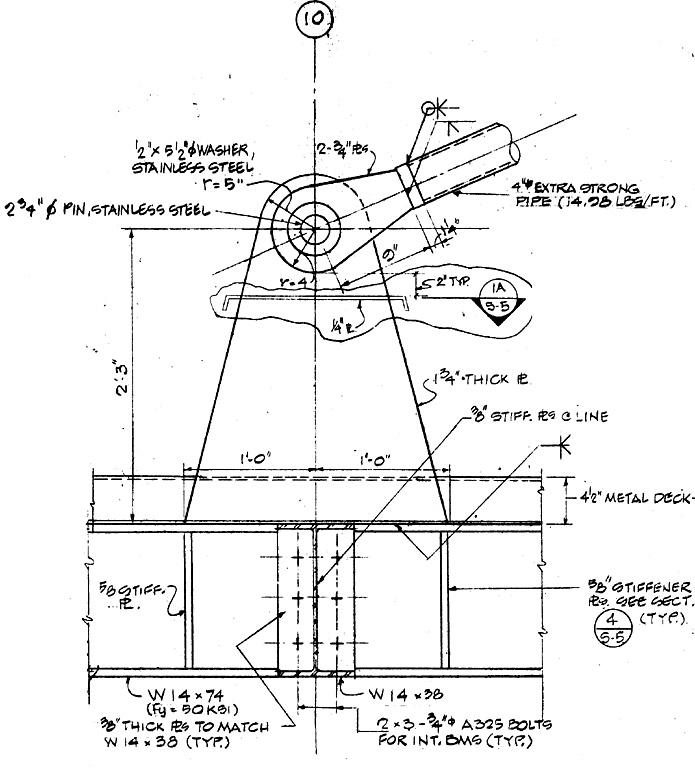

Detail
Drawing S5-b, detail at clevice

Detail

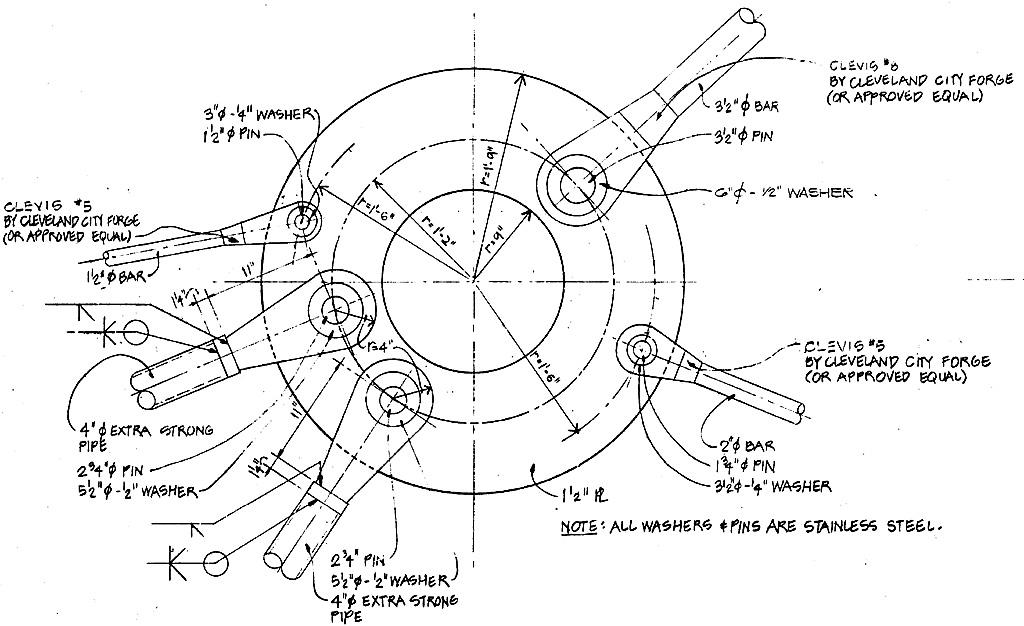

Drawing S5-E, detail at side ring

Detail

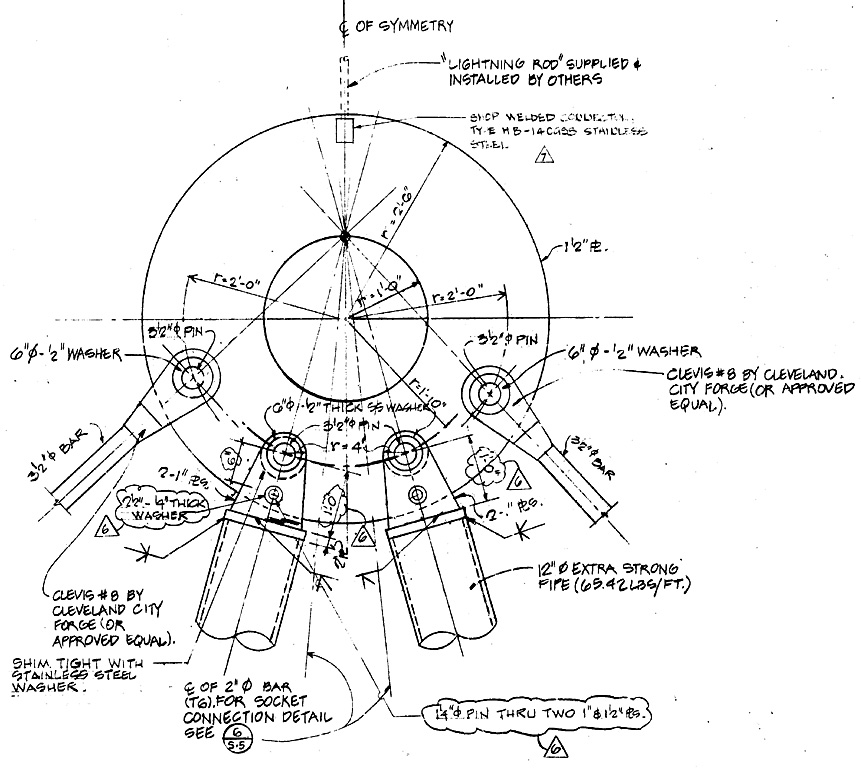

Drawing S5-F, detail at top ring

Section
Drawing S5-4, section through clevice

Section
Drawing S5-5, section through clevice

Section
Drawing S5-4, section through flange

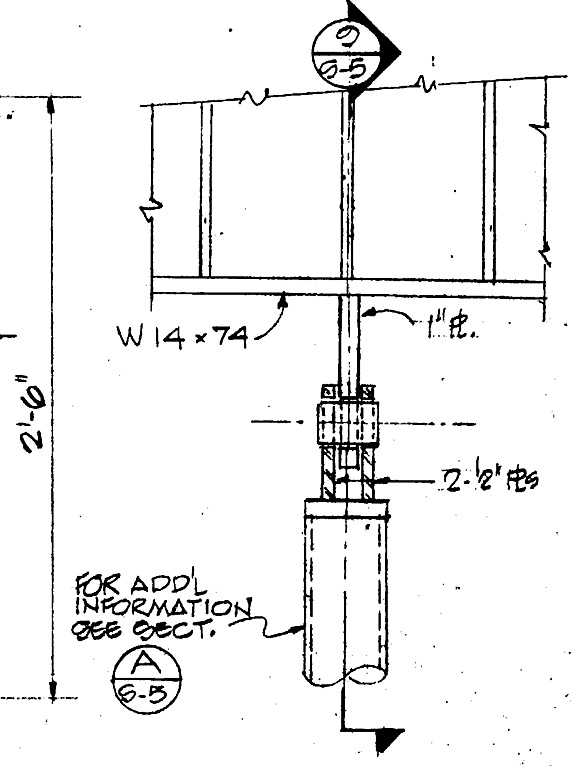

Detail
Drawing S5-G, section at beam

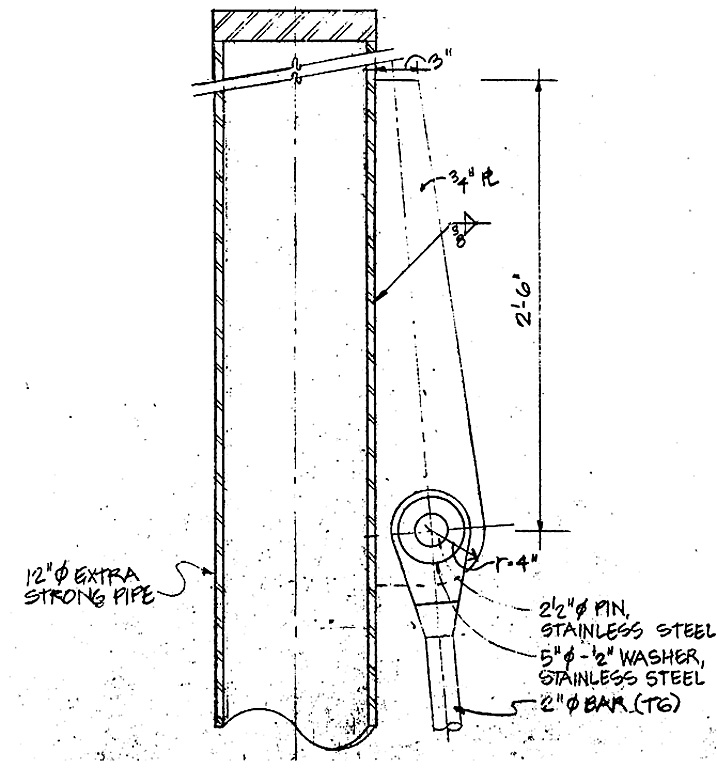

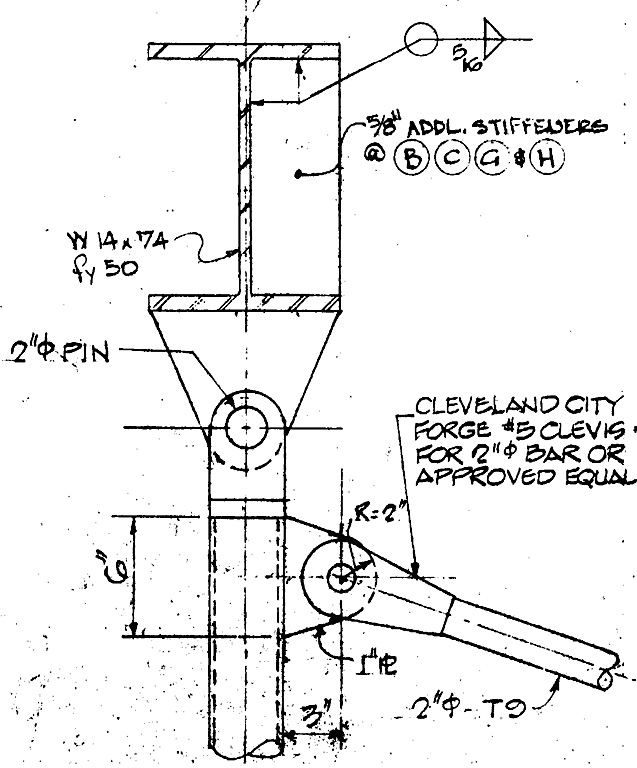

Section
Drawing S5-9, section at exterior beam

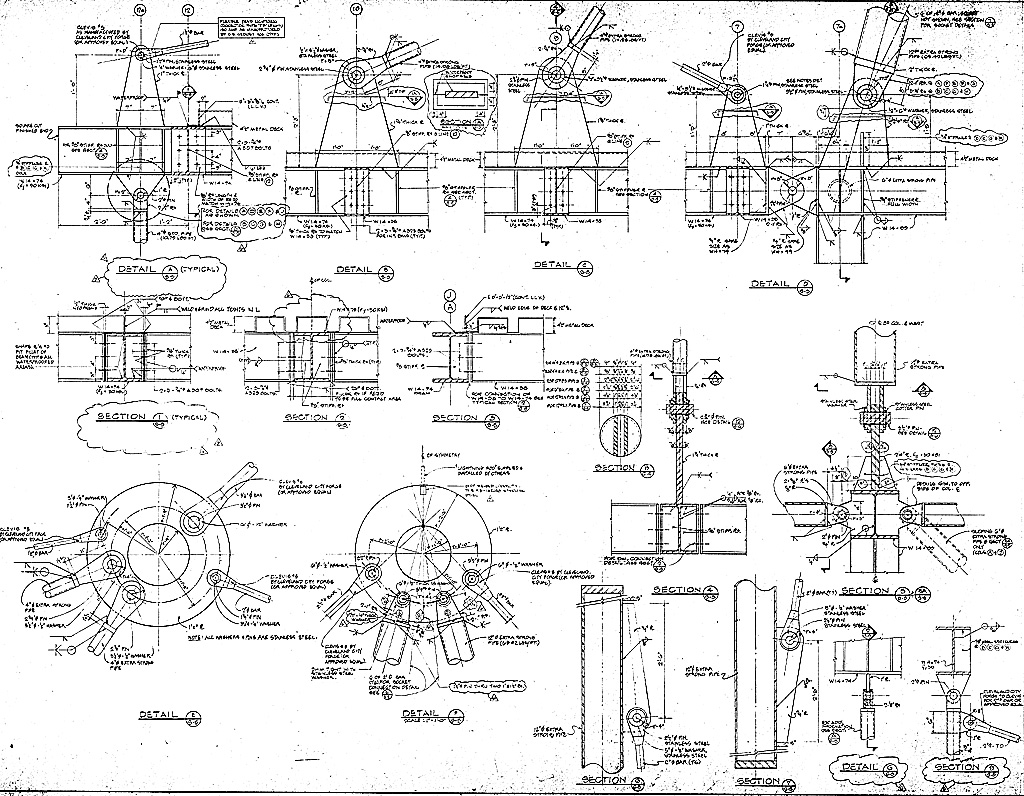

Sections
Full Document: 1M JPEG

Sections
Full Document: 1M TIFF, LZW compressed

---
