Construction Documents of the Patscenter, Page 2
Construction Documents
Structurals, Page 2
Sections and General Notes, Drawing S6

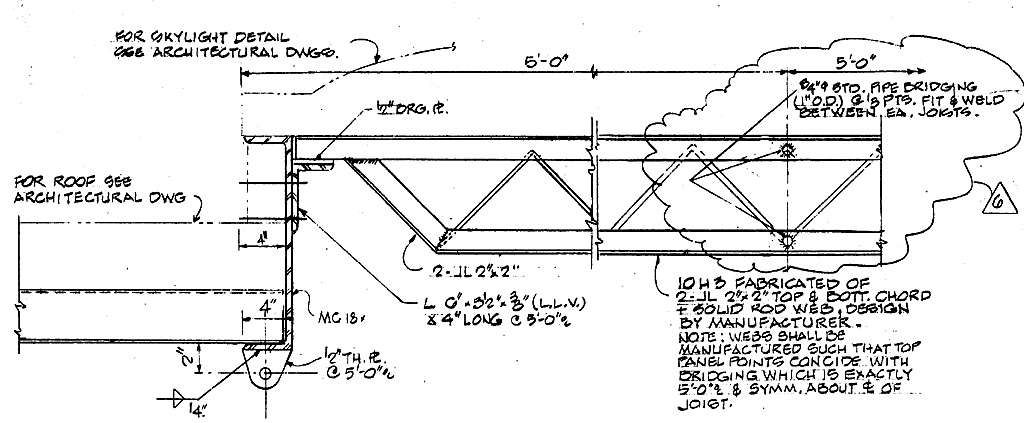

Section
Drawing S6-1, typical detail at clear span at spine
Typical Reinforcement of Roof Deck at Openings
Drawing S6-6
Typical Interior Column and Footing Detail
Drawing S6-7

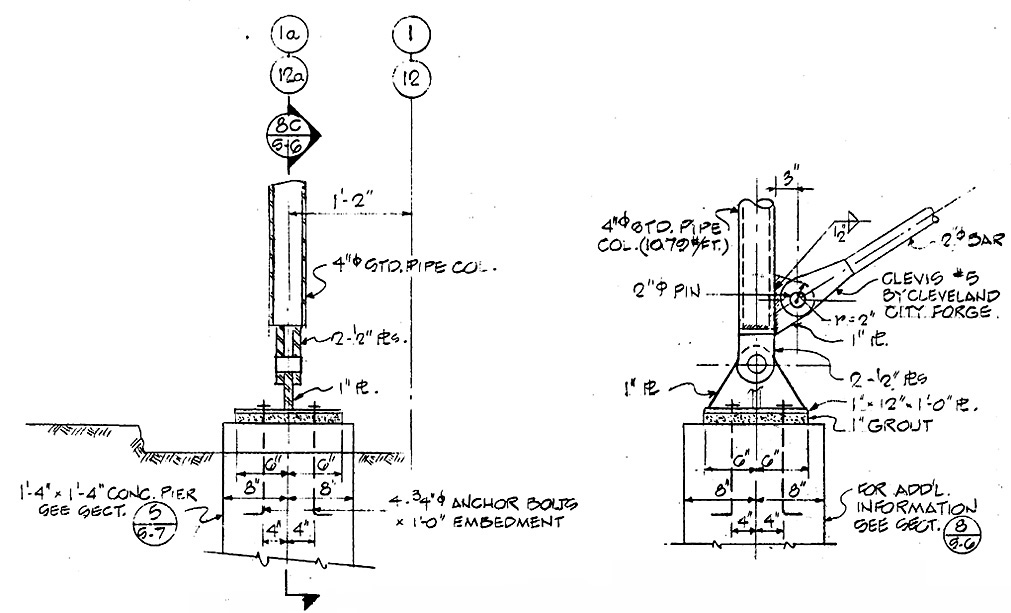

Exterior Column and Footing Detail
Drawing S6-8

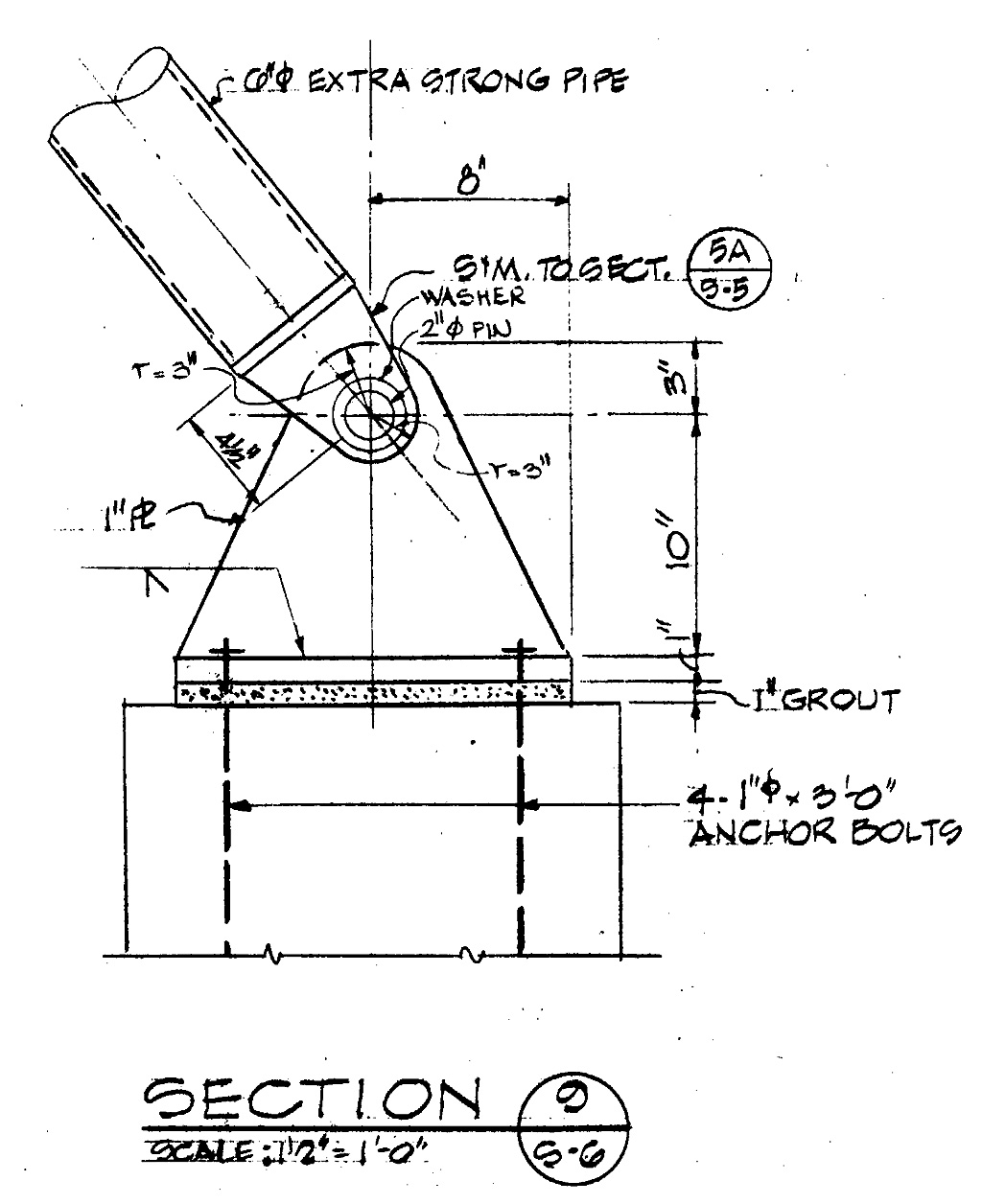

Section
Drawing S6-9, at exterior bracing member
Sections and General Notes
Full Document: 1M JPEG
Sections and General Notes
Full Document: 1M TIFF, LZW compressed
Foundation Sections and Details, Drawing S7
Section
Drawing S7-1, section at perimeter trench
Typical Interior Column Foundation
Drawing S7-3
Section
Drawing S7-5, section at exterior column foundation

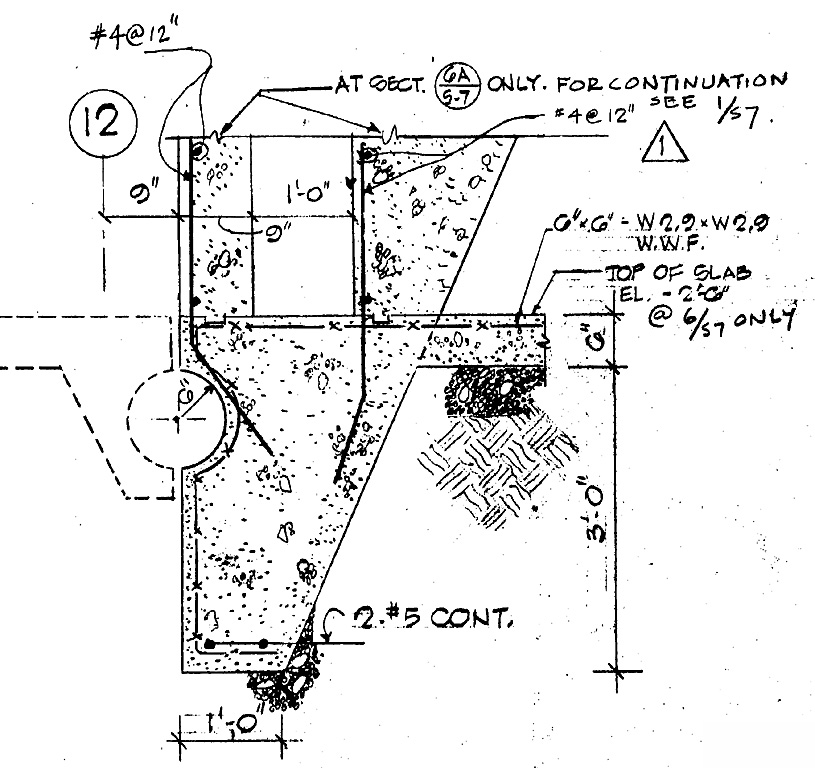

Section
Drawing S7-6
Section
Drawing S7-7, section at perimeter trench

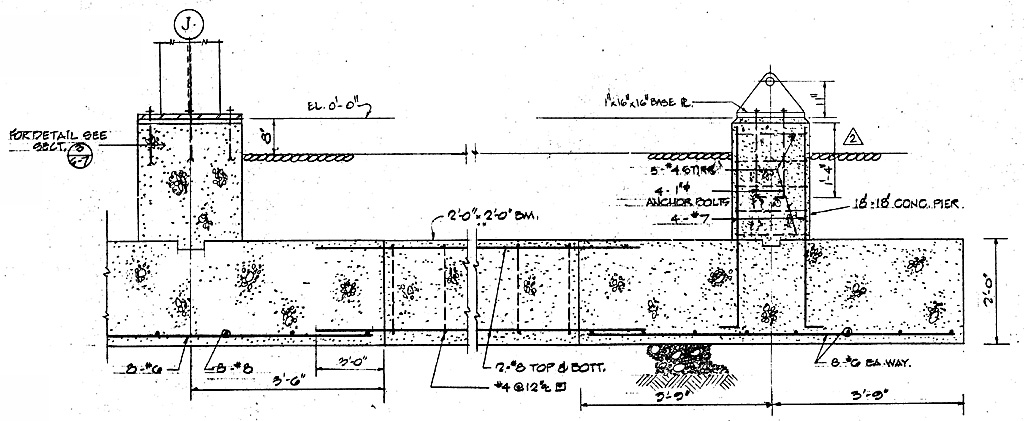

Section
Drawing 7-11, section at foundation

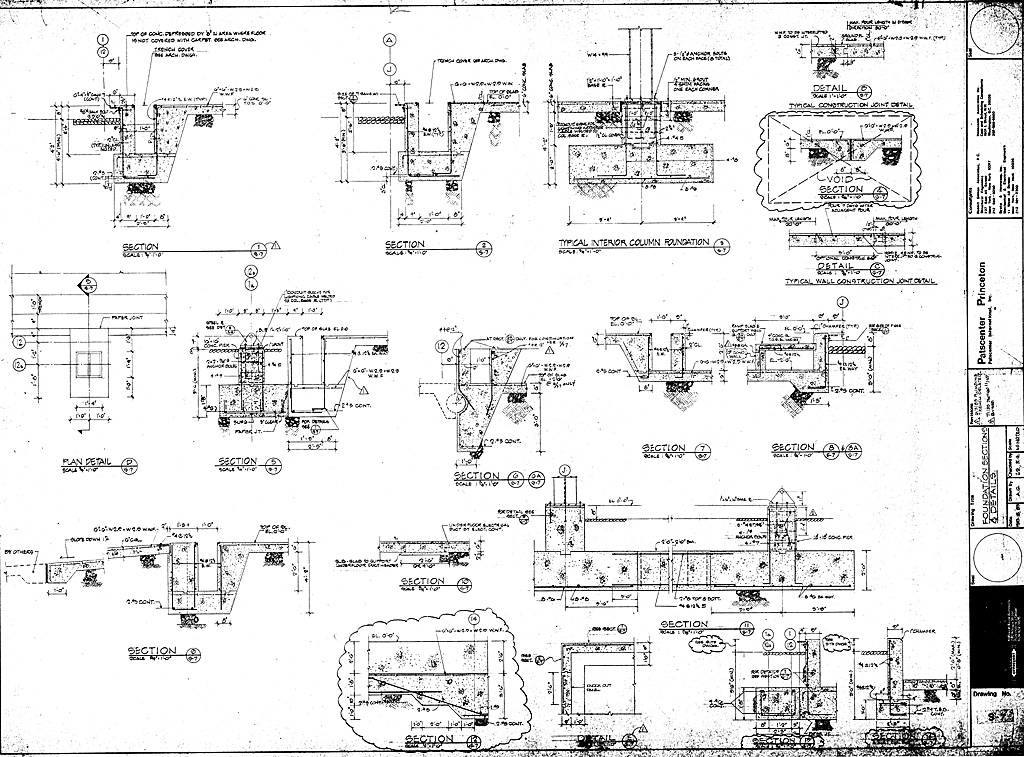

Foundation Sections and Details
Full Document: 1M JPEG
Foundation Sections and Details
Full Document: 1M TIFF, LZW compressed
