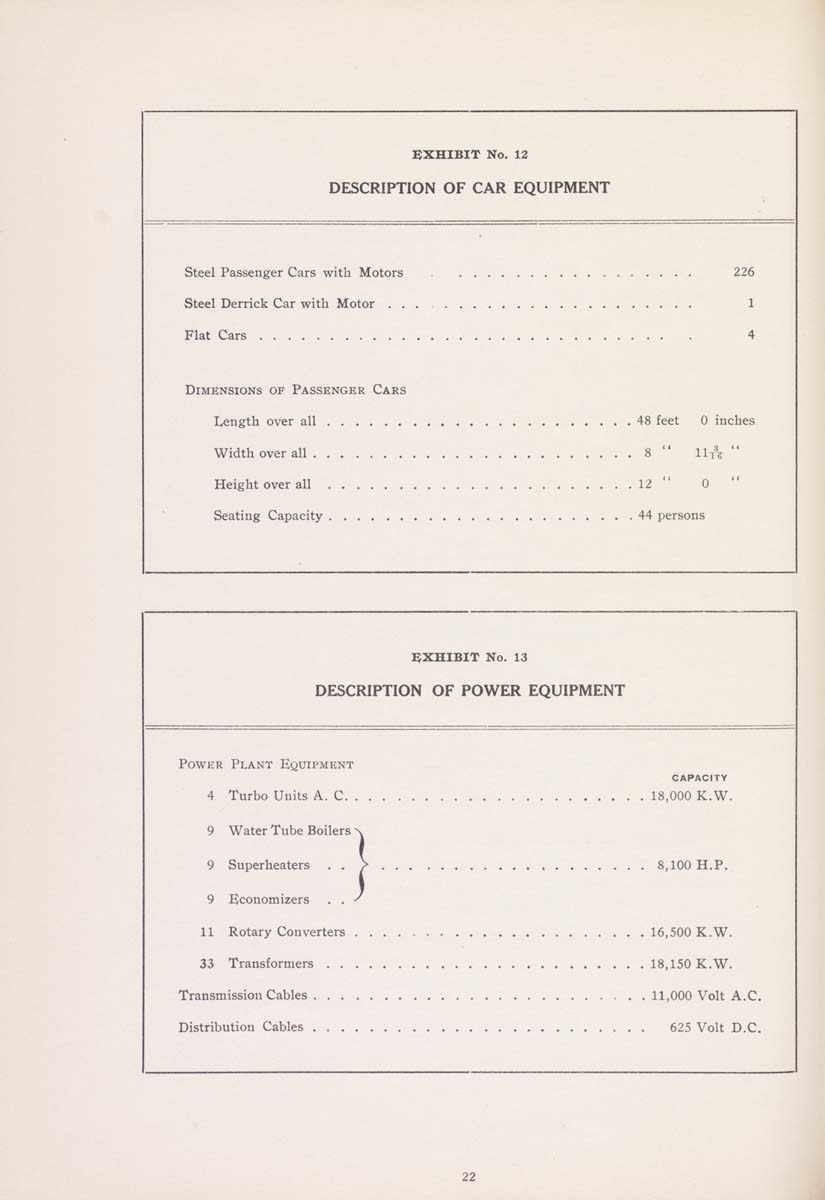

EXHIBIT No. 12

DESCRIPTION OF CAR EQUIPMENT


Steel Passenger Cars with Motors              .................          226

Steel Derrick Car with Motor.....................              1

Flat Cars..............................              4

Dimensions of Passenger Cars

Length over all......................48 feet      0 inches

Width over all.......................8   "       llA "

Height over all......................12   "        0

Seating Capacity......................44 persons


EXHIBIT No. 13

DESCRIPTION  OF POWER EQUIPMENT

PowKR Plant P^^quipment

CAPACITY

4    Turbo Units A. C......................18,000 K.W.

9    Water Tube Boilers n

9    Superheaters     ■   -    /...................8,100 H.P.

9    Economizers     .   .  -^

11    Rotary Converters.....................16,500 K.W.

33    Transformers.......................18,150 K.W.

Transmission Cables........................11,000 Volt A.C.

Distribution Cables........................       625 Volt D.C.
