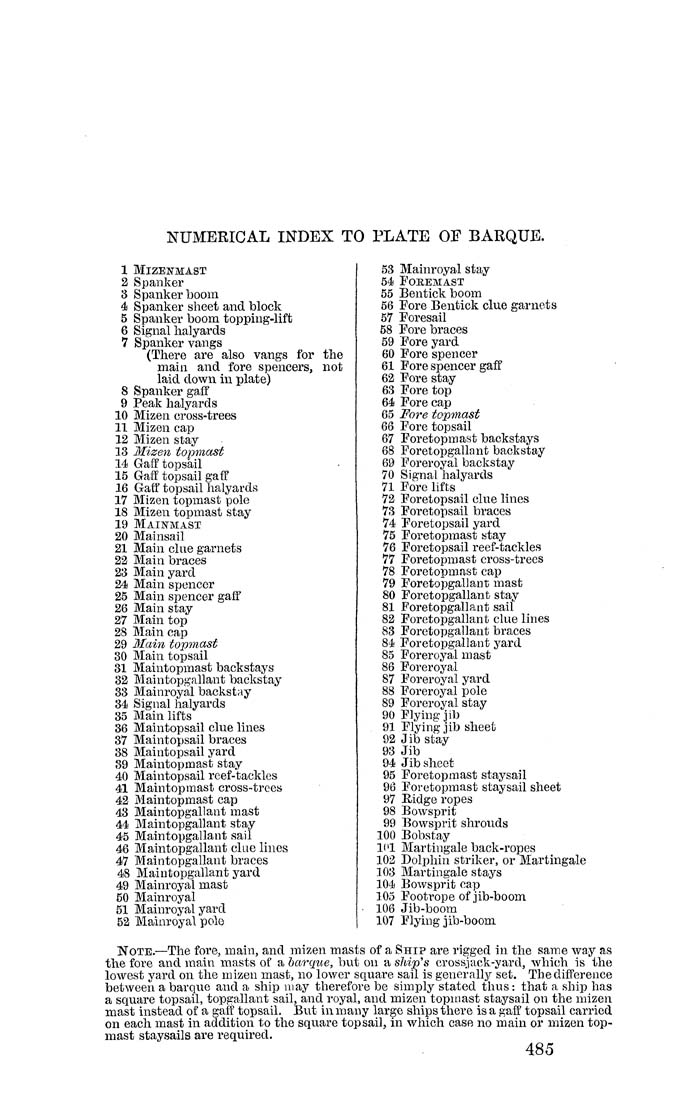

NUMERICAL INDEX TO PLATE OE BARQUE.


1  Mizenmast

2  Spanker

3  Spanker boom

4  Spanker sheet and block

5  Spanker boom topping-lift

6  Signal halyards

7  Spanker vangs

(There are also vangs for the
main and fore spencers, not
laid down in plate)

8  Spanker gaff

9  Peak halyards

10  Mizen cross-trees

11  Mizen cap

12  Mizen stay

13  Mizen topmast

14  Gaff topsail

15  Gaff topsail gaff

16  Gaff topsail lialyards

17  Mizen topmast pole

18  Mizen topmast stay

19  Mainmast

20  Mainsail

21  Main clue garnets

22  Main braces

23  Main yard

24  Main spencer

25  Main spencer gaff

26  Main stay

27  Main top

28  Main cap

29  Main topmast

30  Main topsail

31  Maintopmast backstays

32  Maintopgallant backstay

33  Mainroyal backstay

34  Signal halyards

35  Main lifts

36  Maintopsail clue lines

37  Maintopsail braces

38  Maintopsail yard

39  Maintopmast stay

40  Maintopsail reef-tackles

41  Maintopmast cross-trees

42  Maintopmast cap

43  Maintopgallant mast

44  Maintopgallant stay

45  Maintopgallant sail

46  Maintopgallant clue lines

47  Maintopgallant braces

48  Maintopgallant yard

49  Mainroyal mast
60 Mainroyal

51  Mainroyal yard

52  Mainroyal pole


53


90

91

92

93

94

95

96

97

98

99

100

ICl

102

103

104

105

106

107


Mainroyal stay

Foeemast

Bentick boom

Fore Bentick clue garnets

Foresail

Fore braces

Fore yard

Fore spencer

Fore spencer gaff

Fore stay

Fore top

Fore cap

Fore topmast

Fore topsail

Foretopmast backstays

Foretopgallant backstay

Foreroyal backstay

Signal halyards

Fore lifts

Foretopsail clue lines

Foretopsail braces

Foretopsail yard

Foretopmast stay

Foretopsail reef-tackles

Foretopmast cross-trees

Foretopmast cap

Foretopgallant; mast

Foretopgallant stay

Foretopgallant sail

Foretopgallant clue lines

Foretopgallant braces

Foretopgallant yard

Foreroyal mast

Foreroyal

Foreroyal yard

Foreroyal pole

Forero;^al stay

Flying jib

Flying jib sheet

Jib stay

Jib

Jib sheet

Foretopmast staysail

Foretopmast staysail sheet

Ridge ropes

Bowsprit

Bowsprit shrouds

Bobstay

Martingale back-ropes

Dolphin striker, or Martingale

Martingale stays

Bowsprit cap

Footrope of jib-boom

Jib-boom

Flying jib-boom


Note.—The fore, main, and mizen masts of a Shi? are rigged in the same way as
the fore and main masts of a barque, but on a ship's crossjack-yard, which is the
lowest yard on the mizen mast, no lower square sail is generally set. The difference
between a barque and a ship may therefore be simply stated thus: that a ship has
a square topsail, topgallant sail, and royal, and mizen topmast staysail on the mizen
mast instead of a gaff topsail. But in many large ships there is a gaff topsail carried
on each mast in addition to the square topsail, in which case no main or mizen top¬
mast staysails are required.

485
