James A. Culbertson House (Pasadena, Calif.)
Residence for James A. Culbertson, Esq., Pasadena, Cal. : / Greene and Greene, Architects.
1902.
15 drawings
various media
39.4 x 26 7/8cm. (15 1/2 x 68.3 in.) or smaller
Job no. 90.
Scale varies.
This section consists of 7 ink drawings on cloth with watercolor wash appleid to the verso, 7 ink drawings on cloth, and 1
pencil drawing on paper.
Index Terms
Subjects:
1.
Houses.
2.
James A. Culbertson house (Pasadena, Calif.)
Geographic Names:
1.
Pasadena (Calif.)
Genre/Media:
1.
Reflected ceiling plans.
2.
Detail drawings.
3.
Orthographic drawings.
4.
Ink drawings.
5.
Watercolor wash drawings.
6.
Pencil drawings.
Associated Names:
1.
Culbertson, James A.
List of Drawings
(View All Thumbnails)
1.
NYDA.1960.001.00905.
Foundation plan, section F-G [through stairs], section A-B [through pier, sections through] chimney footing [and] girders
: No. 1
July 25th, 1902.
JPEG | Zoom
2.
NYDA.1960.001.00906.
Foundation plan, section A-B [through pier, section through] chimney footing : No. 1
JPEG | Zoom
3.
NYDA.1960.001.00907.
First floor plan : No. 2
JPEG | Zoom
4.
NYDA.1960.001.00908.
First floor plan : No. 2
JPEG | Zoom
5.
NYDA.1960.001.00909.

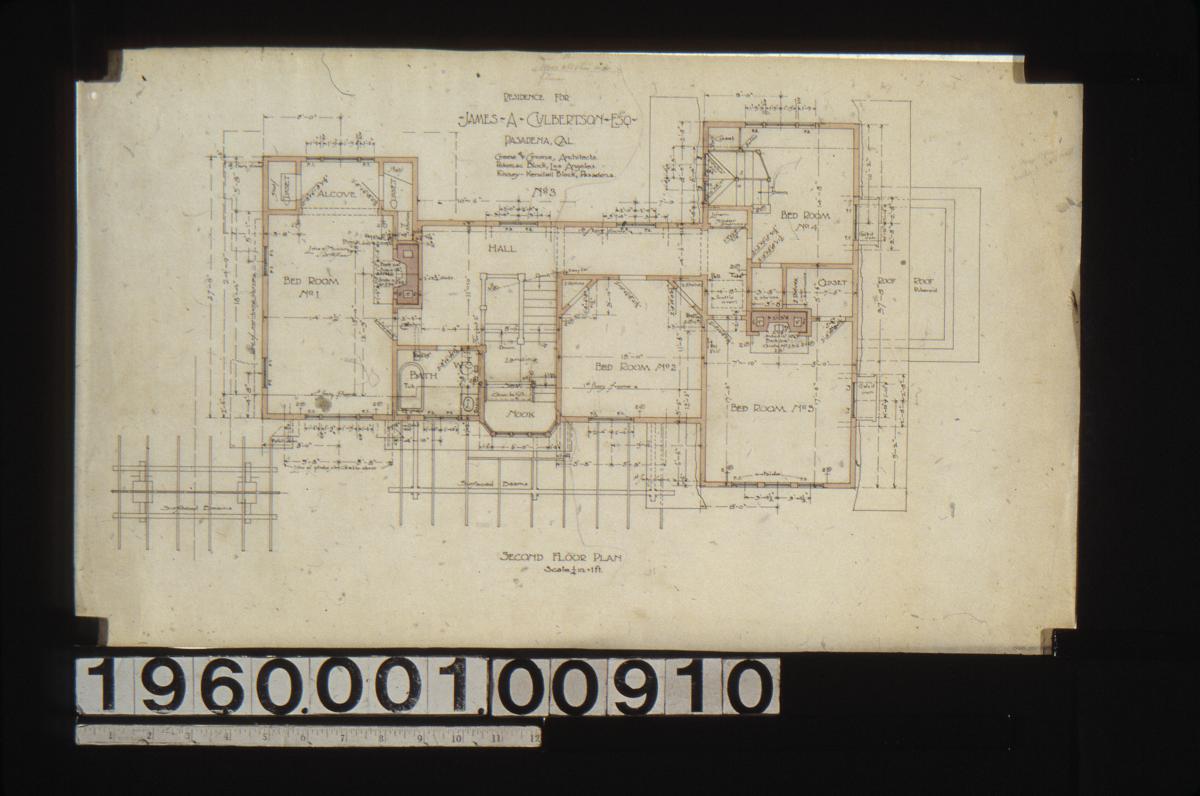

Second floor plan : No.3
JPEG | Zoom
6.
NYDA.1960.001.00910.
Second floor plan : No. 3
JPEG | Zoom
7.
NYDA.1960.001.00911.

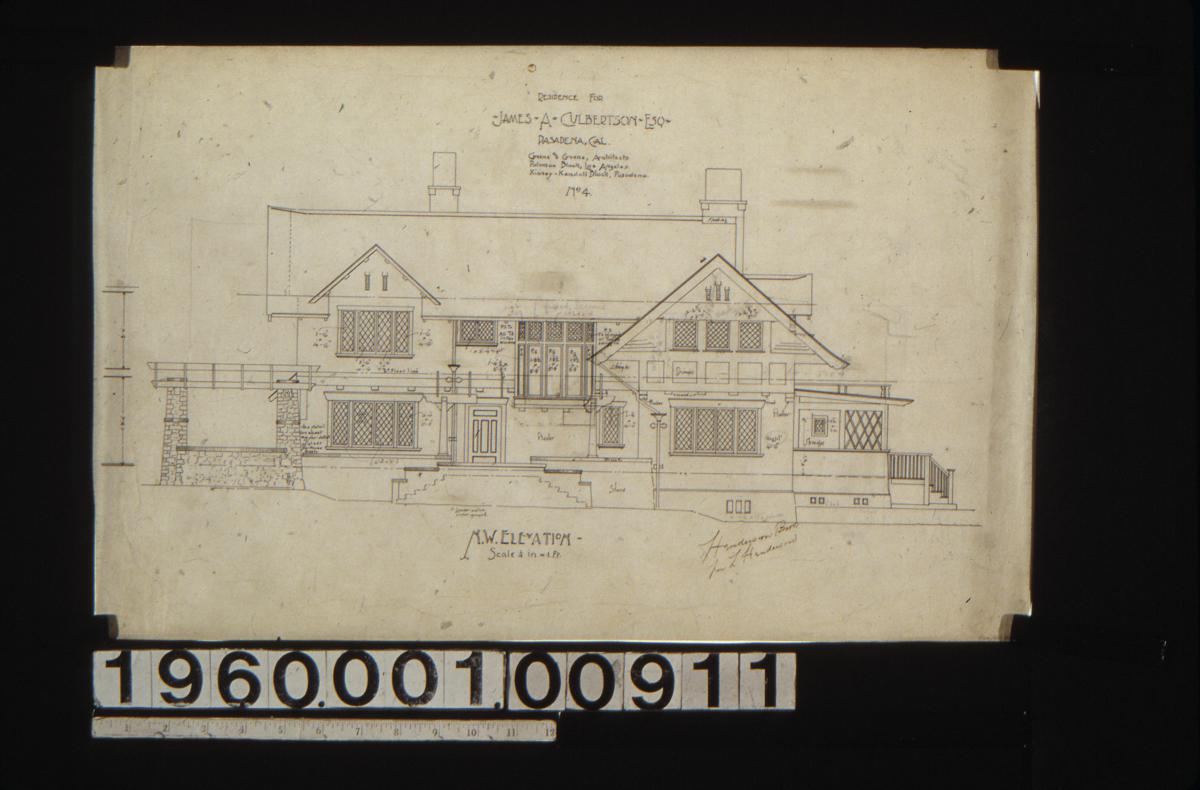

N[orth] w[est] elevation : No. 4
JPEG | Zoom
8.
NYDA.1960.001.00912.
N[orth] w[est] elevation : No. 4
JPEG | Zoom
9.
NYDA.1960.001.00913.
N[orth] e[ast] elevation, s[outh]w[est] elevation : No.5
JPEG | Zoom
10.
NYDA.1960.001.00914.
S[outh] e[ast] elevation, [section through wall] : No. 6
JPEG | Zoom
11.
NYDA.1960.001.00915.
S.E. elevation, [section through wall] : No. 6
JPEG | Zoom
12.
NYDA.1960.001.00916.

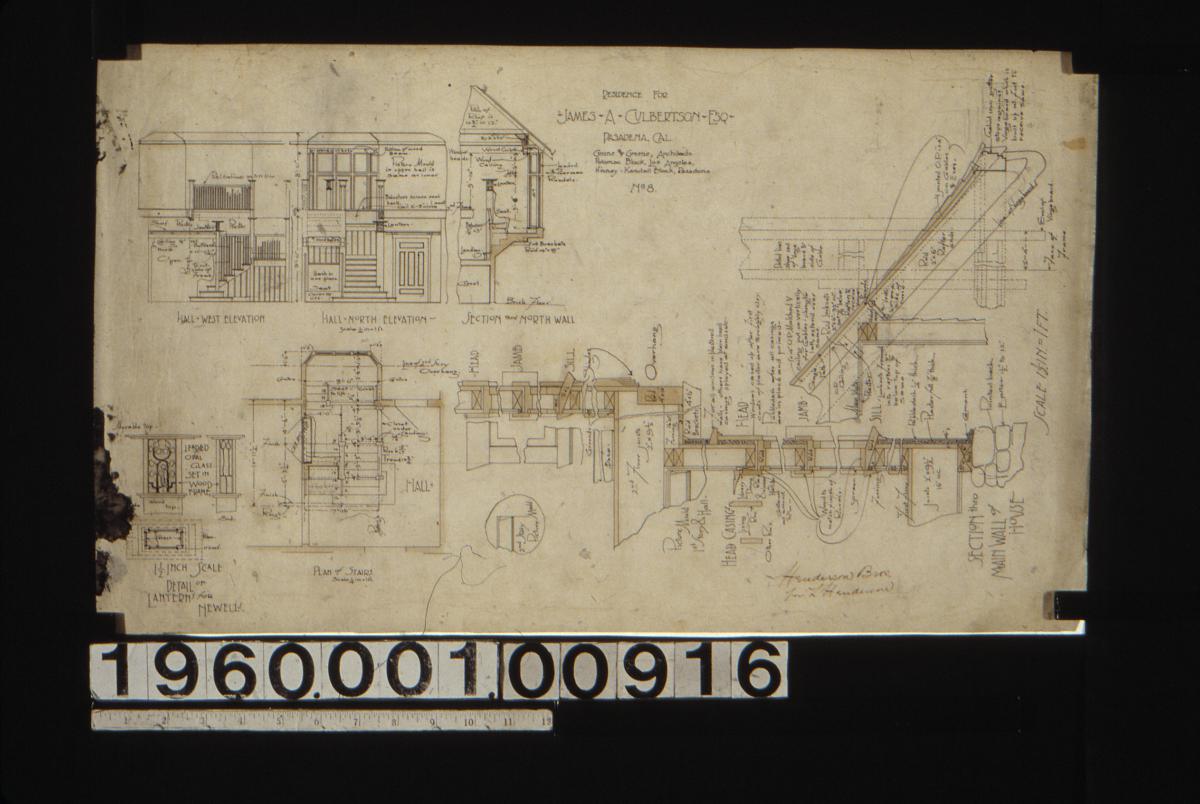

Detail of laterns for newels ; plan of stairs ; hall -- west elevation, north elevation, section thro' main north wall ; section
thro's main wall of house : No. 8
JPEG | Zoom
13.
NYDA.1960.001.00917.
1/4" scale details of interior finish -- S.W. elevation of bedr'm no. 1, S.E. end of bedr'm no., S.E. end of dining room.
library - showing bookcase (case ommitted), N.E. side of living r'm [in elevation and] section, S.W side of living r'm ceiling,
N. end of Living r'm (S. end finisheds same) No. 9
JPEG | Zoom
14.
NYDA.1960.001.00918.
1/4 in. scale details of living rrom -- elevation[s] of east side, north end, west side ; plan of ceiling
JPEG | Zoom
15.
NYDA.1960.001.03636.
Plan of [front of] grounds [elevation of outer wall and fence]
Encapsulated in mylar.
JPEG | Zoom
|
