Administration Guide

DB2 SP HACMP ES Installation

To assist in the planning for the installation of HACMP ES on DB2 UDB, a step-by-step overview of the installation and migration processes is presented here.

DB2 SP HACMP ES New Installation

When planning for and implementing HACMP ES in an environment where you have not installed HACMP before, you should consider the following tasks:

1. Install the AIX operating system on each of the SP nodes according to the SP Installation and Administration Guides. Ensure proper paging space is available on both the control workstation and each of the SP nodes. Also ensure switch configuration has been considered and implemented along with any other modifiable configuration parameters. In addition, SP monitoring (Perspectives) you desire to use should be put in place. Ensure the SP dsh, pcp, and pexec commands work.

2. Design your database layout. This should, at a minimum, include the number of nodes to be used, the mapping of DB2 database partitions to physical nodes, the disk requirements per node/partition, and table space considerations. You should also consider who the main DB2 instance owner will be and the access authorization this and other users will require.

3. Plan your external SSA disk configuration including redundant adapters, mirrored disks, and the twin-tailing of disks.

4. Using your database layout and SSA configuration, complete the HACMP worksheets found in the HACMP Planning, Installation, and Administration Guides. Using these worksheets, you should be able to complete the worksheets later in this document.

5. Implement your external SSA disk configuration. Make sure microcode levels are consistent across all drives and use the Maymap utility for validating and filling in any gaps in your worksheets.

6. Install DB2 UDB EEE on each SP node.

7. Install HACMP ES on each SP node.

8. Install the DB2 UDB EEE HACMP ES on SP Package using the db2_inst_ha command.

9. Create the DB2 main instance user and validate it can access all nodes. This is not a highly available user at this point. This can be temporarily a SP user on the SP control workstation.

10. Create your DB2 instance and database. Ensure it is operating by using db2start command. Then ensure it is stopped by using db2stop before proceeding to the next step.

11. If you wish to implement or load the database before adding HACMP, then you should do this now.

12. Configure HACMP ES on the SP nodes topology and resource groups according to the HACMP worksheets and the information in this document.

13. Beginning with your NFS server node for the DB2 main instance user, change this user (by modifying /etc/security/user and /etc/passwd on all nodes in accordance with what is specified in this document. This user will become a highly available NFS user; and this node and its backup will update /etc/exports. All nodes will be able to mount this directory using NFS (with an entry in /etc/filesystems on each node) through the switch alias IP addresses.

14. "Tar" the home directory of the main instance user and "un-tar" the home directory in the new location.

15. Create a NFS filesystem on each of the SP nodes to mount a new main instance home directory.

16. Start HACMP on the NFS server node. Verify that it comes up successfully by investigating /tmp/hacmp.out. The ha_mon command can be used to monitor this file as it is written.

17. Bring up the other nodes one at a time; verifying each successful completion by investigating /tmp/hacmp.out. The ha_mon command can be used to monitor this file as it is written.

18. Setup the optional monitoring through Perspectives and Problem Management.

19. Validate failover functionality on each node by simulating a concurrent maintenance action on each node. The ha_cmd nodenum TAKE can be used to stop HACMP gracefully with takeover. Verify the takeovers and reintegrations succeed by interrogation of /tmp/hacmp.out and your monitoring tools.

DB2 SP HACMP ES Migration

If you are migrating from a non-HACMP installation to one with HACMP, you should review the step-by-step overview that follows:

1. Convert your existing external disks to a highly-available, twin-tailed, mirrored configuration. Add any extra hardware and disks to achieve this configuration remembering that names of different logical volumes on different nodes must be unique when they are twin-tailed. This applies to volume groups, logical volumes, and filesystems.

2. Complete the HACMP planning and the related worksheets. Also, complete the worksheets in this document.

3. Implement your external SSA disk configuration changes. Ensure microcode levels are consistent across all drives and use the Maymap utility to validate and eliminate any gaps in the worksheets.

4. Install HACMP ES on each SP node.

5. Install the "DB2 UDB EEE HACMP ES on SP" Package using the db2_inst_ha command.

6. Configure HACMP ES on the SP nodes topology and resource groups according to the HACMP worksheets and the information in this document.

7. Beginning with your NFS server node for the DB2 main instance user, change this user (by modifying /etc/security/user and /etc/passwd on all nodes in accordance with what is specified in this document. This user will become a highly available NFS user; and this node and its backup will update /etc/exports. All nodes will be able to mount this directory using NFS (with an entry in /etc/filesystems on each node) through the switch alias IP addresses.

8. "Tar" the home directory of the main instance user and "un-tar" the home directory in the new location.

9. Create a NFS filesystem on each of the SP nodes to mount a new main instance home directory.

10. Start HACMP on the NFS server node. Verify that it comes up successfully by investigating /tmp/hacmp.out. The ha_mon command can be used to monitor this file as it is written.

11. Bring up the other nodes one at a time; verifying each successful completion by investigating /tmp/hacmp.out. The ha_mon command can be used to monitor this file as it is written.

12. Setup the optional monitoring through Perspectives and Problem Management.

13. Validate failover functionality on each node by simulating a concurrent maintenance action on each node. The ha_cmd nodenum TAKE can be used to stop HACMP gracefully with takeover. Verify the takeovers and reintegrations succeed by interrogation of /tmp/hacmp.out and your monitoring tools.

DB2 SP HACMP ES Worksheets

The worksheets below are designed to be used with the HACMP worksheets that were filled out in preparation for your configuration.

In each of two cases, first a worksheet is filled out to give you an idea of how to plan your configuration. Secondly, a blank sample worksheet is provided for your use.

The database configuration on external disks documented in the first sample worksheet is shown in the following figure. The database statement used to create the database was:

   db2 create database pwq on /newdata

Both SSA external adapters and external SSA disks are mirrored and twin-tailed for logical volumes with no single point of failure. The diagram pictured is quite similar to the output of the maymap command. Maymap is a utility available through AIXTOOLS to show the external SSA disk configuration. Use of this utility is recommended as part of planning your setup.

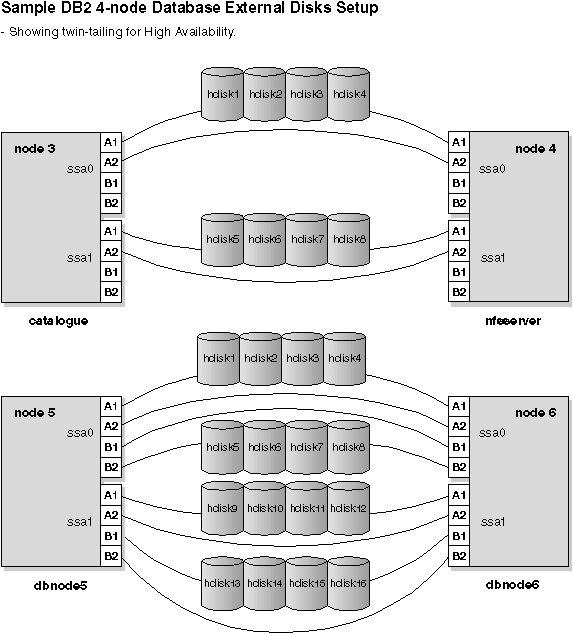

Figure 78. Sample DB2 4-node Database External Disks Setup

Before you review the following table, you are expected to have thoroughly read the HACMP documentation regarding the quorum settings on volume groups and mirrored write consistency settings on logical volumes. The settings used for both will directly affect your availability and performance. Ensure you review these settings and understand their implications. The typical setting for both "quorum" and "mirrored write consistency" is "off".

Table 51. HACMP Volume Groups, Logical Volumes, and Filesystems

SP Node	Volume Group Name	PP Size (MB)	Logical Volume Name	# of PPs	Cop -ies	hdisk list	Filesystem Mount Point (MB)	Filesystem Log logical volume	Node Description and backup	user owner of /dev logical device
3	havg3	8	hlv300	10	2	hdisk1 hdisk5	/newdata /pwq /NODE0003	hlog301	Catalognode mount point; node 4	root *
3	havg3	8	hlog301	1	2	hdisk1 hdisk5	N/A	N/A	Catalognode jfslog; node 4	root *
3	havg3	8	hlv301	10	2	hdisk2 hdisk6	N/A	N/A	Catalognode rawtemp space; node 4	pwq **
4	havg4	8	hlv400	10	2	hdisk3 hdisk7	/dbmnt	hlog401	nfsserver pwq home; node 3	root *
4	havg4	8	hlog401	1	2	hdisk3 hdisk7	N/A	N/A	nfsserver jfslog; node 3	root *
5	havg5	8	hlv500	10	2	hdisk1 hdisk9	/newdata/ pwq/ NODE0005	HLOG501	Dbnode5 mount point; node 6	root *
5	havg5	8	hlog501	1	2	hdisk1 hdisk9	N/A	N/A	Dbnode5 jfslog; node 6	root *
5	havg5	8	hlv501	10	2	hdisk2 hdisk10	N/A	N/A	Dbnode5 raw temp space; node 6	pwq **
5	havg5	8	hlv502	100	2	hdisk2 hdisk10	N/A	N/A	Dbnode5 raw table space; node 6	pwq **
5	havg5	8	halv503	100	2	hdisk3 hdisk11	N/A	N/A	Dbnode5 raw table space; node 6	pwq **
5	havg5	8	halv504	100	2	hdisk3 hdisk11	N/A	N/A	Dbnode5 raw table space; node 6	pwq **
5	havg5	8	halv505	100	2	hdisk4 hdisk12	/dbdata5	hlog501	Dbnode6 system table space; node 6	root *
6	havg6	8	hlv600	10	2	hdisk5 hdisk13	/newdata/ pwq/ NODE0006	hlog601	Dbnode6 mount point; node 5	root *
6	havg6	8	hlog601	1	2	hdisk5 hdisk13	N/A	N/A	Dbnode6 jfslog; node 5	root *
6	havg6	8	hlv601	10	2	hdisk6 hdisk14	N/A	N/A	Dbnode6 raw temp space; node 5	pwq **
6	havg6	8	hlv602	100	2	hdisk6 hdisk14	N/A	N/A	Dbnode6 raw table space; node 5	pwq **
6	havg6	8	hlv603	100	2	hdisk7 hdisk15	N/A	N/A	Dbnode6 raw table space; node 5	pwq **
6	havg6	8	hlv604	100	2	hdisk7 hdisk15	N/A	N/A	Dbnode6 raw table space; node 5	pwq **
6	havg6	8	hlv605	100	2	hdisk8 hdisk16	/dbdata6	hlog601	Dbnode6 system table space; node 5	root *
Notes: * jfs filesystem logical volumes and logs keep root permissions. ** raw database spaces get database user permissions on /dev raw file entries (/dev/rxxxx).

Table 52. HACMP Volume Groups, Logical Volumes, and Filesystems (blank)

SP Node	Volume Group Name	PP Size (MB)	Logical Volume Name	# of PPs	Cop -ies	hdisk list	Filesystem Mount Point (MB)	Filesystem Log logical volume	Node Description and backup	user owner of /dev logical device

Table 53. Planning HACMP NFS Server

SP Node	External Filesystem	Back up node	SP switch boot and service IP alias pairs	filesystem to mount (/etc/ filesystems)	filesystem to specify as database home directory	addresses to export filesystem to (/etc/ exports)
3	/dbmnt	4	nfs_boot_3 nfs_client_3	nfs_server:/ dbmnt as /dbi	/dbi/pwq	nfs_boot_3 nfs_client_3 nfs_server_boot nfs_server nfs_boot_5 nfs_client_5 nfs_boot_6 nfs_client_6
4	/dbmnt	3	nfs_server_boot nfs_server	nfs_server:/ dbmnt as /dbi	/dbi/pwq	nfs_boot_3 nfs_client_3 nfs_server_boot nfs_server nfs_boot_5 nfs_client_5 nfs_boot_6 nfs_client_6
5	N/A	N/A	nfs_boot_5 nfs_client_5	nfs_server:/ dbmnt as /dbi	/dbi/pwq	N/A
6	N/A	N/A	nfs_boot_6 nfs_client_6	nfs_server:/ dbmnt as /dbi	/dbi/pwq	N/A
Notes: /etc/passwd must be the same on all nodes. This can be synchronized from the control workstation. Ensure the external filesystem has the permission of the database instance owner. The /etc/filesystems must have the mount parameters: hard, bg, intr, and rw. The /etc/exports will have -root=ip1:ip2:ip3 only on the server and its backup.

Table 54. Planning HACMP NFS Server (blank)

SP Node	External Filesystem	Back up node	SP switch boot and service IP alias pairs	filesystem to mount (/etc/ filesystems)	filesystem to specify as database home directory	addresses to export filesystem to (/etc/ exports)
