Bio C2005/F2401x     Lec.2         L. Chasin     September 7, 2006

1 multipage handout. Please bring this handout to class for the next two weeks.

Recitations start next week. Look for recitation assignment lists and times on the Web site by Monday at noon.  No quiz the first week.

Any questions on the mechanics of the course?

Outline:

Water:
Water molecular structure used as a springboard to discuss all weak bonds:

Chemical bonds (5):

covalent (strong)
hydrogen (weak)
ionic (~weak)
hydrophobic (weak)
van der Waals (weak)

Organic acids and bases

Macromolecules vs. small molecules
High molecular weight vs. low molecular weight
Polymers vs. monomers
Biosynthetic pathways

Macromolecules: 1) Polysaccharides
Monomers are sugars; sugars are carbohydrates
Glucose
Ring formation
Chair form
Anomers: alpha and beta glucose
Glycosidic bonds
Disaccharides
Polysaccharides: cellulose and starch
Other sugars

We now start on the problem of how the bacterium E. coli reproduces, how it grows; how we get two E. coli cells from one. First we need to know what are the chemicals that need to be made if we are to create one net E. coli cell.   We need to turn to the nature of the chemicals that make up an E. coli cell, so we know what it is that we need to make in an hour.

We will start with the most abundant and most important molecule in the cell, not an organic molecule, but water, H2O.  We will use our discussion of the water molecule as a springboard for introducing different types of chemical bonds that are important in biology.   Continuing our discussion of H-bonds that water makes to other molecules, from last time:

Are there H-bonds in compounds other than water? Sure. Consider ethanol (alcohol), which has an hydroxyl group (-OH, see functional groups handout; we will be discussing almost all of these functional groups at one time or other). Compare CH3-CH2-OH, vs. ethane (CH3-CH3) which does not have this polar hydroxyl group. The hydroxyl group is polar, for the same reason as in water. So it can H-bond to water when it is in an aqueous solution (as most biological molecules are).  It is for this reason that most compounds with polar groups are very soluble in water. That is, they are constantly forming these weak bonds to the water molecules.

Note that carbon always forms 4 bonds.

And the H-bonds are not limited to oxygen in O-H groups: nitrogen is also more electronegative than hydrogen, as in an amide (-CO-NH2), and oxygen is more electronegative than carbon (as in the carbonyl in the same amide):

("R" is shorthand for any general organic group, one that is not necessarily relevant for the discussion at hand.)



How about H-bonds between organic molecules? Sure, if they can find each other: e.g., ethanol-acetamide, and the orientation is important here, as with water. (If the amide in the diagram were acetamide, the R would be CH3) [Purves6ed 2.9].

In aqueous solutions such interactions will always be competing with water molecules, which are usually more abundant....

(Water molecular structure used as a springboard to discuss all weak bonds:)

Having introduced the subject of weak bonds, I want to now complete the discussion of bonds by introducing all of the bonds that play important roles in the behavior of biological molecules. There are five:


::
Chemical bonds (5)

Covalent Hydrogen Ionic Van der Waals Hydrophobic forces
~100 kcal/mole ~3 kcal/mole ~ 5 kcal/mole ~1 kcal/mole ~3 kcal/mole
electrons shared water-water full charge transfer fluctuating not a bond per se
organic-water can attract H-bond induced dipole entropy driven
organic-organic strong in dry crystal at close range only only works in water
strong weak, orientation sensitive weak in water weak weak

The weak bonds are going to be all-important for biochemical processes.

:: covalent (strong)
1. covalent bonds: electrons shared between 2 atoms, strong [bond energy of ~ 100 kcal/mole] = energy needed to pull the 2 bonding atoms apart]

calorie: energy needed to heat 1 gram (1cc) of  water 1 degree Centigrade

kilocalorie (kcal) = 1000 times 1 calorie

Calorie (with a capital C) = 1 kcal = dietary Calorie

:: hydrogen (weak)
2. hydrogen bonds:

water-water [~2-3 kcal/mole]

organic molecule - water

organic - organic molecule

orientation-dependent


{Q&A}

:: ionic (~weak)
 3. Ionic bonds: Full charge transfer; NaCl = strong in the dry crystal (need a hammer to break it)

But ionic bonds are weak in water. Why? Water can H-bond to the charged ions: Na+ and Cl-.  This process is called solvation [Purves6ed 2.11].

So, is this bond between water and the ion an H-bond or an ionic bond? Half and half, =  "polar interactions."  Maybe 4 kcal/mole.

 --- 3A. Organic molecules can form ions too (acids and bases):

(Organic acids and bases)
ACIDS: molecules that are able to lose a proton (hydrogen ion) easily, such as a carboxyl group (a carboxylic acid):

R-CO-OH  ---> R-COO- (net charge = -1), + H+.

BASES: molecules that are able to take up a proton easily (protons being always around to some extent in water [ e.g., at 10-7M at pH7]), such as amines:

R-NH2 + H+ --> R-NH3+

Carboxylic acids will be the only organic acids and amines will be the only organic bases we will discuss this semester

Acidity and basicity are measured by pH  (= -log[H+]) [Purves6ed 2.18]

Under the right conditions, ionic bonds can form between two organic ions, with a bond strength of about 5 kcal/mole (in water):

Where are we going with all this chemistry, and these weak bonds? We started describing the molecules of E. coli, with the idea that we have to know what we have, in order to know what we have to make, to replicate an E. coli cell. The weak bonds I am cataloging for you now show how these molecules can interact - but as we proceed to consider larger and larger molecules, they will help us to understand the structure of the individual large molecules, such as proteins and DNA. So this is more than just a listing, the weak bonds will be very important, as we will see in the next few lectures.

 :: van der Waals (weak)
4. Van der Waals bonds: Exist between any 2 molecules

Only effective at very close range (e.g., 0.1 nm, or 1A).

Fluctuating induced dipole.  Fluctuating, induced,  dipole.

~1 kcal/mole.

These are the weakest of the bonds we'll discuss, about 1 kcal/mole, but they are able to form between any two molecules. Van der Waals interactions form between fluctuating induced dipoles. Take for example two methane molecules (CH4) , where the C and H have about the same electronegativity, so there is no intrinsic charge separation. A momentary negative charge can develop in the electron distribution around one of these atoms, and this charge will induce the opposite charge in a nearby atom's electron cloud. These bonds are only effective at extremely short range (~ "touching"). Indeed, the size of an atom in space is often estimated by its "van der Waals radius." (Closest approach before repulsion between nuclei sets in).




:: hydrophobic (weak)
5. Hydrophobic interactions ("bonds")

Not really bonds, but often referred to as such.

Caused by the effects of water on the association of other molecules.

Non-polar (apolar) molecules are unable to form H-bonds with water.

E.g., octane, CH3-(CH2)6-CH3.  (~= gasoline)

Water molecules surrounding an apolar molecule take on a relatively ordered structure compared to the constantly switching H-bonding patterns made with other water molecules.

This ordered "cage" structure is minimized by interfacing the apolar molecules with each other:

Systems will change so as to maximize entropy (disorder).   Even though the octane molecules are more ordered when aggregated, the increase in disorder of the water molecules that become freed from the cage structure is so great that the entropy of the system is greater with the octane molecules coalesced.  This increase in entropy provides a hydrophobic force equivalent to about 2-3 kcal/mole (per mole of octane, in this case).



The actual bonds between the octane molecules in a coalesced glob in water are just the van der Waals bonds.

This state of affairs is not intuitively obvious.

The bottom line is that apolar groups will tend to associate with other apolar groups in aqueous solutions. Click here for another view of hydrophobic interactions. [methane] [watercage].  These hydrophobic interactions are of paramount importance in biology, as they are responsible for the integrity of the cell membrane, for example, as we shall see.  Thus the very definition of a cell depends on these forces.


{Q&A}

This finishes our introduction to the chemical bonds that will be important in our consideration of biological molecules.


Let's get back to the chemical make-up of an E. coli cell:  Water was molecule #1.

(Macromolecules vs. small molecules: High molecular weight vs. low molecular weight)
We have about 5000 more different molecules to consider. Before proceeding to #2, let's place all molecules into 2 classes:

1) small; and 2) large.

Small ~< 500 daltons, or molecular weight units), corresponding to about 50 atoms; Large ~> 5000 daltons (~500 atoms).
These size distinctions are not sharp boundaries, just a rough gauge.

The large molecules are usually called macromolecules. The small molecules are just called small molecules.

Small = e.g., a molecule like propylene, a synthetic organic chemical: CH3-CH=CH2. What is a large version of this small molecule? It is not like the picture on the left (where each circle represents propylene):

 ( Incorrect picture)





Rather, polypropylene, a familiar plastic, is a linear polymer of propylene: O-O-O-O-O-O-O-O-O-O-O-.

(Polymers vs. monomers)
Virtually all of the biological macromolecules are built this same way: they are linear polymers of small molecules. This simplifies matters greatly.

Nomenclature: Monomers --> di-mers (two small molecules linked together covalently) --> tri-mers  --> tetramers, etc. ….--> oligo-mers (moderate numbers of repeating units),   --> poly-mers (lots of repeating units).

The monomers could be all the same, as in certain polysaccharides like cellulose (glucose (n)) or they could be different, the extreme example being proteins, where there is a mixture of 20 different monomers present.

While this greatly simplifies our consideration of these large molecules, there is plenty of complexity left.

Some of the important small molecules in the cell are these monomers, the basic building blocks of the biological polymers. The polymers, or macromolecules, comprise 4 classes:

polysaccharides,

lipids,

nucleic acids, and

proteins.

 The total number of such monomers is about 50..... Pretty simple...

Now there are about 15 or so other small molecules that serve other functions (they are not monomers that will end up in polymers). These are co-factors that are important in the catalysis of chemical reactions in the cells ( ~ vitamins). So this brings us to ~65 different small molecules so far.

Then, necessary but less generally important, are the "intermediates".  All the carbon in E. coli can flow from glucose via biochemical pathways (see flow handout for overview):

This is what glucose looks like :

 For instance, This is what one of the monomers of a protein looks like:

These molecules are quite different.  In the cell, a molecule of glucose is converted, through a series of chemical transformations into the product, (here, alanine), a monomer for building proteins.  Intermediate types of molecules are created along the way on this pathway (a metabolic pathway). In general,

glucose --> A --> B --> C --> D --> E --> monomer -->  polymer

[A, B, C, D, and E here are the intermediates.]

These pathways are of various lengths. If we take 10 as a generous estimate of the intermediate steps in an average pathway, then we get another 585 (i.e., 9 x 65) different small molecules to add to our total in the E. coli cells. So our final number of small molecules is about 650. Not too great a number to master. Most are known. We will get to know the majority of the end-products, the monomers, as well as a few of the intermediates.

We will continue our discussion of the molecules of E. coli by focusing on the polymers - the monomers will be considered in the context of the macromolecules of which they are a part.

A simple overview of the kinds of molecules in the cell, then, is (Handout):

















(POLYSACCHARIDES)
(Monomers are sugars; sugars are carbohydrates)

So let's go to our first macromolecule class, POLYSACCHARIDES: The MONOMERS here are SUGARS. Most common is glucose (also called dextrose). Let's look at the structure of this hexose (a sugar with 6 carbon atoms):

(Glucose)
Note the functional groups here: a carbonyl (aldehyde or ketone) and a bunch of hydroxyls. Is it hydrophilic or hydrophobic?  And so is it very soluble in water? (yes, like sucrose, table sugar). Note the numbering system, so we can talk about the various carbons in the chain. Numbering usually begins at the end closest to the carbon that has the least number of hydrogens or most oxygens. Sugars are carbohydrates, with a general formula of CnH2nOn; the term refers to carbon compounds with many hydroxyls and a carbonyl (C=O) group.

Compare the diagram drawn here with that in the middle of the glucose handout to note some organic chemistry shorthand.  Since carbon is so common in organic compounds and always takes four bonds, we can simply leave it out, with the understanding that a carbon atom is present at the vertex of 2 or more bonds. Similarly, we can adopt the convention of leaving out the hydrogens, which form only a single bond: thus a bond line with nothing appended to it means that there is a hydrogen there.


{Q&A}

(Ring formation)
In 3-dimensional space, a hexose chain can easily curl up, such that the oxygen attached to carbon 5 can be juxtaposed next to carbon 1.  A 6-membered ring forms preferentially in water, by attack of the hydroxyl of carbon-5 (C5) on the carbonyl double bond at C1. One bond of the carbonyl double bond opens up and forms a new bond between carbon-1 with the O of C5. The H leaves C5 and a new OH group is formed on carbon 1.  Follow along with the diagram on the glucose handout,  So a 6-membered ring is formed, with O as one of its members (one of the vertices).  One carbon (C6) is left sticking out away from the ring. Unlike most biochemical reactions, which require a catalyst to help them take place at a reasonable rate (more on this in a week or so), this intramolecular cyclization reaction takes place all on its own, as soon as a sugar is put into a water (aqueous) solution.  This reaction is rapid because the players can't help butkeep bumping into each other as the glucose chain dances in thermal motion. The ring structure can also open up, re-forming the straight chain.  The 2 forms are in a dynamic equilibrium, but because the ring form is more stable, this species predominates in water.


{Q&A}

(Anomers: alpha and beta glucose)
Now, when the O attached to C5 approaches the carbon C1 which has the carbonyl double bond, it can do so from one side or from the other side. Depending on which side is attacked, the resulting ring comes out looking different in 3-dimensional-space, because the OH formed from the carbonyl oxygen is oriented distinctively in the 2 cases. That is, the resulting ring can be of two different conformations in space.  The two conformations are formed at about equal frequencies.  The 2 conformations are called alpha and beta:

Alpha, where the C1 OH that is formed ends up BELOW* the C1 hydrogen,
or
Beta, where the C1 OH that is formed ends up ABOVE* the C1 hydrogen (see glucose handout, right side.  See also a picture [Purves 3.11]).

In sugars, carbonyl carbons that can switch the side of their hydroxyl groups when cyclized are called anomeric carbons, and the two resulting sugars (alpha and beta forms) are called anomers.  See sugars [Purves 3.11], and more sugars [Purves 3.12b][Purves 3.12a].


{Q&A} {Q&A}

(Chair form)
The ring is actually not flat, but puckered into a reclining chair-like shape, but hard to draw: (see flat vs. puckered)  - - -in this chair-view the hydrogens and the hydroxyls can be seen to be not really up or down, but are rather either axial (vertical, sticking up OR down) or equatorial (horizontal, sticking out).

Note in glucose all the hydroxyls are equatorial except that of the #1 carbon in the alpha conformation. In beta-glucose this - OH is upper, relative to the hydrogen, and in fact equatorial; but in alpha-glucose it is lower (relative to the hydrogen) and axial (and down).

The existence of these two seemingly very similar 3-dimensional structures for glucose can have important effects on the 3-dimensional structure of polysaccharides made from these glucose monomers, which in turn can determine the function of the polysaccharide, as we will see.

Glycosidic bonds)
As we consider a polymer built from glucose monomers, we can first consider a dimer. Two glucose monomers can be connected to form a DIMER. This connection, WHICH DOES NOT HAPPEN BY ITSELF (i.e., without some help from a catalyst), involves a dehydration, the removal of one molecule of water, from the 2 monomers:

2 monomers ----------------------> dimer

R-OH + R-OH  --------->  R-O-R  +  HOH

This type of reaction is also referred to as a CONDENSATION, as it condenses two molecules into one.

The resulting -C-O-C- bond is called a glycosidic bond when it is connecting two sugars.

Conversely, the breakdown of polymers back to their constituent monomers involves the reversal of this chemistry, the addition of water, or hydrolysis (the products = a hydrolysate).

R-O-R  + HOH ------>  R-OH  + R-OH

Both of these reactions require different catalysts in the cell in order to occur, which is generally true for all the biochemical reactions we will discuss.  See the Carbohydrates handout, below the line for a depiction of two dimers in the flat ring forms.  Note the 1-4 linkage (C6 sticks out of the ring, so that is one way to figure out the numbering in the ring). Although the bonds are presented as bent at right angles, they are not really so, it is just a way of presenting both sugar monomers right side up and still connect them with a glycosidic bond

There are several different hexoses in most cells. Fructose, galactose, and mannose are some common ones. Differences lie in the positions of the carbonyl along the chain and relative positions of the hydroxyls in space. Fructose has a ketone carbonyl at C2, and cyclizes to form a 5-membered ring (still with one member oxygen, of course, so 2 C's stick out from the ring (Carbohydrates handout).

And there are several common disaccharides (see Becker):

Glucose-glucose via a 1-4 alpha-link is maltose, where alpha refers to the state of the -OH in the monomer joined at its C1 carbon [Purves 3.13a]. Maltose is formed as you digest bread.


{Q&A}

Galactose + glucose [Purves 3.12] via a 1-4 beta-link is lactose (in milk) ,

Glucose + fructose [Purves 3.12] via a 1-2 alpha-beta link = sucrose (table sugar).

But these are not yet polymers, or macromolecules.

These dehydrations can continue in many cases in a repeated way to form chains that contains 1000's of monomers:

X--1,4--X--1,4--X--1,4--X--.........(where X represents a sugar ring)

To be sure you understand disaccharides, try Problem 1-8C and 1-9 D & E.

Starch and cellulose: function follows form)
A poly-glucose of this type is CELLULOSE, which contains exclusively glucose molecules in beta linkages The beta linkage results in has a pretty straight connection between the C1 and C4 of adjoining carbon atoms, since they both are equatorial and so are sticking out, as can be seen on handout 2-9, disaccharides in chair form. Thus a cellulose chain extends straight with its C6 OHs sticking out from the chain on either side. [Purves 3.14a1] Many cellulose molecules can then associate side by side (via hydrogen-bonds to each other) to form a fiber of great strength (e.g., in cotton, and it also contributes to rigidity of wood ) [Purves 3.14b] [TINKER TOY demo]. Cellulose is the most abundant carbon compound in the biosphere, accounting for about half of all such carbon.

If glucose molecules are put together with an alpha 1,4 link instead of beta, then a polymer of a different shape results. Here, the C1 -OH is axial whereas the C4 -OH in glucose is (always is) equatorial. The angle of this alpha 1,4 bond is such that the polymer bends at each glycosidic connecting bond, as can bee seen in handout 2-9, disaccharides in chair form.  As a result, it takes on a helical shape that again allows lots of hydrogen bonding between glucoses in each turn of the helix, thus stabilizing the polymer in this shape.  [TINKER TOY demo]. Such is the case with STARCH, which consists of alpha-glucose molecules joined in 1,4 linkages. In addition, starch has branches [Purves 3.14b] made by linking additional glucose molecules at the C6 OH of some of the glucose residues in the chain, via an alpha 1,6 bond). The branch continues with alpha 1,4 linkages (see Becker: Fig. 3-24). The length and frequency of the side chains give rise to the different forms of starch (potatoes, corn) or of a starch like polymer found in mammalian liver, GLYCOGEN (and see  [Purves 3.14a2] . These polymers act as storage forms for glucose. When glucose is needed, they can be hydrolyzed (adding water back to the bond between the monomers) to regenerate the free monomer.  Glycogen is more highly branched than starch, and its breakdown from the many ends so produced leads to rapid mobilization of the glucose moieties within it, a property more important in animals than plants.   {Q&A}.

Here is our first good example of an important theme in biochemistry, the relationship between structure and function at the molecular level. The straight linear structure of cellulose made possible by the beta-linkages allows the assembly of thousands of aligned molecules to produce a cellulose fiber of great tensile strength. The alpha-linkage in starch produces a compact structure, not strong, which serves as a storehouse of glucose for energy when needed.

Your texts have additional examples of important polysaccharides. Some of the sugars have nitrogen-containing groups appended to the basic carbohydrate ring. The rigid bacterial cell wall is another example, like cellulose, of a polysaccharide used for structural support. So is the shell, or exoskeleton, of insects (CHITIN) [Purves 3.15c].

To go over the structure of polysaccharides, try problem 1-11. If you need more review, try 1-25.

The PowerPoint for this lecture has several additional diagrams that you may find useful.



(LIPIDS: Soluble in organic solvents)
LIPIDS: This is a more heterogeneous group, being defined as substances in a cell that are extractable in organic solvents. Non-polar compounds are not soluble in water, as they tend to coalesce. But they ARE soluble in non-polar solvents such as benzene (a hydrocarbon - compounds made up of just hydrogen and carbon atoms, like the octane molecule we considered earlier). So lipids are molecules that have extensive non-polar regions.

(Steroids)
Steroids such as cholesterol and testosterone have multiple hydrocarbon rings, and are in this category  [Purves 3.24] (see Becker: p.72). Note the drawing conventions, with further shorthand: the depiction (not) of C's and H's. C is assumed to always have 4 bonds; unless otherwise specified, C's are assumed to be present at the vertices on drawn bonds; bonds from such C's that are not shown are assumed to be to H, to make a total of 4.  Almost no atoms are named, yet the structure is completely defined.

Steroids are small molecules that are not monomers, they do not become connected to form polymers.  Cholesterol is a steroid that is a component of the cell membrane, which we discuss in a few minutes.  Steroids such as testosterone, estrogen, cortisone, and vitamin D are hormones, compounds that circulate in the blood to send signals from cells in one part of the body into cells in another region. You will learn more about steroids in the physiology section in the second semester.

(Fats: Fatty acids and glycerol as monomers)
A major class of lipids are the fatty acids, long straight chain hydrocarbons with a carboxyl group (carboxylic acid) on one end.  See [Purves 3.19], and another picture. {Q&A}.



(Esters; fats vs. oils; saturated vs. unsaturated fats)
Inside cells, fatty acids (FA) are usually connected to a molecule of the tri-hydroxy (tri-alcohol) compound glycerol. Once again water is removed, this time producing an ester bond (acid + alcohol, see top right corner of lipids handout). If all 3 OH 's on the glycerol are substituted with FA's, then we have a triglyceride. See [Purves 3.19], and another picture.  This is fat. Fats are very hydrophobic and are practically insoluble in water. You can also have mono- or di-substituted glycerol. Fats differ according to the exact nature of the FA's that are present. "Saturated" fats have -CH2- (methylene) groups, usually 18-20 of them, along the chain. They are saturated with hydrogens, compared to the unsaturated variety. The latter may have a double bond or two within the chain, and thus have less H's (unsaturated for H's). The presence of the double bond puts a crimp into the structure, since unlike single C-C bonds, there is no rotation about C=C double bonds) [Purves 3.20].  As a result, it is more difficult for the unsaturated fatty acid molecules to associate.

Actually, there are 2 ways a double bond can form in a fatty acid, called cis and trans.  In the cis case, the two hydrogens are on the same side of the double bond (remember there is no rotation, so their position is fixed). Now the two bonds carrying the rest of the carbon atoms are also together on one side of the double bond, so the molecule is crimped, with a severe angle between the two hydrocarbon stretches. In the trans case, the two hydrocarbon stretches are on opposite sides of the double bond, and the overall chain is straighter.  Most fatty acids in animals are saturated; with their relatively straight chains their hydrocarbon chains are free to associate with each other with no constraints and they aggregate into solid fat. Plants contain a lot of unsaturated fatty acids of the cis type. These unsaturated fats (WITH the double bonds) are usually liquids (oils), as their crooked fatty acid chains cannot approach each other so easily.  Take vegetable oil (unsaturated), and add hydrogen across the double bonds and you get Crisco, or the creamy texture in peanut butter (read the label: hydrogenated).

Trans fatty acids do occur made by bacteria in the stomachs of ruminants like cattle, so they end up in beef to some extent.  A much greater source of trans unsaturated fatty acids comes from the chemical hydrogenation of oils, where they are formed somewhat ironically as a by-product of the hydrogenation process.  The trans unsaturated fats resist turning rancid, so are favored by the food industry.  However, they are more equivalent to saturated fatty acids in their ability to form solid fat, which encourages the formation of atherosclerotic plaques.  Thus margarine may be as bad for you as butter.



So here again as in the case of polysaccharides, the 3-dimensional structure of the molecule has a lot to do with its physical properties.

Fats are a good example of hydrophobic forces at work. Just think of a fatty chicken soup with those globules of fat floating on top, out of solution.

Fats serve as a storage form of energy. That is, like glycogen or starch, fats can be broken down and used for energy metabolism, as we will see later. Fats are stored in cells called adipocytes.

(Phospholipids, phosphoesters, phosphatidylcholine)
There is a special class of lipids that are related to the fats, but with a significant difference. These are the phospholipids, an example of which is shown in the middle of the LIPIDS handout. Two of the glycerol hydroxyls are connected to long chain fatty acids, but the third is connected to quite a different group, a phosphate. Phosphoric acid (H3PO4) is an acid, The -OH groups attached to the phosphorous easily lose hydrogens at neutral pH.  Phosphoric acid has 3 acidic hydrogens. [If you are shaky on pH, ask to review it in recitation section.]

Phosphoric acid is a strong acid, losing most of its hydrogen ions at pH7.  The ion that is formed is called phosphate, and we will treat the 2 names equivalently, considering them both acids (referring to their origin as the acid).  Similarly we will use carboxylic acid and the carboxylate ion (the negatively charged unprotonated form) synonymously in most situations.

The phosphate group is connected to a glycerol hydroxyl, again by a dehydration that forms an ester (acid + alcohol). Whereas up until now we had a carboxylic acid ester linking the fatty acid to the glycerol, here we have a phospho-ester. In both cases the ester is formed by an alcohol linked to an acid.  After linkage, the phosphate group is is still charged, as shown. The rest of the phosphate may be free, as in a phosphatidic acid, or it may be esterified to yet another alcohol via another of its acidic groups; a common one is ethanolamine: HO-CH2-CH2-NH3+.  The resulting phospholipid would be called phosphatidyl-ethanolamine.

(Phospholipid bilayer: membranes)

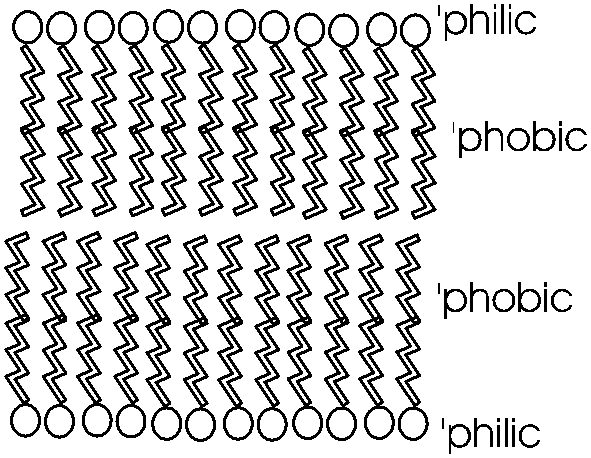

Phosphatidyl-ethanolamine is a compound that is highly hydrophobic throughout most of the molecule, but then has a highly polar group at one end, with two complete, if opposite, charges. A further derivative has 3 methyl (-CH3) groups bonded to the nitrogen instead of H's. This moiety is choline (tri-methyl-ethanolamine); the nitrogen retains its positive charge. When esterified to a diglyceride one gets phosphatidyl choline, depicted in [Purves 3.21]. The polar end can interact strongly with water (it is hydrophilic), while the remainder of the molecule wants to come out of aqueous solution. This is a confused molecule. What happens is that the hydrophobic parts all line up with each other to minimize their interface with water (both side-to-side and end-to-end), while the charged ends remain in contact with water. See [Purves 3.22], and photo. It is in this way that biological membranes form, as a phospholipid bilayer, the charged ends of the double layer being on the outside in contact with water, with the cytoplasm on one side and the exterior of the cell on the other side:  See picture.

Such a bilayer presents a permeability barrier to water-soluble compounds, which cannot pass through the hydrophobic barrier. Special protein structures that are embedded in this membrane are then necessary to allow the passage of water soluble compounds in and out of the cell. These are the channels and pumps mentioned earlier.  See a diagram of a cell membrane at [Purves 5.1].

To review phospholipid structure, try problems 1-12 & 1-13.

Large amounts of cholesterol are embedded in the membranes of animal cells.  The cholesterol is kept inside by hydrophobic forces.  It acts to plug spaces that could cause leakiness, to impart more strength, and to prevent too much association of the saturated fatty acids at low temperature (i.e., "freezing" of the membrane into fat).

The texts have nice diagrams of all this.

Lipids are impressive in their variety (see picture) and especially in membrane formation, but admittedly they are not really good examples of the linear biopolymers that we defined. But they have to go somewhere, and so they are stuck amongst the macromolecules.
