The IBM 360/91

The IBM System 360 Model 91 was the world's biggest, fastest, and most powerful computer in the mid-to-late 1960s. Columbia's 360/91 was installed in 1968 and was just coming to life around the time of the 1968 student uprising and remained in operation at Columbia until November 1980. This page is mainly just a photo gallery; read more about Columbia's 360/91 in the March 1969 entry of the main CU computing history page.

IBM 360/91

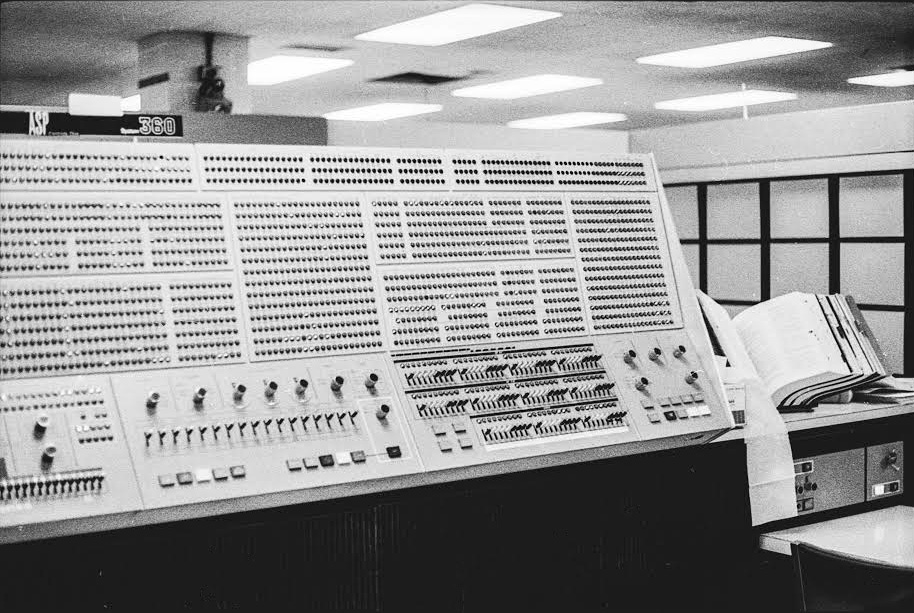

The control console of Columbia's IBM 360/91 in 1971, Computer Center machine room. Photo: Steve Bellovin.


IBM 360/91
Photo: Columbia University Adminstrative Information Systems archive.
Installation of the IBM 360/91 in the Columbia Computer Center machine room in February or March 1969.


IBM 360/91 in operation at Columbia

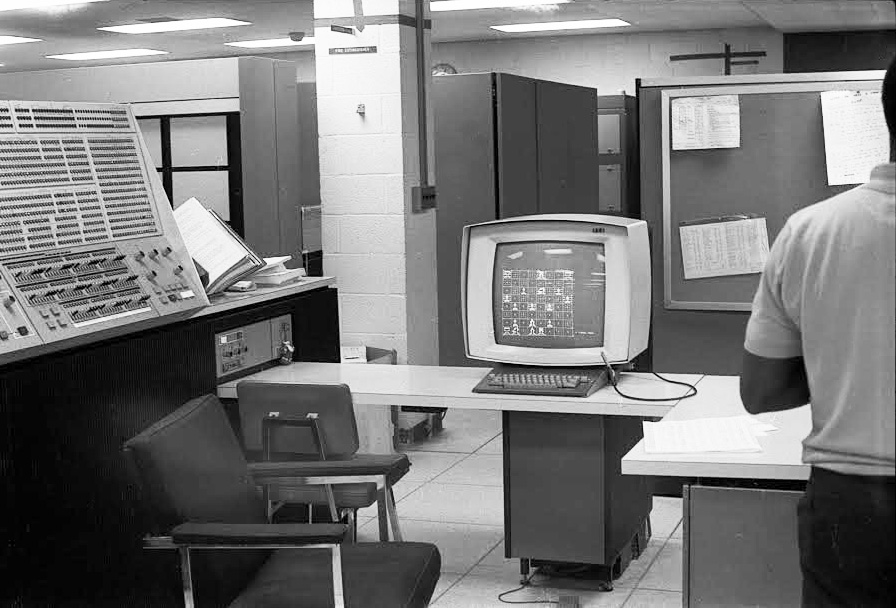

Photo: Steve Bellovin. Columbia 360/91 console and 2250 Display Unit.
IBM 360/91 in operation at Columbia

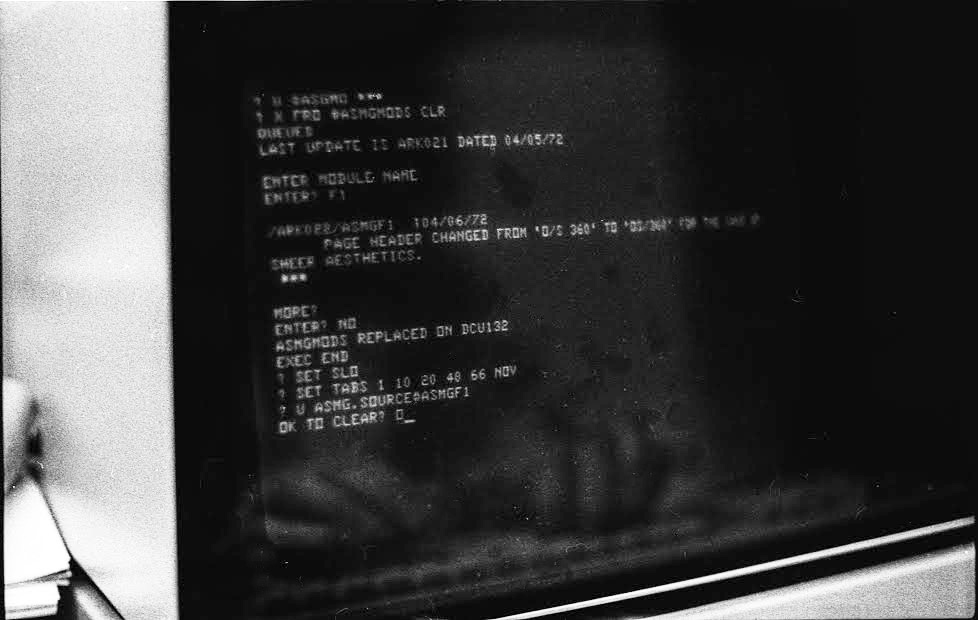

Photo: Steve Bellovin. CU 360/91 Hazeltine 2000 ASP control terminal, 1972 (ASP = Attached Support Processor).


IBM 360/91 in operation at Columbia
Luis Ortega at Columbia's 360/91 console in 1971. Photo: [42].


IBM 360/91 at NASA Greenbelt From the IBM Photo Archive: "This wide-angle view of the multiple control consoles of the IBM System/360 Model 91 shows the nerve center of the fastest, most powerful computer in operation in January 1968. It was located at NASA's Space Flight Center in Greenbelt, Md."

SACC label
Click to see configuration diagram

NASA Greenbelt Manual 1975
Left: The NASA-Goddard Space Flight Center Science and Applications Computing Center User's Guide, Greenbelt Maryland, December 1975. About 300 pages, weight: about 3 pounds. Contributed by Karl Ginter, who worked there in the 1970s. The table of contents alone is 11 pages long. The bulk of the manual is devoted to programming and software: the OS/MVT operating system, Job Control Language, Catalogued Procedures (i.e. installed software packages) such as Algol, Assembler, Fortran, Formac, GPSS, PL/I, Sort/Merge, Spitbol... This system is identical to ours at Columbia: a coupled 360/91/75. Click the label above to see a diagram of the NASA system Like ours, it probably took up about an acre of floorspace.


From the IBM History Website:

The IBM System/360 Model 91 was introduced in 1966 as the fastest, most powerful computer then in use. It was specifically designed to handle high-speed data processing for scientific applications such as space exploration, theoretical astronomy, subatomic physics and global weather forecasting. IBM estimated that each day in use, the Model 91 would solve more than 1,000 problems involving about 200 billion calculations.

The system's immense computing power resulted from a combination of several key factors, including advanced circuits that switched in billionths of a second, high-density circuit packaging techniques and a high degree of "concurrency," or parallel operations.

To users of the time, the Model 91 was functionally the same as other large-scale System/360s. It ran under Operating System/360 -- a powerful programming package of approximately 1.5 million instructions that enabled the system to operate with virtually no manual intervention. However, the internal organization of the Model 91 was the most advanced of any System/360.

Within the central processing unit (CPU), there were five highly autonomous execution units which allowed the machine to overlap operations and process many instructions simultaneously. The five units were processor storage, storage bus control, instruction processor, fixed-point processor and floating-point processor. Not only could these units operate concurrently, they could also perform several functions at the same time.

Because of this concurrency, the effective time to execute instructions and process information was reduced significantly.

The Model 91 CPU cycle time (the time it takes to perform a basic processing instruction) was 60 nanoseconds. Its memory cycle time (the time it takes to fetch and store eight bytes of data in parallel) was 780 nanoseconds. A Model 91 installed at the U.S. National Aeronautics & Space Administration (NASA) operated with 2,097,152 bytes of main memory interleaved 16 ways. Model 91s could accommodate up to 6,291,496 bytes of main storage.

With a maximum rate of 16.6-million additions a second, NASA's machine had up to 50 times the arithmetic capability of the IBM 7090.

In addition to main memory, NASA's Model 91 could store over 300 million characters in two IBM 2301 drum and IBM 2314 direct access storage units. It also had 12 IBM 2402 magnetic tape units for data analysis applications, such as the processing of meteorological information relayed from satellites. Three IBM 1403 printers gave the system a 3,300-line a minute printing capability. Punched card input/output was provided through an IBM 2540 card read punch.

The console from a Model 91 has been preserved in the IBM Collection of Historical Computers, and is exhibited today in the IBM Technology Gallery in the company's corporate headquarters in Armonk, N.Y.

The console of Columbia University's 360/91 is in storage at the Computer History Museum, 1401 N. Shoreline Blvd, Mountain View, California.


Here's an excellent photo of the 360/91 console and 2250 display, just like ours at Columbia, but this is not Columbia (I believe it is NASA because I found a thumbnail of the same picture HERE). See how the console dwarfs the puny humans.

IBM 360/91 at NASA

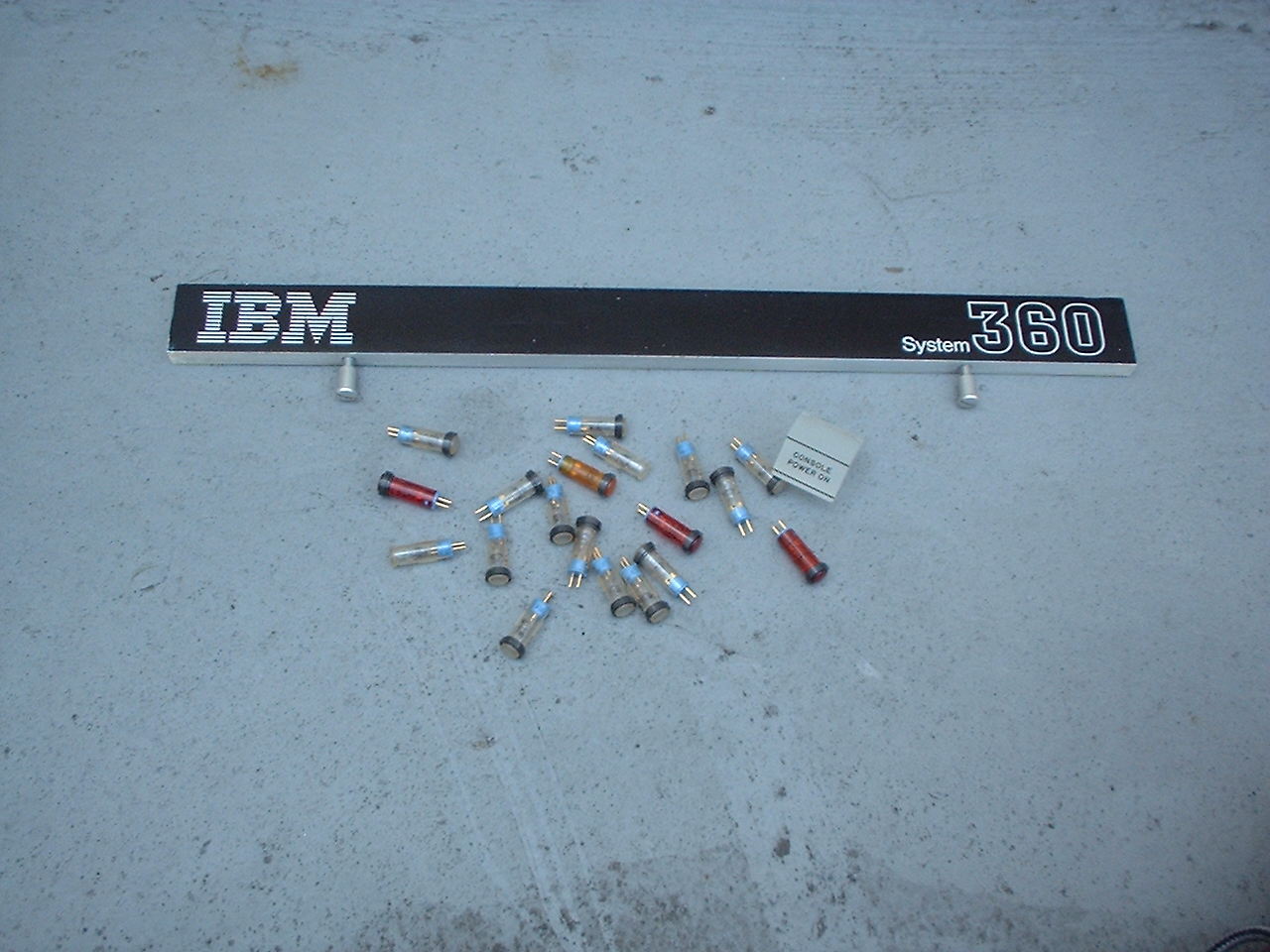

Here's a May 2003 shot of the last remnants of our 360/91 — the console nameplate (visible in the Luis Ortega photo above), the console power switch, and assorted lamps, shown just before they were sent to the new Computer History Museum to be reuinited with the rest of our 360/91 console.

Columbia IBM 360/91 control panel at Computer History Museum


Semifinally, here's a shot of Columbia's 360/91 control panel in "deep storage" in the Computer Museum's Moffet Field facility, before relocating to Mountain View in June 2003:

IBM 360/91 control panel at Paul Allen's Living Computer Museum

And finally, look what I found on Mayday 2015 at Paul Allen's Living Computer Museum (formerly PDP Planet):

360/91 console at the Living Computer Museum

Amazing. Look: lights! It was referenced from this page (don't count on the link lasting for any amount of time).

Bonus photo:

IBM 360 core
IBM core memory
