Kermit 95 Screen Shots

As of: Kermit 95 1.1.21, 2 April 2002

This page is still to be updated to K95 2.0.

Shot 1 - Overview

Screen Shot 1 gives you a good overview of Kermit 95 (K-95 for short). You can see the K-95 Dialer in the upper left; it has just made a Telnet connection to a colorful BBS called FedWorld. It also has another connection open to a second computer called Watsol: the white-on-blue screen under the Dialer. Meanwhile the user is checking the Terminal settings of the FedWorld Dialer entry. The Dialer can make as many simultaneous connections as you like, within the limits of your computer's resources. The BBS screen demonstrates K95's color and ANSI graphics capabilities; the Watsol screen shows various forms of highlighting, in particular the automatic highlighting of URLs (Web addresses); if you Ctrl-click on one of these, it pops up in your Web browser. As you can see, each connection can have any color scheme you like.

Screen shot
(Click to view full-size image)

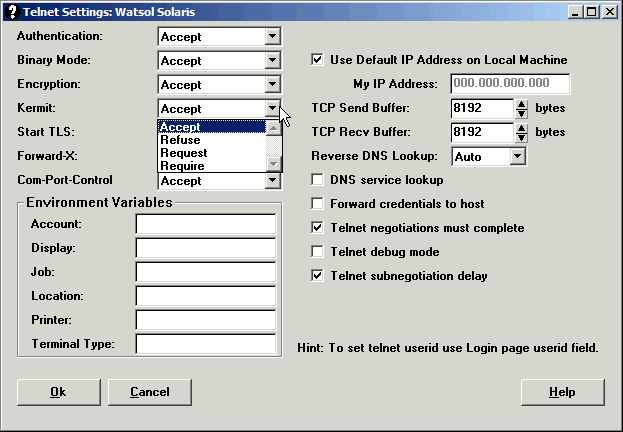

Shot 2 - The Telnet Settings Page

Shot 2 shows the Telnet settings page for a Dialer entry. Each entry has its own set of settings pages: General, Terminal, File Transfer, etc, plus pages specific to the connection type: Serial, Telnet, SSH, Kerberos, SSL/TLS. Thus each entry can have a different emulation, character size, character set, screen size, coloration, and so on. All these settings are applied automatically as part of the connection process. These pages give you fully customized one-button access to every dialup and Internet service or computer that you use.

Screen shot

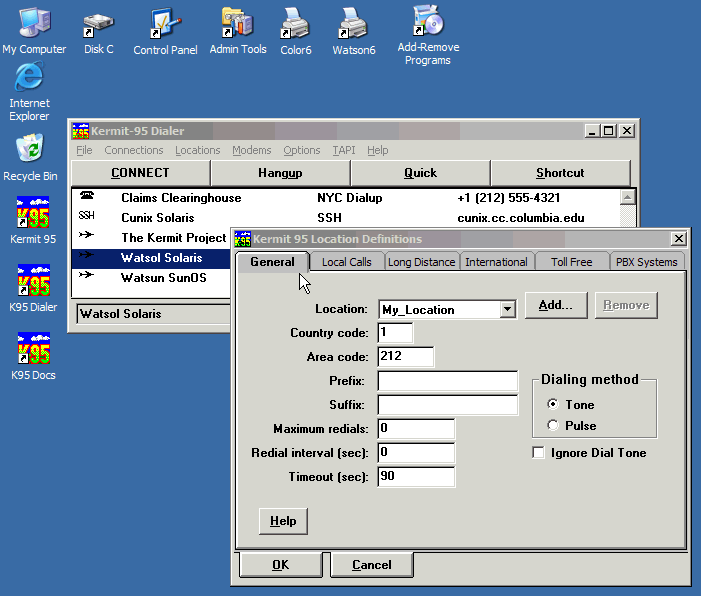

Shot 3 - Setting your Dialing Location

Shot 3 shows how you can give K-95 the information it needs to place your calls correctly, no matter where you are. You don't have to use any of these features if you always make your calls from the same place, but if you travel around with a laptop, you'll be amazed at the convenience. Just tell Kermit 95 (or Windows) your new location, and all the numbers in the dialing directory will "just work".

Screen shot

Shot 4 - The Keyboard Page

Frequently Asked Questions Department: "When I press the Backspace key, it doesn't erase the character -- instead it just prints ^H." The explanation can be found in the Kermit FAQ. Briefly, different computers or services require different codes for backspacing, so you have to assign the appropriate code to your PC's Backspace key. This is easy in Kermit 95. Each computer or host in your directory has its own key settings, specified on the Keyboard page of its settings notebook, as shown in Shot 4. To solve the Backspace problem, just push the appropriate button. As you can see, you can also load in an entire custom key map for your whole keyboard if you want to (the sample shows the Key map for host-based WordPerfect 5.1, which is distributed with Kermit 95).

Screen shot

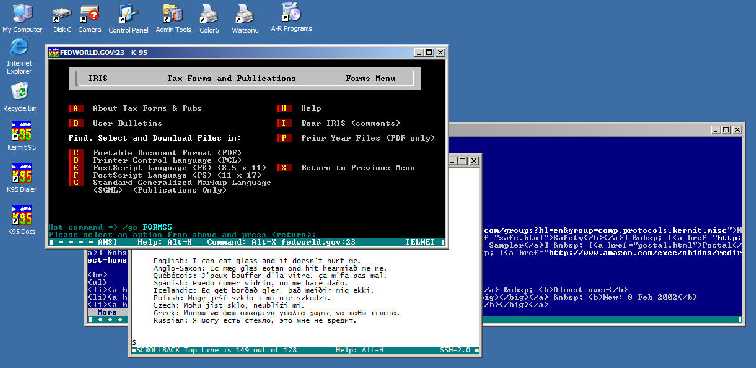

Shot 5 - Terminal Screens

Here we see a Windows XP desktop with several K95 terminal sessions active: Top-left foreground: a Telnet session to US government BBS using ANSI terminal emulation; the black-on-white screen is an SSH session to a Unix host showing some of K95's character-set capabilities; behind those two is a 132-column white-on-blue screen containing the HTML source code for a web page. In the latter, notice the automatic highlighting of URLs. Of course a great variety of sizes, color combinations, character sets, and highlighting is available.

Screen shot
(Click to view a full-size image)

Gallery - Terminal Screens

Here's a gallery of K95 terminal screens, captured from K95 1.1.21 on Windows XP. This is the console version of K95, not the coming-soon GUI version. Click on any screen to see the full-size image. All screens are 24x80, but of course K95 can also handle tall or wide screens. A few of the many user-selectable fore- and background color combinations are shown.

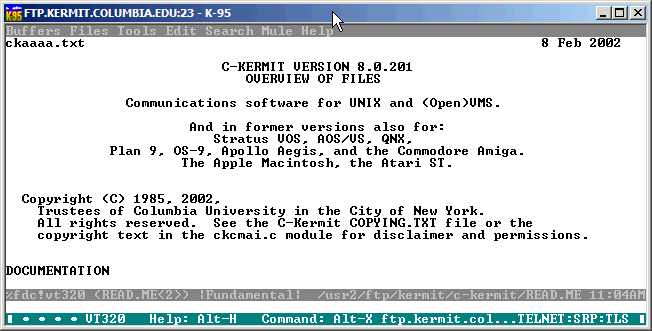

Many people prefer their terminal screens in black on white, like printed paper. This color scheme, like any other, is selectable in the Terminal Settings page of each Dialer entry, or with K95's SET TERMINAL COLOR TERMINAL foreground background command.
This was one of the nicer BBS graphics we ran across in the early days of K95, the Metropolis BBS in St Louis (the same picture was used with permission on the back cover of the original K95 manual). The emulation is ANSI.
This screen shows how K95's VT320 emulator, by following the VT220/320 specification and the ISO 4873 and 2022 standards, can show ASCII, ISO 8859-1 accented letters, and line- and box-drawing characters on the same screen.
This shot illustrates URL highlighting. URLs are included in a plain-text e-mail message. K95 highlights them automatically. If you Ctrl-Click on a URL, K95 tells your browser to visit it. Note the first URL, even though it is longer than the screen width and has wrapped to a second line, is still recognized as a valid URL. Ctrl-Clicking on wrapped URLs works too.
This picture shows what happens when the message from the previous screen shot is loaded into the full-screen EMACS editor while K95's terminal emulator is in debug mode. Control characters are shown in red (for example, ESC is the same as Ctrl-[, so a red left bracket is an ESC). Printable characters that are part of escape sequences are shown in reverse video. Use Alt-D to toggle debug mode.
This screen illustrates K95's color palette. Console applications are restricted to 16 colors, which correspond to the ANSI-format coloration escape sequences used by BBSs (first screen above), Linux "color ls", etc.
This is an IBM mainframe 3270 VM/CMS login screen from Temple University. K95 does not yet include 3270 terminal emulation, but it is still widely used to access IBM mainframes through external 3270 emulators such as the Unix tn3270 program and various terminal servers.
This is an ancient Heath-19 terminal "graphics" demo. It looks a bit rough in Lucida Console, but that's only because Lucida Console does not contain the Heath-19 special graphics characters that were added in Unicode version 3.1, and will take some time to find their way into Unicode fonts such as Lucida Console and Courier New. Meanwhile, K95 is smart enough to make the appropriate substitutions.
