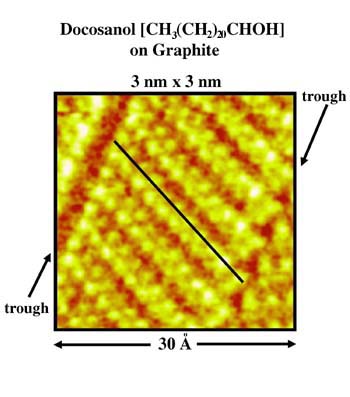

Left A 3nm x 3nm image of docosanol taken at the
liquid-solid interface on graphite. The black bar is
superimposed over one molecular length, measured to be 3.0
+ 0.2nm. The left-hand trough (marked in the
image)
signifies the alcohol group, which show up slightly
darker relative to the rest of the hydrocarbon chain.
The individual bright (yellow) spots along the molecular
axis depict individual hydrogen atoms. You can actually
count them and get 22 hydrogens per molecule (only one
hydrogen per carbon is visible to the STM since the second
hydrogen on each carbon is pointing down into the graphite
and therefore not seen in the image).
|
