IBM Reproducing / Summary Punches

IBM 513
Type 513
IBM 514
Type 514
IBM 519
IBM 519
IBM 526
IBM 526

The class of machines variously called Reproducing Punches, Summary Punches, Gang Punches, and/or Document Originating Machines included the IBM 513 (date unknown) and 514 (1945) Reproducing Punches, the Type 516 (1932, intended as a Summary Punch for the 285), the IBM 519 Document Originating Machine (1946) (CLICK on any image to magnify), and the IBM 526 Printing Summary Punch. These machines performed a variety of tasks, according to the wiring of their control panels:

Reproducing Copying all or selected information from one deck of cards to another deck of cards, possibly rearranging the fields.
Gang Punching Copying information from one input card to many output cards.
End Printing For example, of sequence numbers.
Verification Of reproducing and gang punching results.
Summary Punching Punching into a total or new balance card sums accumulated in an attached accounting machine such as the 403 (shown below) or 405 or 407.
Mark Sensing Reading pencil marks from IBM cards and translating them into punches (optional feature).

IBM 403 and 514

IBM Type 403 Accounting Machine with Type 514 Summary Punch

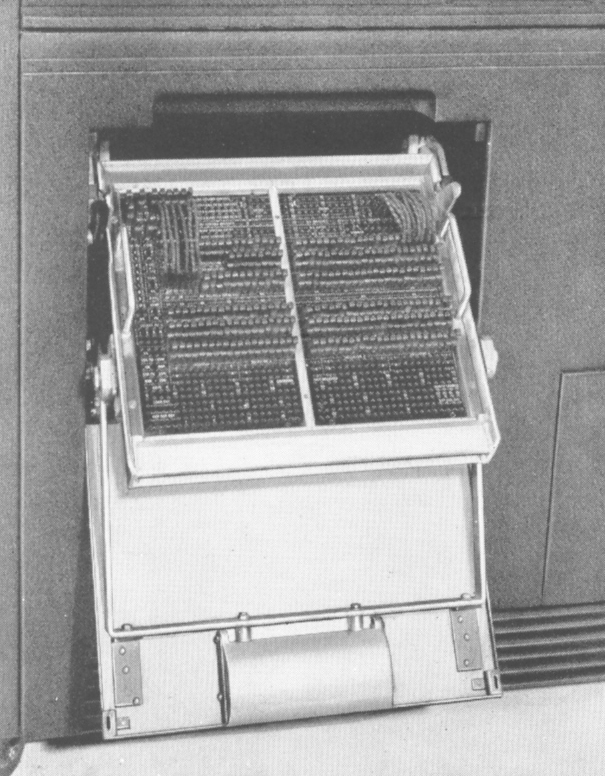

512 control panel
Control panel
Result decks did not have holes interpreted by printed characters across the top; that was the work of another machine called an Interpreter. All operations in the 513, 514, and 519 except summary punching are performed at 100 cards per minute.

The 526 is a unique hybrid: it's an 026 Card Punch and Summary Punch and Interpreter combined. It's slower than a dedicated Summary Punch (18 columns per second = 15 cards per minute) but it prints as it punches and it doubles as a key punch.

Also See:
    Tabulators, Sorters, Key Punches, Collators, Interpreters, Calculators.
