NSF Career: Intelligent Flexible Robots for Safe Manipulation of Anatomy Abstract: Current medical robotics systems use non-intelligent surgical manipulators that place the entire burden on surgeons for safeguarding against damage to the anatomy. The emergence of new surgical paradigms, such as Natural Orifice Endoscopic Trans-luminal Surgery (NOTES), requires surgical robots that are capable of supporting safe interaction with the anatomy while accessing deep surgical sites through often long natural access pathways. This requires new types of robots capable of safeguarding against damage to the anatomy by acting as intelligent intervention and information gathering tools for assisting surgeons during increasingly complex procedures. The objective of this research is to provide the theoretical foundation for modeling and control of flexible robots for intelligent and safe interaction with the anatomy. Intelligence refers to the ability of these robots to gauge their force interaction with the anatomy, gather information about the anatomy, and act based on this information. Screw theory and stochastic estimation methods are used for modeling the ability of these robots to estimate their wrench interaction with the anatomy by using intrinsic and extrinsic sources of information. These performance measures are used in hybrid force control algorithms that allow characterizing shape, stiffness, and anatomical constraints governing safe maneuvering of suspended organs. The outcomes of this research will allow the development of radically new technologies for newly emerging surgical paradigms (e.g. NOTES). This research will also advance the field robotics by addressing control and resolution of multi-point contact problems along flexible robots for compliant insertion control and bracing against soft environments. Scope: Figure 1 shows the two main thrusts of this reserach project. Thrust 1 focuses on three sub-areas of modeling, control, and interaction with flexible environments. Thrust 2 focuses on developing curriculum and educational outreach for the commmunity. On the right, the figure shows the areas of medical robotics that are likely to be advanced as a result of our ongoing reserach. Figure 1: the two Major Thrusts of this NSF CAREER proposal Figure 2 shows samples of the robot architectures considered in our reserach. These robots have been previously demonstrated for clinical applications requiring small size and dexterity. Our aim in this NSF career award is to answer questions about design, control, and models for force sensing and intelligent interaction with the environment while focusing on derivatives of this design and designs of parallel robots. Figure 2: Examples of multi-segment flexible robot for surgery (A) a multi-segment robot, Some of the Ongoing Reserach Activity: A) Modeling and Optimal Design One aspect of our reserach is finding design formalisms and modeling frameworks for continuum robots and flexible parallel robots. Figure 3 shows sample simulation of the reachable workspace of a three-segment snake robot where the end effector is maintained at a cosntant orientation. Questions of optimal dimensional anslysis, singularity, force sensing, kinematic attributes and perforamcne measures are being explored as part of this reserach. Figure 3: Example of a constant-orientation reachable workspace of a 3-segment continuum robot B) Intrinsic Force Sensing We previously investigated the capabilities of multi-backbone continuum robots to also act as sensors. Figure 4 shows a single segment snake robot palpating a silicone strip with embedded steel balls. It was shown in this work that a) there is a way to interpret the force sensing limitations of single segment snake robots using screw theory b) these robots can be very good sensors, b) we can use these robots to probe flexible media unknown environments for stiffness information and to localize tumors. Figure 1 shows some representative results. Figure 4: Investigation of the intrinsic force sensing capabilities of multi-backbone continuum robots: (A) an interpretation of the sensible wrenches using a single segment snake robot. (B) A single segment robot probing a silicone strip with embedded steel balls. (C) A map of resulting sensed stiffness allows the robot to localize the mockup tumors (steel balls). Our group has been extending the proff-of concept results in figure 3 to provide full capabilities of estimating the forces and moments of interaction with the environment by using more dexterous snakes that have two or more segments. Movie 1 demosntrates some of the work being done by our group on enabling intrinsic force sensing using continuum robots for exploration of stiffness of organs. The movie shows a three-segment snake robot "probing" an anatomical training model of the prostate and the resulting stiffness image of the process shows the hard nodule inside the prostate as shown in red. Note that you might have to allow permission to enable Windows Media player plugin to run under Firefox or Internet Explorer. For Firefox you should install the Windows Media Player Plugin available from http://port25.technet.com/pages/windows-media-player-firefox-plugin-download.aspx

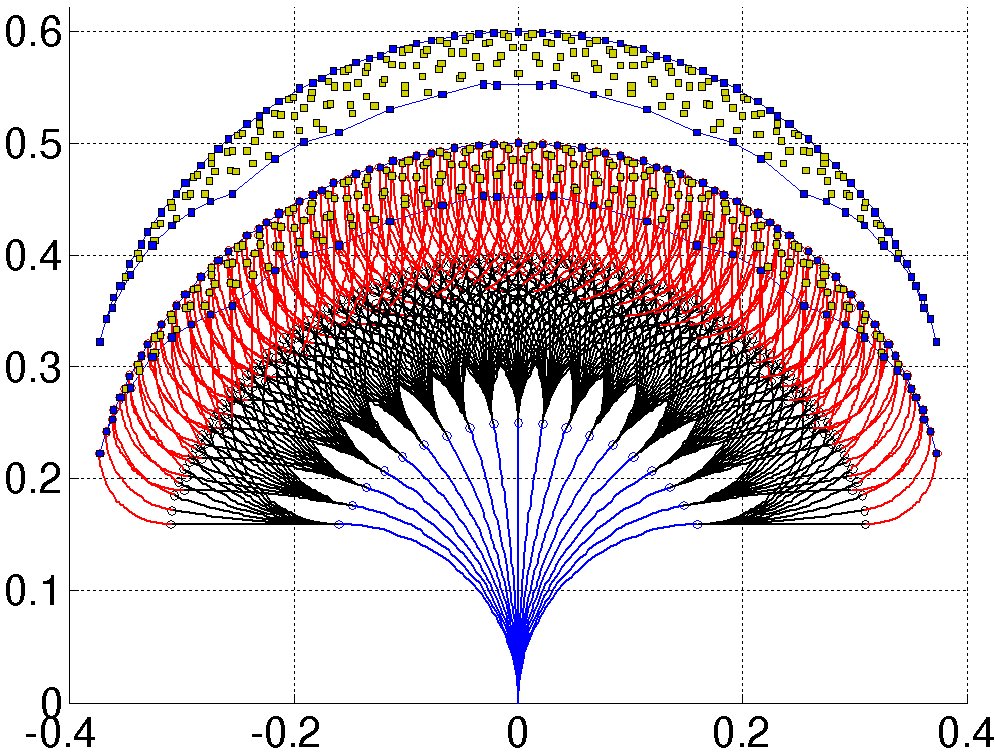

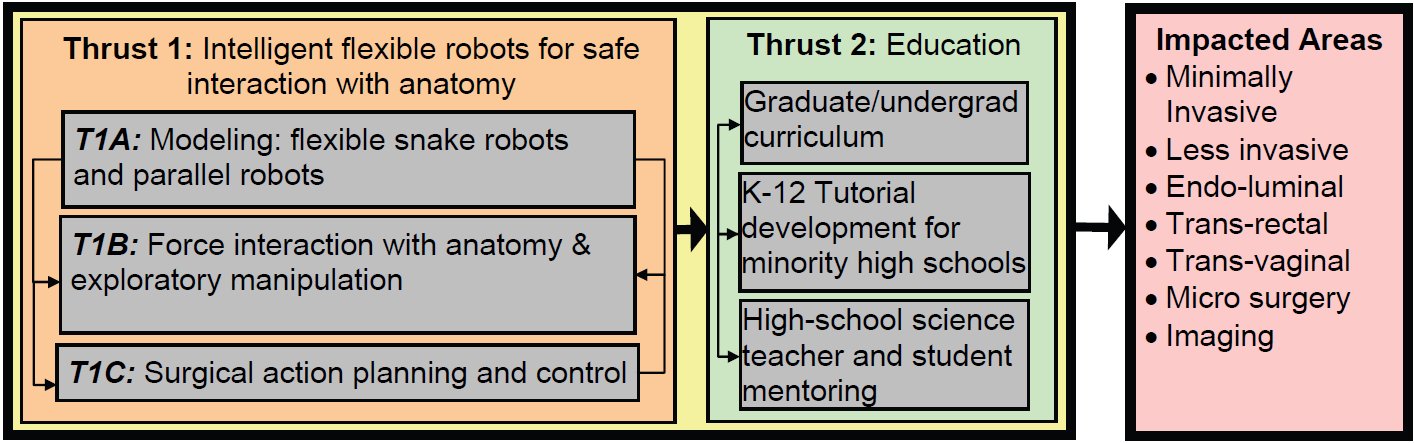

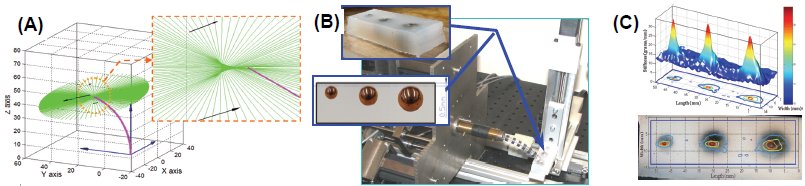

Movie 1 : A demonstration of a multi-segment snake palpating the surface of a training anatomical model of the prostate C) Exploration Our eventual aim is to enable exploration and safe interaction with flexible unknown anatomy. We are investigating new algorithms for exploring both shape and stiffness of flexible organs. This is a first stage of enabling intelligence by enabling robots to autonomously gather infomration about their environment. Figure 5 shows such an experimental setup where a Cartesian robot equipped with a 6-axis load cell is probing a mockup silicone model for infomation about stiffness. Our eventual goal is to enable this operation for snakes as in figure 4 and movie 1. Figure 5: the two Major Thrusts of this NSF CAREER proposal D) Control Our reserach on control of these robots is focused on making strides in improving the performance of flexible robots and in supporting modalities of shared control with the surgeons whereby both the surgeon and an intelligent slave robot cooperate in performing surgical tasks. We would like to investigate new control strategies that use the intrinsic force sensing for imnproved accuracy and safety of interaction and for simplified telemanipulation. E) Education Our mission is to be able to translate the results of our reserach into new curriculum and new activities that engage various segments of the community as shown in Figure 1. Scientists often forget about the value of seeing the shine in the curious eyes of a young high school kid who is fascinated by what science and engineering means and how it may affect their life in so many ways he never appreciated before. We are actively seeking collaborations with local high schools for mentoring high-school students during the school year and during the summer. We also mentor science teachers on how to translate some of our reserach into high-school curriculum.
Figure 6: Sample outreach activity providing local NY middle school kids with hands-on
|
|
